30w Maxphotonics Fiber Laser Marking Machine EZCAD Software 1064nm For Metal
Maxphotonics 30w laser marking machine for metal marking and engraving
Machine features

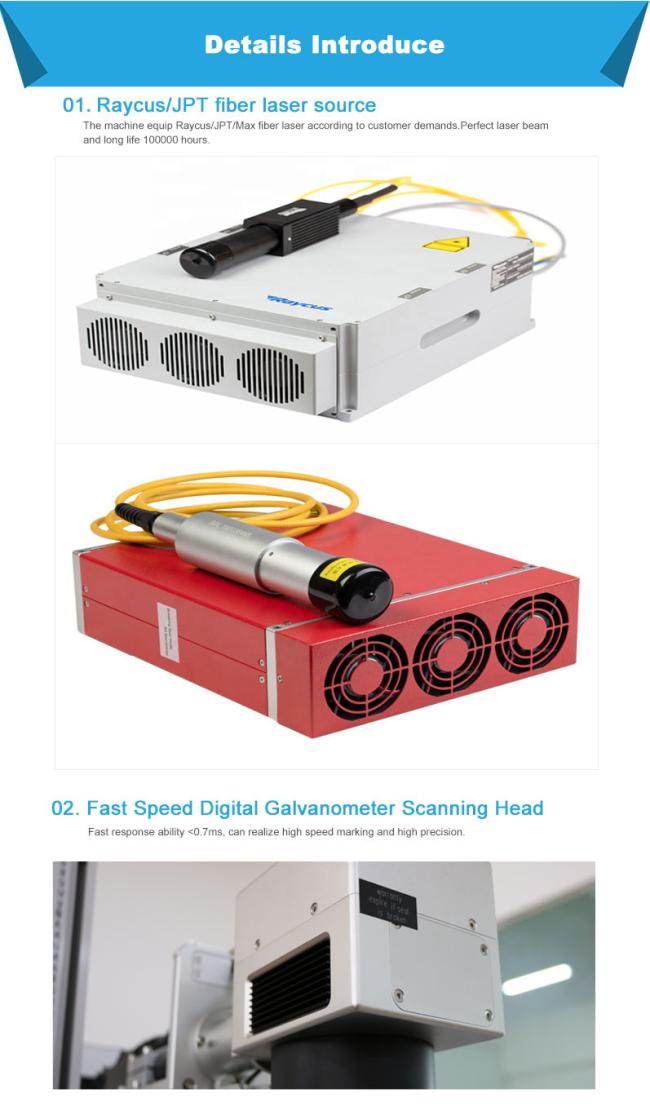

- Genuine Maxphotonics /RAYCUS / JPT / IPG laser source
- Chinese No.1 brand SINO-GALVO high speed galvanometer scanning head
- Double red light indicator, dot + line ,more easier to adjust the focus
- Special design internal structure and wires, to eliminate the potential safety risk
Machine technical data
| Parameter table | |||
| Main Parameters | Power | 20w/30w/50w | |
| Laser brand | Raycus brand | ||
| Marking Area | 110*110/150*150/200*200mm/300*300mm | ||
| Galvanometer | Sino-Galvanometer SG7110 | ||
| Main performance parameters | Marking Speed | 7000mm/s | |
| Marking Depth | ≤0.5mm | ||
| Minimum Line Width | 0.012mm | ||
| Minimum Character | 0.15mm | ||
| Repeated Precision | ±0.003mm | ||
| Focus Spot Diameter | <0.01mm | ||
| Life-span of Fiber Laser Module | 100 000hours | ||
| System Operation | Windows XP / W7--32/64bits / W8--32/64bits | ||
| Work Environment | Cooling Mode | Air cooling--Built-in | |
| Voltage | 220V or 110V | ||
| Communication Interface | USB | ||
| Other specification | Package Dimension | 780mm x 420mm x 770mm | |
| Gross weight | 56kg | ||
Application
FAQ
Q1: How can I get the best machine for me?
A1: You can tell us your work materials through pictures or videos, detailed work, so that we can judge whether our machine can meet your needs. Then we can give you the best machine depending on our experience.
Q2: I am using this machine for the first time, is it easy to operate?
A2: We will send you English manual and instruction video, which can teach you how to operate the machine. If you still can't learn how to use it, we can help you with the "Teamviewer" online help software. Or we can chat by phone, email or other means of contact.
Q3: What should I do if the machine has a problem at my place?
A3: The machine has a two-year warranty. In the event of a malfunction, generally our technicians will identify the problem based on customer feedback. If there is any problem with the machine under "normal use", we can send you parts free of charge during the warranty period.
Q4: This model is not suitable for me, do you have more models?
A4: Yes, we can offer many models, such as portable fiber laser marking machine, desktop fiber laser marking machine, enclosed fiber laser marking machine, CO2 laser marking machine, UV laser marking machine, etc. Replace some parts according to your needs. The above are the most popular. Please let us know if your request cannot be met. We have the ability to customize according to your requirements!
Q5: How long is the delivery time?
A5: In order to ensure the quality of products, let customers receive high-quality laser machines. Our company has strict procedures for incoming inspection, warehousing, reclaiming, machine production, quality inspection, and outgoing inspection. For standard machines, it will be 3-7 working days; non-standard machines and customized machines according to customer specific requirements, 15-30 working days.
Q6: How to pay?
A6: We accept wire transfer (T/T).
Q7: Do you arrange for the machine to be shipped?
A7: Yes, we have freight forwarders for sea and air. If you choose our freight forwarder, you only need to pay us the freight and our freight forwarder will arrange the shipment for you. Of course you can choose your own forwarder to arrange the shipment, we will prove the EXW price to you, your forwarder needs to pick up the goods from our factory.
