Jewelry Ring Laser Engraving Machine 20W Air Cooling With Rotary
Energy Box laser marking machines for Jewelry for ring

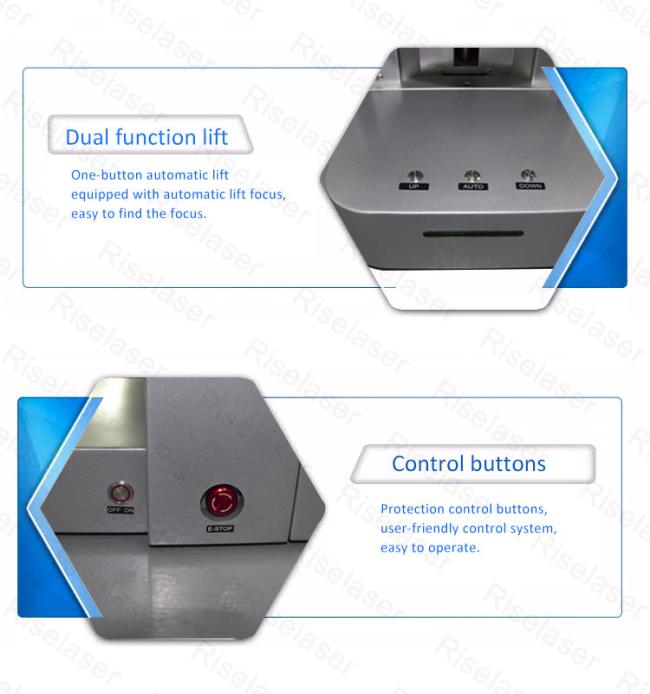

Machine Features
One-click marking:
Auto focus control: the machine can automatically detect the thickness of the workpiece;
Flexible variable text: change text in real time during laser processing, support excel data table;
Image processing: grayscale, white/black conversion;
Open Language Support System: Makes software easier to run on various language platforms.
Machine specifiction
| Fiber Laser Source | Model Name | Energy Box |
| Laser Wavelength | 1064nm | |
| Average Output Power | 20W | |
| Modulation Frequency Range | 90 ±10 @27KHZ | |
| Power adjust range | 30~100% | |
| Scanner Head | Maximum Speed | ≤5000mm/s |
| Resolution | 0.01mm | |
| Long-term Power Instability | 5% | |
| Marking Software | EZCAD Control Card + Software | |
| System Properties | External Red Beam | Included |
| Marking Range | 100*100mm | |
| Minimal character | 0.01mm | |
| Minimum Character Height | 0.15mm | |
| Cooling ways | Force-air Cooling | |
| Power supply | AC110/220V, 50HZ | |
| Working Temperature | 0-40℃ | |
| Machine Dimension | 48*31.5*58mm | |
| Machine Weight | 50 KG | |
| Packing Dimension | 48*31.5*58mm | |
| Packing Weight | 70 KG | |

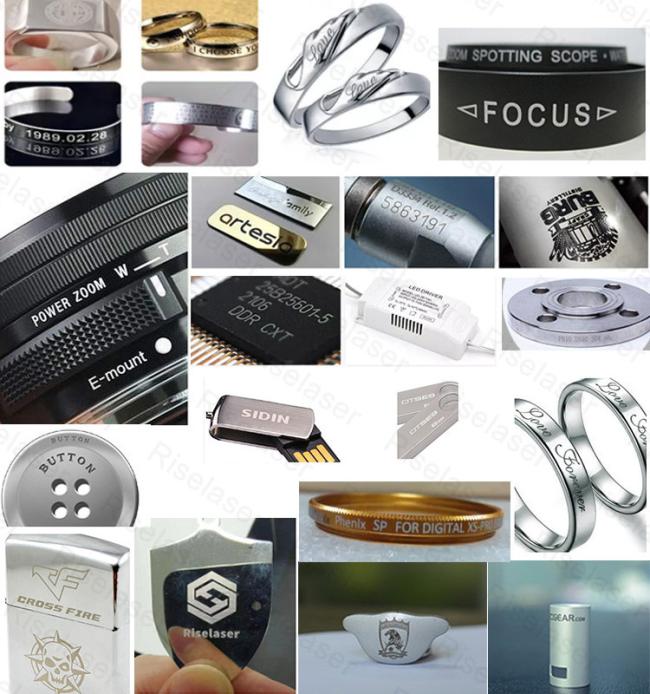

Application
Industry:
It is suitable for electronic components, integrated circuits, electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, watches, jewelry, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industrial products. Artistic, clear and permanent identification marks.
Material:
It is suitable for making beautiful, clear and permanent identification marks on the surface of engineering plastics, electroplating materials, coating materials, rubber, epoxy resin, ceramics, ABS, PVC, PES, copper, titanium, steel and other materials.
FAQ
Q: What is the package?
A: We have 3 layers of packaging. The outside adopts wood craft case. In the middle, the machine is covered with foam to keep the machine from shaking. For the inner layer, the machine is covered with a thickened plastic bag for waterproofing.
Q: Will the package be damaged during shipping?
A: Our packages take all damage factors into consideration and make them safe, and our shipping agents have extensive experience in safe shipping. We have exported to 80 countries around the world. So don't worry, you will receive your package in perfect condition.
Q: How to install and run the machine?
A: Our technicians have installed the machine before shipment. For the installation of some widgets, we will send detailed training videos, user manuals with the machine. 95% of clients can teach themselves.
Q: What should I do if the machine fails?
A: If you encounter such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q: What is your MOQ?
A: We have no MOQ. Whether it's an order of 1 set or an order of 100 sets, we'll be happy to support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. Each Riselaser laser machine will pass 24 tests. After all 24 items are passed, our QC will conduct a reliability test for 48~72 hours. Our laser machines are CE certified.
