6KG Protable Animal Ear Tag Laser Marking Machine Fiber Laser Etching Machine 20w
6KG -protable animal ear tag laser marking machine fiber laser etching machine 20w
Machine sepcifications
| Model | RL-20H | |
|
Laser parameters |
Laser Source | MAX 20W |
| Output power | 20W | |
| Beam quality M22 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | |
| Laser wavelength | 1064±5 | |
| Output power stability | ＜3% | |
| Design life | About 100,000 working hours (non-lifetime) | |
|
Optical properties |
Marking range | 80mm |
| Engraving depth | ≤1mm (depending on power and time) | |
| Engraving speed | ≤10000mm/s | |
| Repeat accuracy | ±0.002 | |
| Minimum marking line width | 0. 1mm | |
| Minimum character height | 0.15mm | |
|
Use environment |
Battery life | It can work for 6-8 hours under normal use |
| cooling method | Built-in air cooling | |
| System power supply | 500W / 100-240V / 50/60Hz | |
|
Other parameters |
Operating system | linux operating system |
| File format | The software supports text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input) | |
| Dimensions | Control chassis: 250X135X195 mm Marking head: 250X120X260 mm | |
| Total Weight | Machine 6kg, marking head 1.25kg | |
Machine Features
The whole machine weighs 6KG, light and portable.
Powerful and reliable, the weight of the whole machine is 6 kg, and the marking head is only 1.25 kg. It has an ergonomic handle that is comfortable to hold and easy to operate.
Advanced Fiber Optic 20W Laser Source
Using MAX's 20W fiber laser, the spot quality is good, and the output optical power is stable
Can be flexibly applied to metallic materials and some non-metallic materials
Built-in battery, can move marking, not limited by working area
Long battery life, 6-8 hours working time
It adopts 24V lithium battery to realize complete wireless, can keep working for 6-8 hours under normal use, and has strong battery life.
The machine can be charged while working
Increase the power control design, the device works while charging and playing, realizes
Continuous work to improve processing efficiency

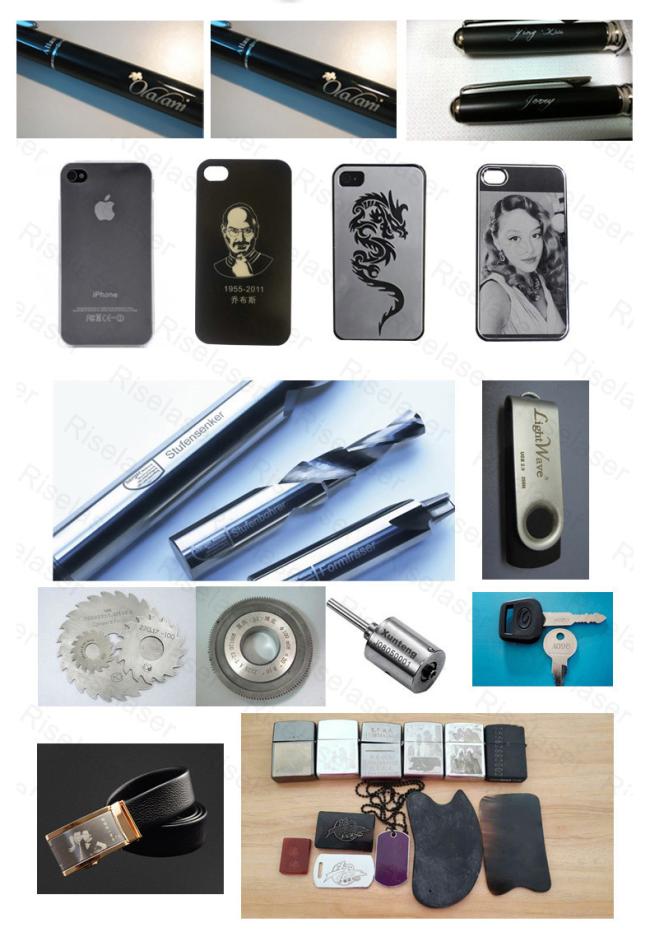

Marking samples
