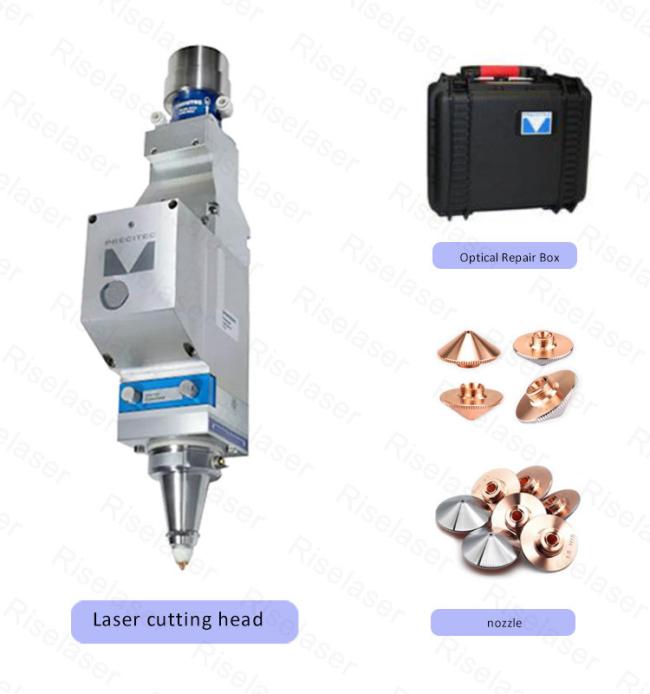

Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts
Product Advantages
Flexible material thickness processing through a high degree of automation
LightCutter 2.0 delivers outstanding cut and product quality without compromise: optimized for continuous permanent operation, it scores with high cutting speeds and smooth rectangular edges with minimal burrs. It has a very sturdy design, is lightweight and convinces even after long cutting cycles. No other head in this class produced comparable stable results.
In the case of frequent material changes, motorized focus position adjustment reduces machine operator intervention time. Different thicknesses and materials can be cut very flexibly. Thanks to this automatic adjustment, the cutting head always works with high precision and stability, even at high accelerations of up to 3 g. It is also the best in its class in all other performance characteristics. Displays the set focus position on the front panel to make debugging easier.
Specifications
| Items | Data |
| Laser Wavelength | 1030 … 1090 nm |
| Laser Power max. | 6 kw |
| Collimation focal length (fC) | 100mm |
| Focusing focal length (fF) | 150 mm and 200 mm (with VA) |
| NA specification | 99,0% included energy at Ɵ no more than 120 mrad |
| Average Transmission | > 97% @ 1030 - 1090 nm |
| Adjustment range | – horizontal (3 mm) |
| – vertical (focal position) | |
| Weight | approx. 4,4 kg / approx. 5,0 kg |
Cutting head contrucitons
Cutting samples
