Glass Lighting Reflector Thermal Evaporation Coating Unit / Glass Bulb Vacuum Metalizing Machine

The glass lighiting reflector thermal evaporation coating machine hight features are:

1. Top coating for a high uniformity of film depositon;

2. Ion source device to do plasma cleaning with Ar gas to enhance the ionizatio for a strong adhesion film quality;

3. Polycold unit for optional (cryopump device can highly reduce the cycle time) to capture the water molecular and oil mist for a high vacuum environment;

4. The evaporation sources have multiple options:  E-beam Gun / Tungsten filament / or both sources. Flexible for various lighting reflector coatings.

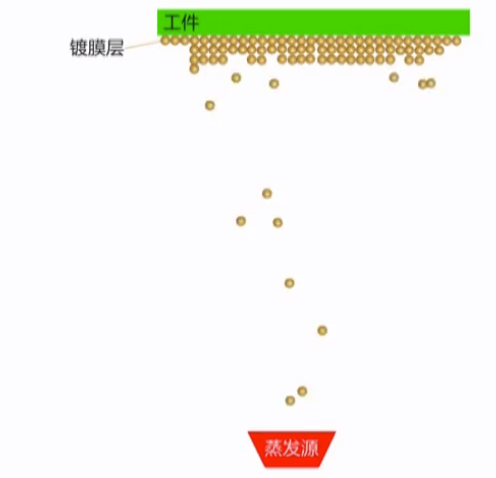

High Vacuum Environment to deposite the evaporation materials

Design Features:

• Robust structure design and high quality configurations

• PLC + Touch Screen Operation System, fully automatic / manual control
• Fast Vacuum Evacuation System
• Exclusively designed rotating Carousel structure for easy loading/uploading
• Easy access to the working environment for maintenance

Technical Specifications:

• Performance

1. Ultimate Vacuum Pressure: better than 5.0×10^-6 Torr.

2. Operating Vacuum Pressure: 1.0×10^-4 Torr.

3. Pumping down Time: from 1 atm to 1.0×10^-4 Torr≤3 minutes ( room temperature, dry, clean and empty chamber)

4. Metalizing material ( evaporation): Al, Cr, Sn, Ti, SS, Cu… etc.

5. Operating Model: Full Automatically /Semi-Auto/ Manually

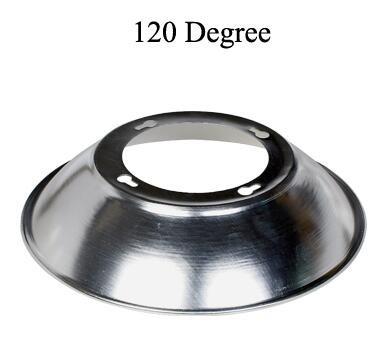

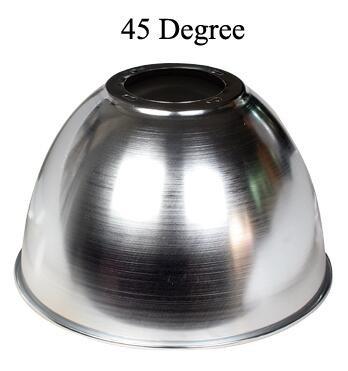

Thermal Evaporation Coating Machine on Lighting Reflector Coating Samples

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
