Thermal Evaporation + Multi Arc Ion Plating Machine on Glass wares, Blue and Gold Decorative Coatings
PVD glass vase coating video:
RTAC-EP series coating equipment is a perfect combination of arc plating and thermal evaporation metalizing.

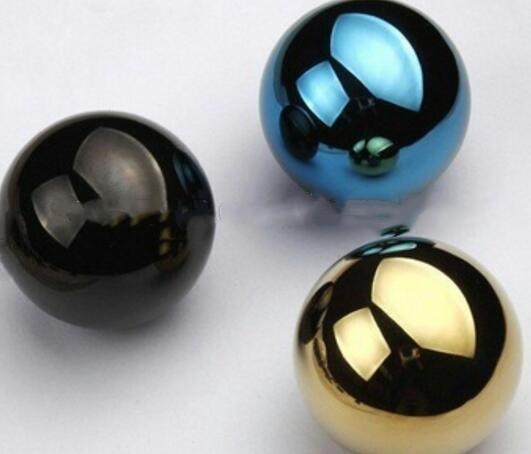

1. The RTAC1616-EP machine is designed and produced for glass balls decoration film coating.
Thermal evaporation sources is to get the none-transparent silver and gold colors by Copper and Aluminum deposition to get high reflection surface finishing.
The arc evaporation sources to generate more colors like champin, blue, rainbowl color, Amber color, none-transparent gold and half-transparent gold colors etc.
2.RTAC Thermal Evaporation + Arc Vacuum Plating Machine models
| Model | Size(mm) | Substrate Jigs (Qty.) | Evaporation Power(kVA) | Plasma (kVA) |
Arc Sources (Qty.) |
Electrical Power |
| RTAC1012-EP | 1000xH1200 | 6,8,10 | 20 | 12 | 6 | 3Phase/AC380V,50HZ 3Ph, 220 to 440V,60HZ |
| RTAC1416-EP | 1400xH1600 | 6, 8,16 | 30 | 24 | 14 | |
| RTAC1418-EP | 1400xH1800 | 6,16 | 35 | 24 | 14 | |
| RTAC1616-EP | 1600xH1600 | 8.16 | 35 | 36 | 16 | |
| RTAC1618-EP | 1600xH1800 | 8.16 | 35 | 36 | 18 | |
| RTAC1820-EP | 1800xH2000 | 6 | 40 | 48 | 22 |
3. Equipment Structure
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
