| Vertical | Horizontal | |||
| RTAC1836 | RTAC2040 | RTAC2080 | RTAC2270 | |
| Standard Applications |
Stainless Steel Sheets: 1000*2000mm,1219*2438mm,1500*6000mm,1800*6000mm Stainless Steel Pipes size: diameter 15mm ~ 300mm, length up to 6000mm Crystal Chandelier, Glass Lighting Stainless Steel Gate/Wall/ Fence/windows Ceramic Tiles Stainless Steel Furniture: chair, table, desk, bed, display cabinet, clothes hooks, sculpture. Others: windows, walls, hotel, KTV, Bars, elevator panels for aesthetic surface finishing. |
|||
| Key Features |
1.High throughput up to 10 cycles per day; 2.Solid whole structure system for more than 30 years life time; 3.Compact design and with easy access for upgrading and maintenance work. 4.Fully Automation, PLC+Touch Screen, one-touch operation and control system. 5.High efficiency with less power consumption, max. 50% production cost saving. 6. Workshop layout plan support is available from RoyalTech. |
|||
|
Deposition Chamber (mm) |
φ1800 * H3600 | φ2000 * H4000 | φ2000 * L8000 | φ2200 * L7000 |
| Total Power (kw) | 120-300 | 120-350 | 200 | 200 |
| Circular Arc Cathode (sets) | 24-36 | 40-60 | 50~60 | 50~60 |
| Rack and Jig System | Planetary , central driving or integrated in one machine | |||
|
Pulsed Bias Power (KW) |
60 | 60 | 70 | 70 |
| Heating System | Controllable and adjustable from room temperature to 300°C | |||
Large Size Stainless Steel Panels and Tubes Coating, Furniture PVD TiN Gold Plating Machine
The Large Multi-arc coating system is with cathodic arc deposition technology to generate various colors on stainless steel products, it widely used in architecture and building materials industry, such as: windows, walls, hotel, KTV, Bars, elevator panels for aesthetic surface finishing.
Applications
- Stainless Steel Sheets standard sizes:
- 1000*2000mm,1219*2438mm,1500*6000mm,1800*6000mm
- Stainless Steel Pipes size: diameter 15mm ~ 300mm, length up to 6000mm
- Crystal Chandelier, Glass Lighting
- Stainless Steel Gate/Wall/ Fence/windows
- Ceramic Tiles

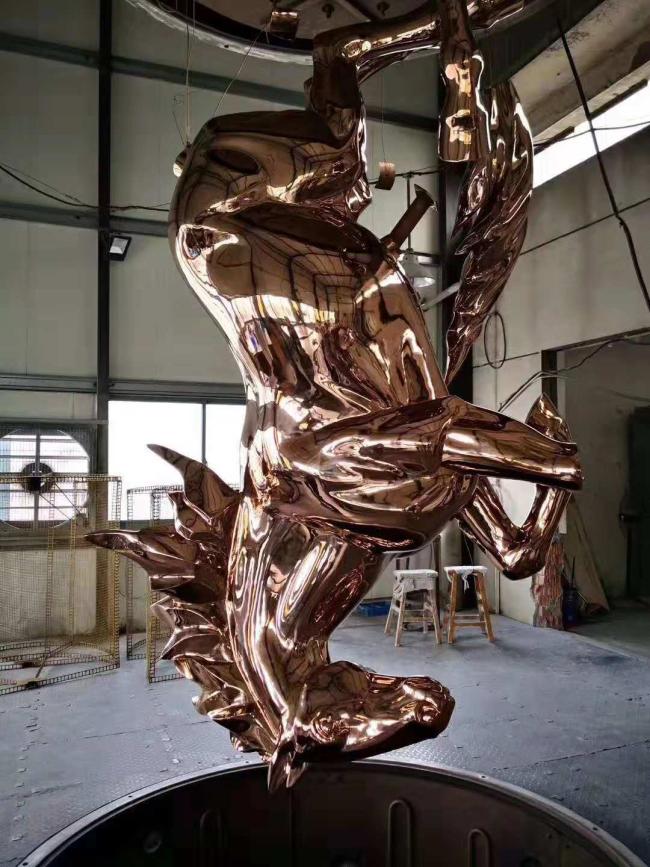

- Stainless Steel Furniture: chair, table, desk, bed, display cabinet, clothes hooks, sculpture etc.
![]()
![]()
Coating Properties
Large PVD Vacuum Arc Plating Machine Coatings : TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN

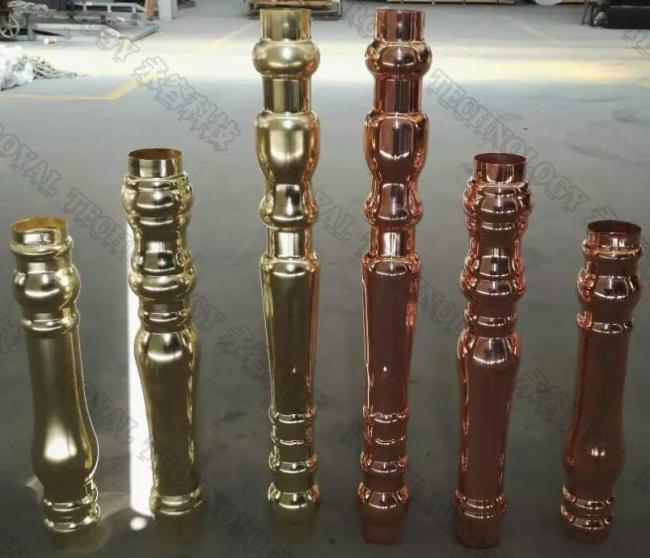

Large PVD Vacuum Arc Plating Machine Coating Colors : gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc
Features
- High throughput up to 10 cycles per day;
- Solid whole structure system for more than 30 years life time;
- Compact design and with easy access for upgrading and maintenance work.
- Fully Automation, PLC+Touch Screen, one-touch operation and control system.
- High efficiency with less power consumption, max. 50% production cost saving.
We do turnkey project for customers including all stainless steel surface treatment:Stainless steel cutting line,slitting line, 8K mirror,No.4. Hairline,etching,PVD,anti-finger coating and plastic laminating machines, Polishing machine, etching machine for surface treatment.

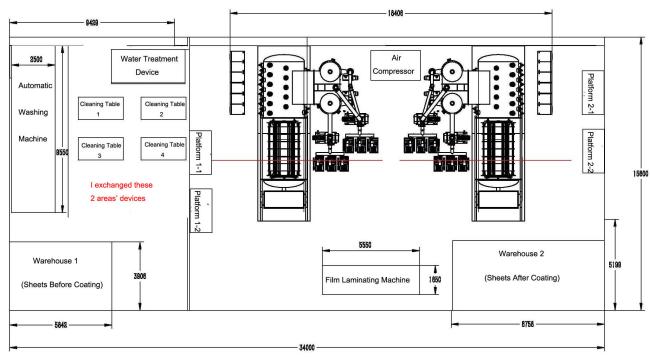

Horizontal Model- PVD Coating Workshop Plan Design
We have a professional team to assist our customers build the PVD vacuum coating service center and get running cost back within short time. It is a reliable and great business investment project for PVD coating market.
Technical Specifications

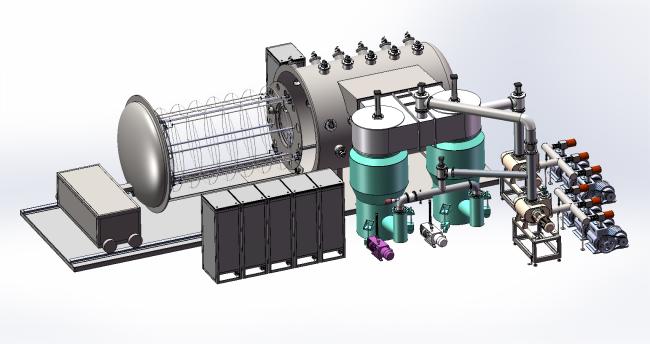

Royal Technology provides both Vertical and Horizontal models of Large Size arc coating machines.
Horizontal Model
Please consult us with your expected solutions you want to get from Royaltec, we provide the turn-key coating solutions on this application.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
