304 Stainless Steel Water Well Screen Pipe #30 Slot 10-3/4" Continuous Slot
Stainless Steel 304 #30 Slot 10-3/4" Continuous Slot Water Well Screen

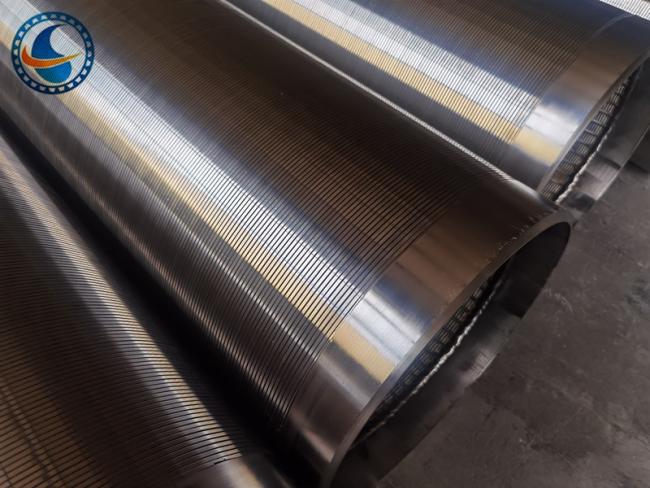

Continuous Slot Water Well Screen , also called Water well screens, Vee wire well screens, are made of Vee or wedge shaped wires around an internal array of longitudinal support rods.
It is designed to serve as the intake portion of wells constructed in unconsolidated or semi-consolidated aquifers. This design supplies a continuous slot openings, which allows water to enter the well freely in ample quantities and keeps the majority of sand and gravels out of the well at the same time.
Continuous Slot Water Well Screen Regular Specifications:
|
Name:Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen, Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen, Continuous slot screen filter,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
|||||||
| Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc. | |||||||
| Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc. | |||||||
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) | |||||||
| Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container) | |||||||
| Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc. | |||||||
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. | |||||||
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. | |||||||
|
Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
|||||||
|
Sizes (inch) |
OD (mm) |
Slot (mm) |
Length (m) |
Tenslie Strength |
Collapse Strength |
Wrap wire Vee-shaped wire(mm) |
Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.0*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.0*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.2*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*4.6(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.0*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.5(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.5(Width*height) | ø4.0MM×64 |
Special specification can be made according to your need !
Our Service:
Material Testing
Tensile Strength Testing
SGS,CCIC,and Mill Testing
sturdy construction and good mechanical property
wide range of types are available
any size OEM product is welcome
Free sample is available
Our technical staff includes expert design engineers, welders, technical support personnel, and sales engineers who are familiar with all aspects of manufacturing and deployment of downhole screens for different applications.
