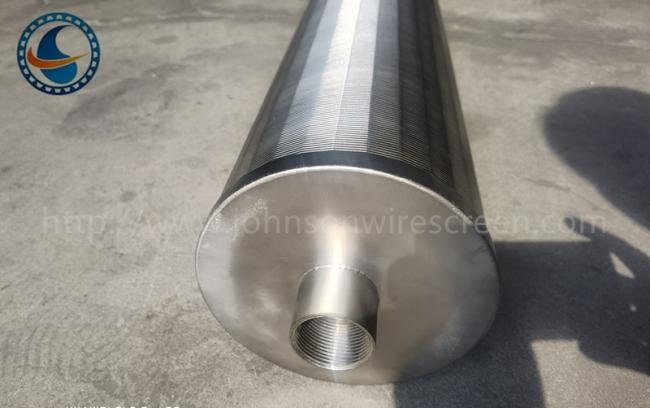

200um Slot Wedge Wire Screen Filter Tube Stainless Steel 304 With Flange
200μm Slot SS 304 Wedge Wire Screen Filter Tube With Flange
Stainless steel Wedge Wire Screen Filter Tube is welded together by v-shaped wire and support rod through advanced circular resistance welding. This kind of screen tube has the characteristics of firm structure, large opening area, corrosion resistance, nonblocking, and no maintenance.
Wedge Wire Screen Filter Tube Sizes:
Material : stainless steel wire.Such as: SS304, SS201, SS316L etc; Hastelloy C276; 904L; Duplex 2205,2507
Diameter : 26-1300 mm ,can make as customers request.
Slot: 0.02-100mm
Length :10-4000mm
End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
|
Material |
Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc. |
|
Diameter |
25mm-1300mm |
|
Shape |
Cylindrical |
|
Slot |
0.02mm-10mm |
|
Thickness |
4mm-12mm |
|
Feature |
Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
|
Application |
--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
Wedge Wire Screen Filter Tube Features:
1. It has high mechanical strength, can bear large pressure drops.
2. The wedge-type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, used in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
