Stainless Steel 2205 Rotary Screen Drum Wedge Wire Wound Basket Fito
Stainlee Steel 2205 Rotary Wedge Wire Wound Screen Drum Basket FITO
Product Description:
Rotary Wedge Wire Wound Screen Drum Basket is made of the continuous slot,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.Both the inner and outer screens shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.Each junction of wire/rod contact shall be resistance welded.The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.
Advantages:
The slit size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable.
It has high strength, stiffness and bearing capacity, and can be used as a rigid screening filter for various shapes.This product is made of advanced fusion welding technology. The screen has the highest screening efficiency, the strongest anti-tensile capacity, the minimum maintenance requirement, and the longest service life.
We can also frame the arc-shape screen with polyurethane to strengthen its structure and make it have longer service time
Specification:
| Material | Stainless steel |
| Grade | 2205 |
| I.D | 150-1000 mm, 380 MM |
| Slot Size | 0.1 - 30 mm, 0.5 mm |
| Components | None |
| Length | 300-3000mm, 800 mm, |
| Filter type | From inside to outside |
| Wire size | 1.5*2.5 mm |
| Support rod | 2*3 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L 2205 2507 and so on
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD | ||||||
| Wire | ||||||
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | Round wire | |||||
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Filter precision conversion
| Microns | 10 | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 150 | 200 | 400 | 800 | 1500 | 3000 |
| Mesh | 1500 | 650 | 550 | 400 | 300 | 200 | 150 | 120 | 100 | 80 | 40 | 20 | 10 | 5 |
| MM | 0.01 | 0.025 | 0.03 | 0.04 | 0.05 | 0.08 | 0.1 | 0.12 | 0.15 | 0.2 | 0.4 | 0.8 | 1.5 |
3.0 |
Special specification can be made according to your need.
Benefits:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel have the high corrosion resistance
Easy to backwash, clean without dead Angle.
Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.
Built-in scraper, brush, suction first class cleaning device.
The special
Industry:
● Trommel screens with internal feed
● Systems with an internal rotor or screw
● Dewatering systems
● Baskets
● Automatic filters
Fecal treatment

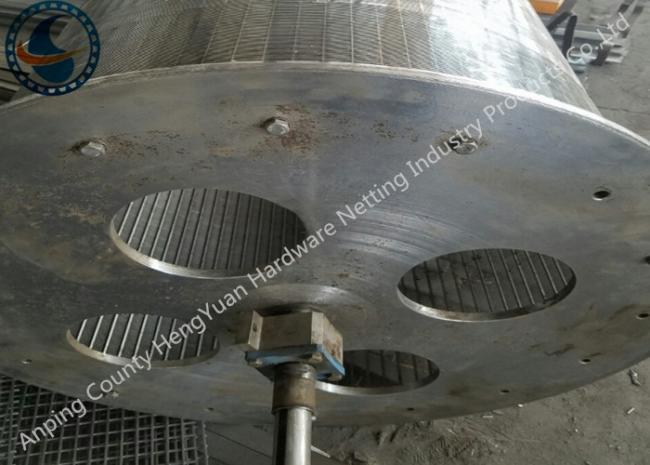

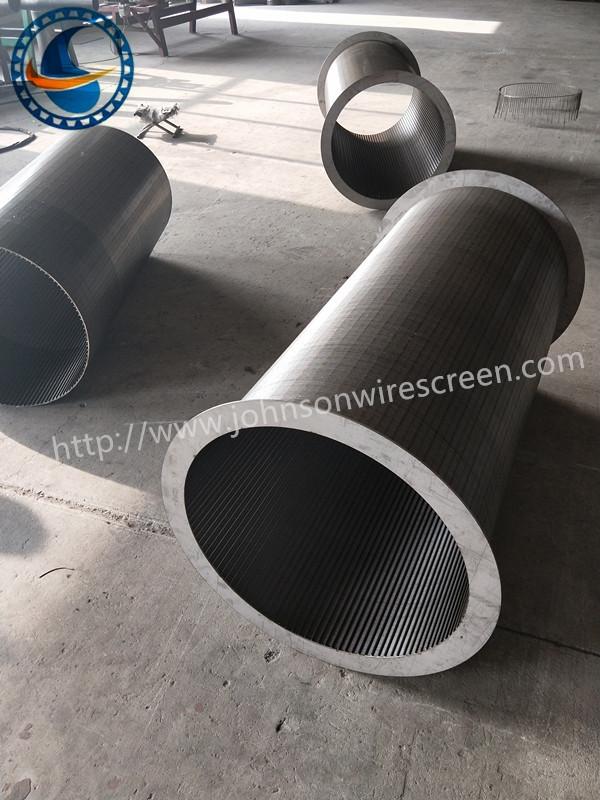

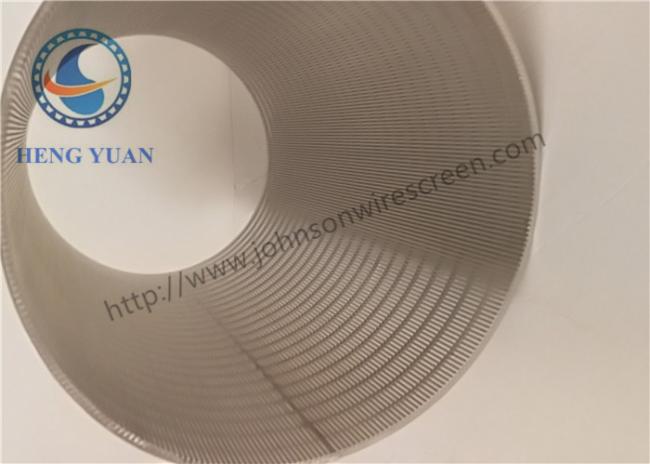

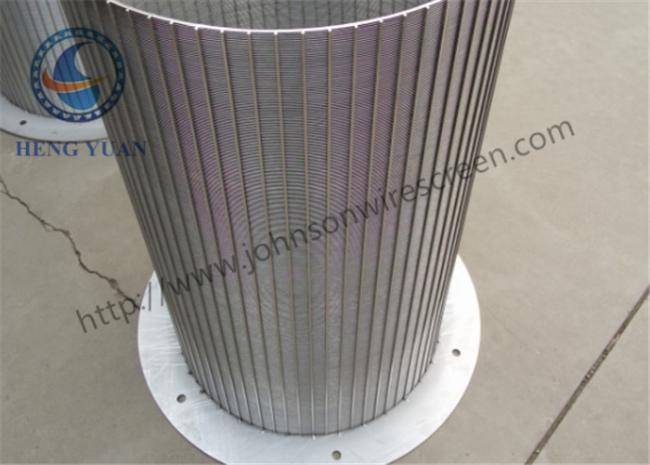

Pictures:
Package:
