Diameter 114mm SS304 Wedge Wire Mesh Filter 200μM Slot For Filtration

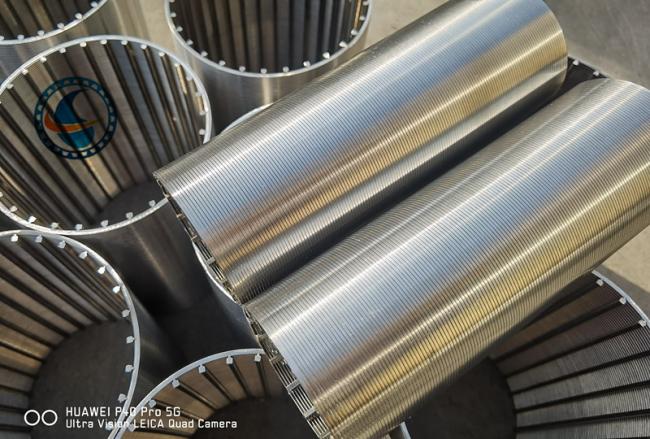

Stainless Steel 304 Wedge Wire Screen Filter
Wedge wire screen filters are a kind of metallic filtration media which generally manufactured by welding v-shaped wires on the support rods. Stainless steel series material can be used, as usual, certainly other alloys like nickel, titanium are allowed to suit your special application.
- Raw material: 304/316 stainless steel or other alloys
- Shape: cylinder, nozzle, basket, tube, candle, tube …
- Differential pressure: up to 300psi
- Working temperature: Ma 815℃ upon the material
- Standard slot size: 0.05/0.1/0.2/0.3/0.4 mm
- Diameter: 25-1200 mm
- Flow direction: in-to-out/out-to-in
- Endcap configuration: thread fitting, flange, resistance welded closed plate metal ring
|
Material |
Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc. |
|
Diameter |
25mm-1300mm |
|
Shape |
Cylindrical |
|
Slot |
0.02mm-10mm |
|
Thickness |
4mm-12mm |
|
Feature |
Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
|
Application |
--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
Wedge Wire Screen Filter Characteristic:
Wedge Wire Screen Filter have superior open area due to their continuous slot openings.
The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
