316L Grade Water Well Screen Wire Wrapped Screen Stainless Steel Easy Operation
Stainless Steel 316L 1.0 mm 8 " OD 219 Johnson Used In Water Well Screen Pipe
Product Description:
Johnson water well screens are made by welding v-shaped wire on support rods, creating slots which enlarge inwardly, meeting the most demanding standards for ruggedness,durability, consistency and slot openings. The v-shaped opening allows only two contact points with the particles, thus preventing any risk of clogging. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.
Specificarion:
| MaterialA | Stainless steel |
| Grade | 316L |
| O.D | 219mm |
| Size | 8" |
| Length | 300mm-6000mm,2.9m,5.8m |
| Solt size | 1.0 mm |
| End connection | Welded rings |
| Wire size | 93 # |
| Support rod | 140 # |
| Wire shape | V shape |
Characteristic:
1. Easy operation without any special technique
2. strongly withstand the natural damage and the harsh climate
3. stand large area transformation while not collapse
4. the box can be folded and easy transportation
5. corrosion resistant
Regular Specification:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Use:
Johnson water well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
water well
water supply systems
Refining & petrochemical

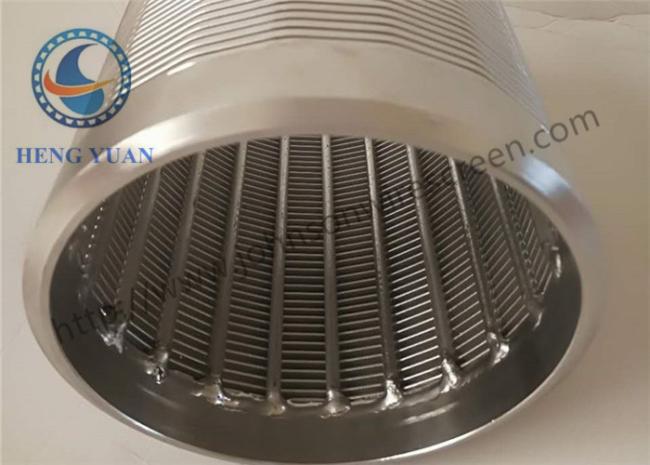

Pictures:
