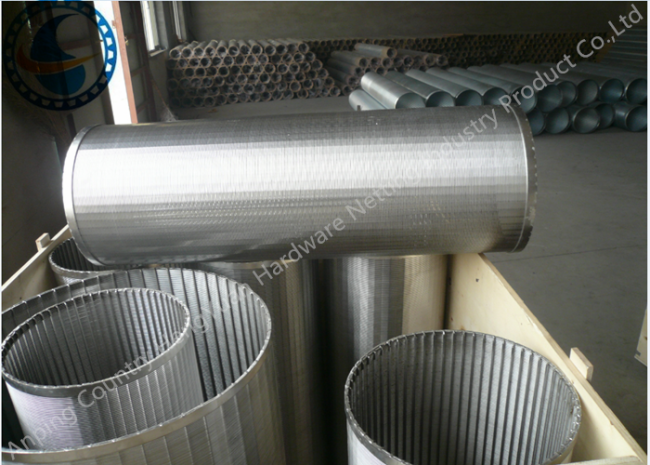

Long Lifetime Stainless Steel Slot 30 Johnson Type Oil Well Screen
Long Lifetime SS304 Slot 30 Johnson Type Oil Well Screen
Johnson Type Oil Well Screen is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.
Specifications of stainless steel Johnson Type Oil Well Screens :
Slot size (mm): 0.25, 0.5, 1.0, 1.5, 2.0mm, or other slot as your request.
Open area: up to 90%
Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.)
Length:2.9m or 5.8m to fit container
Diameter: ranging from 29 to 1300mm
End connection: threaded coupling or welded end
Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)
Slot (mm):0.5, 0.75, 1.0, 1.5, 2.0 in usual
Johnson Type Oil Well Screen Features:
• They are non-clogging
• Self-supported and rigid
• Very long lifetime
• Reliable and consistent filtration rating
• All metallic construction (non-metallic also possible like PP)
• Easy to clean smooth filtering surface
| Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request | |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |
Stainless steel Johnson Type Oil Well Screens by HengYuan has a high open area compared with other screen media, then this kind of water well screens allows lower entrance velocity and higher flow rates through the screen.
Stainless steel Johnson Type Oil Well screens give continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening.
