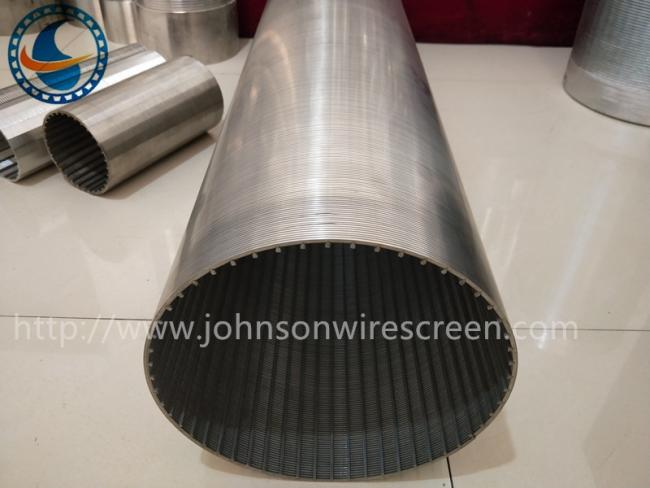

Rod Based Tubular Wire Wrapped Screen For Food Processors Stainless Steel Material
Stainless Steel Rod Based Tubular Wire Wrap Screen Used In Food Processors
Specification of Manufacture Wrap Screen Wire
Filtrations Direction of Manufacture Johnson Wire Wrap Screen, Water Well Filter Pipe,Wound Screen

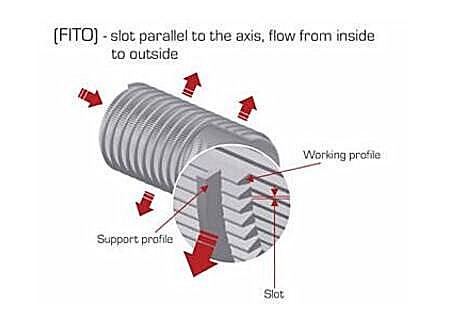

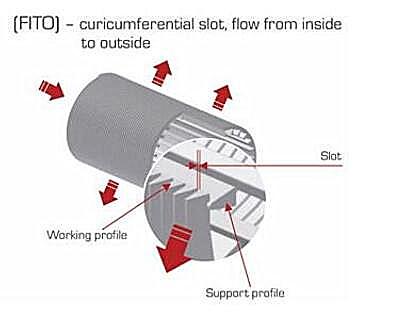

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.

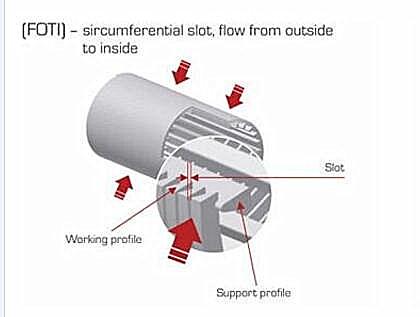

Wire wrap screen is either flow-out-to-in (FOTI) or flow-in-to-out (FITO)

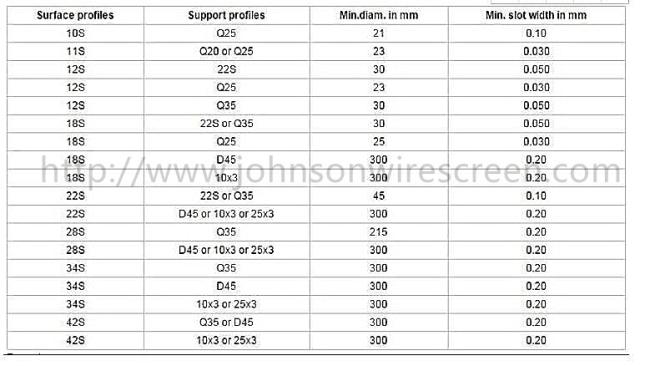

Normal Sizes:
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| OD Range | 29mm-2000mm | ||||||
| ID Range | 21mm-1981mm | ||||||
| Length Range | Up to 6000 mm | ||||||
| Slot Range | 50 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 2.2x3.5 | 3x4.6/ 3x5 |
| Support Rod | 2x3 | 2x3 |
2x3 |
2x3 |
3x4.6 3x5 3x6 2x10 3x10 |
3x4.6 3x5 3x6 2x10 3x10 |
3x4.6 3x5 3x6 2x10 3x10 |
| End Finishing | Flange, Welded rings, closed up,open ends etc | ||||||
| Note | Customized According To Requirement | ||||||
Execpt these sizes,we can also make any other sizes according to your drawing.
Characteristics:
1. Many varied applications in sieving, sorting and separating.
2. Wedge Wire surface is self-cleaning.
3. Various construction types
4. Wedge Wire on round bars for light duty.
5. Wedge Wire on fins for medium or heavy duty.
6. Grates edged with flat bar or angle.
7. Highly polished grates for wet areas, bars or bench tops.
8. Heavy grids and support bar systems for absorption vessels.
9. Grates and grids made as single or multi-part items.
10. Materials to suit applications (Stainless steel 304 or 316, mild steel etc)
