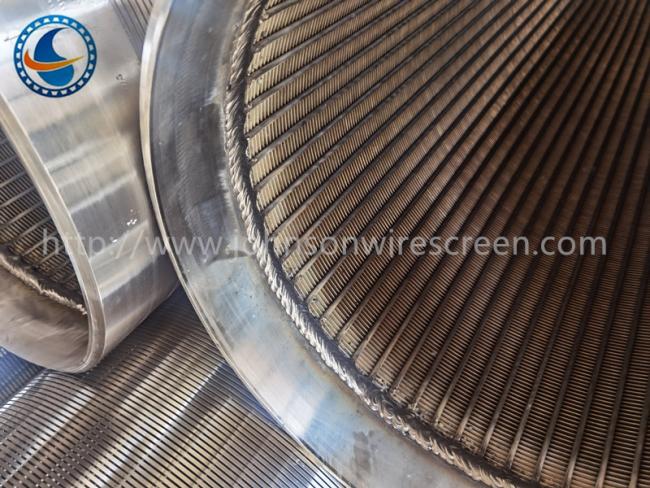

SS 304L 16" 1.0mm Slot Wedge Wire Screen Pipe For 300m Depth Wells
| Attribute | Value |
|---|---|
| Name | Wedge Wire Screen Pipe |
| Material | Stainless Steel 304L |
| Diameter | 406mm |
| Length | 6000mm |
| Slot size | 1.0 mm |
| Wrap wire | 3×5.5mm |
| Support rod | ø4.0mm |
| NO. of rod | 64NOS |
| End connection | Welded rings |
| Weight | 225KG/piece |
| Package | Plastic film |
| Use | In 300m depth water wells |
- Less Maintenance: Vee wire continuous slot design reduces encrustation rates and resists plugging while preventing sand damage to pumps.
- Pumping Costs: High open area allows water to enter freely, minimizing drawdown and reducing energy usage.
- Optimal Performance: Screens are designed to site-specific yield requirements with slot openings selected from formation sand analysis.
- Sand Control: Patented Vee-Wire technology and welded construction prevent well screen failure by better controlling sand.
Name: Wedge Wire screen pipe, Continuous Slot Water Well Screen, Johnson screen, Wire warp screen, Wedge wire screen, Screen tube, Slotted tube, Wound screen, Continuous slot screen filter, Sand control screen, Rotary filter drum, Oil screen.
Material: Stainless steel 202, 304, 304L, 316L, Non-magnetic Stainless steel, Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire: 2*3.5mm, 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm, 3*6.5mm, 3.2*6mm, 4*7mm etc.
Support rod: ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends: Welded rings/Plain beveled ends, Male/female threaded, Flange etc.
Use: Water Well, Oil Wells, Waste Water Treatment, Water supply systems, Coal & Mine, Food Processors & Beverage Screens, Environmental protection, Refining & Petrochemical, Architecture & Construction etc.
| Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tensile Strength | Collapse Strength | Wrap wire Vee-shaped wire (mm) | Support rod Round wire (mm) |
|---|---|---|---|---|---|---|---|
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.0*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.0*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.2*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*4.6(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.0*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.5(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.5(Width*height) | ø4.0MM×64 |
- Sand analysis of formation materials
- Screen size recommendations
- Screen installation suggestions
- Well construction consultation
Our technical staff includes expert design engineers, welders, technical support personnel, and sales engineers who are familiar with all aspects of manufacturing and deployment of downhole screens for different applications.
