M24 Stainless Steel 304 Wedge Wire Screen Nozzle For Water Treatment

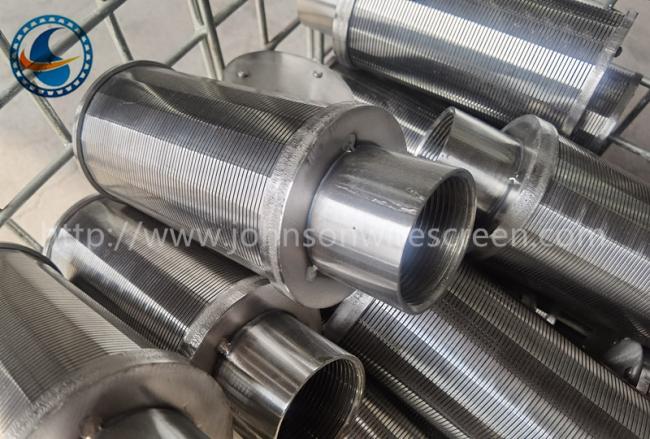

Stainless steel 304 Wedge Wire Screen Nozzle
Wedge Wire Screen Nozzles are used in liquid/solid or gas/solid separation (sand, catalyst, resins, zeolite etc).
The design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow.
Hengyuan nozzles are an excellent technical and economical solution in bringing together a fully welded, strong and highly corrosion resistant structure and with a non-plugging surface.
Feature of wedge wire screen nozzles:
1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness.
Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.
3.After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI)
Wedge Wire Screen Nozzle Regular Specifications:
| Type | Slot size | Specifications | Flow filter area 0.2mm slot ( reference) |
|||
| D | H | L | M | |||
| HY45-11-A | 0.2-0.5 | 45 | 30 | 150 | M20 | 330 |
| HY45-11-B | 0.2-0.5 | 45 | 40 | 160 | M24 | 400 |
| HY53-12-A | 0.2-0.5 | 53 | 40 | 170 | M24 | 510 |
| HY53-12-B | 0.2-0.5 | 53 | 50 | 180 | M32 | 640 |
| HY57-13-A | 0.2-0.5 | 58 | 40 | 190 | M32 | 630 |
| HY57-13-B | 0.2-0.5 | 58 | 50 | 200 | M32 | 780 |
