P2.84 Exhibitions Outdoor Rental LED Screen 500x1000mm Wide Viewing Angle
Product features:
1. Self-developed private model products, modular design, support rear/front maintenance.
2. With a user-friendly arc lock design, it is compatible with both straight and curved screens, satisfying the varied needs of customers for flexible screen assembly.
3. With multiple protections in place, maintenance is minimized. The thin, die-cast aluminum housing offers high toughness, precision, and durability against deformation.
4. Consuming an average of only 220W, it promotes both energy savings and environmental sustainability.
5. 120 degree super wide viewing angle.
6. With RGB deep grayscale processing, the colors are rich and nuanced, producing sharp and natural picture quality.
7. Screwless fixing on the HUB connection makes it ideal for rental use, allowing for quick and convenient installation and takedown.
Product technical specifications:
| Item | Parameter | Specification |
| Module parameters | Pitch | 2.84mm |
| LEDs | SMD1415 | |
| Lead wire | Copper | |
| Module resolution | 88*88 dots | |
| Module size ± tolerances | 249.90±0.1(V)* 249.90±0.1(H)*17.9±0.5(D) | |
| Module weight ± tolerances | ≤0.68 KGS | |
| Pixel density | 123904 dots/㎡ | |
| Cabinet parameters | Cabinet size ± tolerances | 499.9(±0.1)(H)*999.9(±0.1)(V)* 76(±0.2)(D) |
| Cabinet flatness | ≤1.0mm | |
| Cabinet material | Die casting aluminum | |
| Cabinet weight ± tolerance | ≤6.9 KGS | |
| Cabinet parameters of screen | Module quantity for 1 cabinet | 2*4=8 PCS |
| Cabinet resolution | 176*352 dots | |
| Cabinet + Module size ± tolerance | 499.9(±0.1)(H)*999.9(±0.1)(V)*85(±0.2)(D) | |
| Cabinet + Module weight ± tolerance | 13 KGS | |
| Maintenance methods | Rear/Front | |
| Flatness | ≤1.0mm | |
| Screen seams | ≤1.0mm | |
| Optical parameters | Pixel-by-pixel brightness correction | Support |
| Pixel-by-pixel chromaticity correction | Support | |
| White balance brightness | ≥4000 cd/m2 | |
| Color temperature | 3000K-15000K | |
| Horizontal viewing angle | ≥120° | |
| Vertical viewing angle | ≥110° | |
| Viewing distance(=PITCH*1) | ≥3m | |
| Electrical parameters | Max. power consumption of cabinet | ≤200 W |
| Ave. power consumption | ≤220W/㎡ | |
| Max. power consumption | ≤630W/㎡ | |
| Power supply requirements | 220-240V AC | |
| Processing performance | Scan | 22S |
| Frame rate | 50-60Hz | |
| Refresh rate | 3840Hz-7680Hz | |
| Drive mode | Constant current | |
| Grayscale | 14bits - 16bits | |
| Control system | Control method | Ethernet port |
| Control the distance | Cat5e Unshielded Twisted Pai | |
| Signal input | HDMI,DVI | |
| Brightness adjust | Manual/automatic/remote control | |
| Operational parameters | Continuous working hours | ≥ 5000hrs |
| Mean time between failures | ≥ 5000hrs | |
| Discrete out-of-control points | 0 before shipping | |
| Continuous runaway points | 0 | |
| Blind spot rate | 0 before shipping | |
| Screen temperature rise | ≤ 65℃ | |
| Usage parameters | Typical life values | 50000hrs |
| Lamp temperature | ≤60° | |
| Operating temperature | -10°~50° | |
| Storage temperature | -20°~50° | |
| Operating humidity | 10~65%RH no condensation | |
| Storage humidity | 10~65%RH no condensation | |
| Protection | Protection level | IP65 |
| Certification | CE/FCC/ROHS/ISO | / |

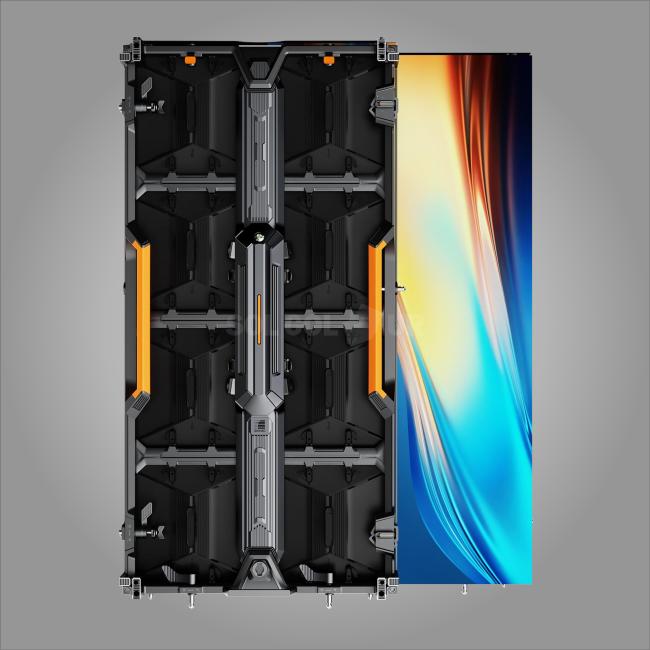

Reference pictures:
