IP65 Outdoor P4.81 LED Screen Private Cabinet Model 500x500mm Quick Installation
Outdoor P4.81 LED Screen Private Cabinet Model 500x500mm Quick Installation IP65
Product features:
1. Self-developed private model products, modular design, support rear/front maintenance.
2. The human-centered arc lock design ensures compatibility with both straight and curved screens, addressing different customer demands for flexible splicing.
3. Multiple layers of protection reduce maintenance needs. The lightweight die-cast aluminum cabinet is strong, highly precise, and resistant to deformation.
4. The average power consumption is only up to 220W, which is energy-saving and environmentally friendly.
5. Ultra-wide 120-degree field of view.
6. RGB deep grayscale processing enhances color richness and delicacy, ensuring sharp and lifelike picture quality.
7. The HUB connection is suitable for rental, uses screwless fixing, and is easy and quick to disassemble and install.
Product technical specifications:
| Item | Parameter | Specification |
| Module parameters | Pitch | 4.81mm |
| LEDs | SMD1921 | |
| Lead wire | Copper | |
| Module resolution | 52*52 dots | |
| Module size ± tolerances | 249.90±0.1(V)* 249.90±0.1(H)*17.9±0.5(D) | |
| Module weight ± tolerances | ≤0.60 KGS | |
| Pixel density | 43222 dots/㎡ | |
| Cabinet parameters | Cabinet size ± tolerances | 499.9(±0.1)(H)*499.9(±0.1)(V)* 76(±0.2)(D) |
| Cabinet flatness | ≤1.0mm | |
| Cabinet material | Die casting aluminum | |
| Cabinet weight ± tolerance | ≤4.2 KGS | |
| Cabinet parameters of screen | Module quantity for 1 cabinet | 2*2=4 PCS |
| Cabinet resolution | 104*104 dots | |
| Cabinet + Module size ± tolerance | 499.9(±0.1)(H)*499.9(±0.1)(V)*85(±0.2)(D) | |
| Cabinet + Module weight ± tolerance | 7.5 KGS | |
| Maintenance methods | Rear/Front | |
| Flatness | ≤1.0mm | |
| Screen seams | ≤1.0mm | |
| Optical parameters | Pixel-by-pixel brightness correction | Support |
| Pixel-by-pixel chromaticity correction | Support | |
| White balance brightness | ≥4000 cd/m2 | |
| Color temperature | 3000K-15000K | |
| Horizontal viewing angle | ≥120° | |
| Vertical viewing angle | ≥110° | |
| Viewing distance(=PITCH*1) | ≥4m | |
| Electrical parameters | Max. power consumption of cabinet | ≤200 W |
| Ave. power consumption | ≤220W/㎡ | |
| Max. power consumption | ≤630W/㎡ | |
| Power supply requirements | 220-240V AC | |
| Processing performance | Scan | 13S |
| Frame rate | 50-60Hz | |
| Refresh rate | 3840Hz-7680Hz | |
| Drive mode | Constant current | |
| Grayscale | 14bits - 16bits | |
| Control system | Control method | Ethernet port |
| Control the distance | Cat5e Unshielded Twisted Pai | |
| Signal input | HDMI,DVI | |
| Brightness adjust | Manual/automatic/remote control | |
| Operational parameters | Continuous working hours | ≥ 5000hrs |
| Mean time between failures | ≥ 5000hrs | |
| Discrete out-of-control points | 0 before shipping | |
| Continuous runaway points | 0 | |
| Blind spot rate | 0 before shipping | |
| Screen temperature rise | ≤ 65℃ | |
| Usage parameters | Typical life values | 50000hrs |
| Lamp temperature | ≤60° | |
| Operating temperature | -10°~50° | |
| Storage temperature | -20°~50° | |
| Operating humidity | 10~65%RH no condensation | |
| Storage humidity | 10~65%RH no condensation | |
| Protection | Protection level | IP65 |
| Certification | CE/FCC/ROHS/ISO | / |

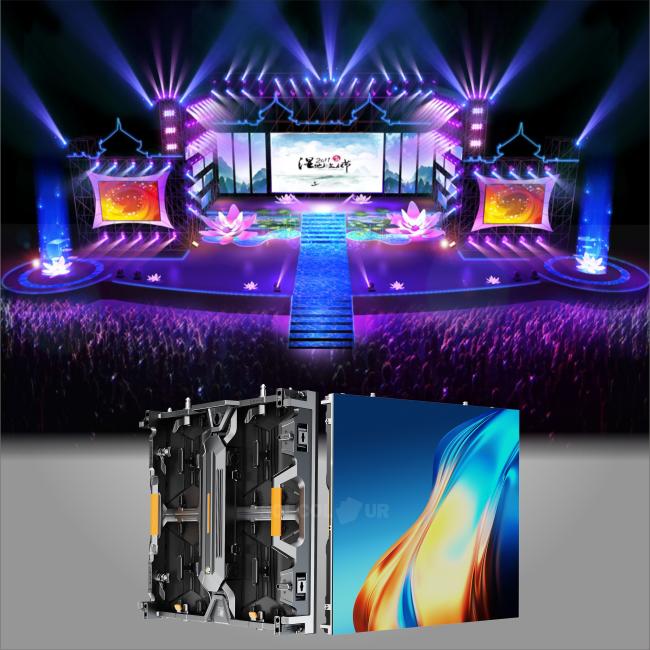

Reference pictures:
