500x1000mm High Brightness Outdoor LED Display Hanging LED Screen SMD1415 SMD1921

Name: 500x1000mm High Brightness Outdoor LED Display Hanging LED Screen SMD1415 SMD1921
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD

Price Negotiable

Price: Negotiated

MOQ: 1sqm

Delivery Time: 10 working days after receiving deposit

Brand: Sol-colur

Product Description

Product features:

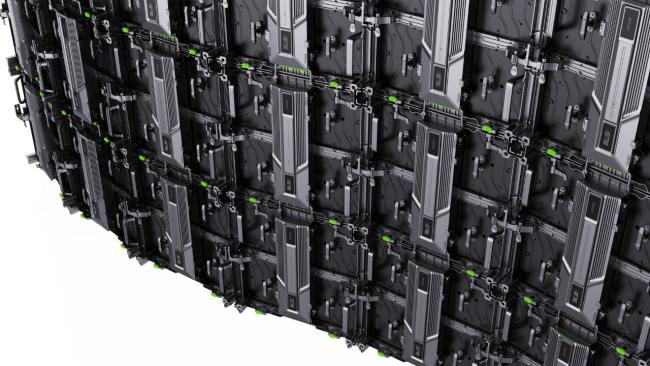

1. Its humanized arc lock design supports both flat and curved screens, accommodating the flexible screen splicing needs of various clients.

2. Featuring multiple protections, the thin die-cast aluminum housing ensures reduced maintenance, strong toughness, high precision, and resistance to deformation.

3. The power consumption averages just 200W, ensuring energy conservation and eco-friendliness.

4. Ultra-wide 120-degree field of view.

5. Thanks to RGB low grayscale processing, the colors are vivid and subtle, offering clear and natural imagery.

6. Convenient and fast to install and take apart.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.604mm	2.976mm	3.91mm	4.81mm
	Module resolution	96*96 dots	84*84 dots	64*64 dots	52*52 dots
	Module size	250x250mm
	Module weight	≤0.55 KGS
	Pixel density	147456 dots/㎡	112896 dots/㎡	65536 dots/㎡	43264 dots/㎡
Cabinet parameters	Cabinet size	500x1000mm
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
Cabinet parameters of screen	Module quantity for 1 cabinet	2*4=8 PCS
	Cabinet resolution	192*192 dots	168*168 dots	128*128 dots	104*104 dots
	Cabinet + Module weight	12.5 KGS
	Maintenance methods	Rear
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	4000-5000 cd/m2
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption	≤700 W
	Ave. power consumption	≤200 W
	Power supply requirements	220-240V AC
Processing performance	Scan	32S	28S	16S	13S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP65
Certification	CE/FCC/ROHS/ISO	/
