IP65 LED Outdoor Advertising Screens P4mm SMD1921 Module Size 320*160mm
IP65 Outdoor Advertising LED Display Pixel Pitch 4mm SMD1921 Module Size 320*160
Product Description
1.Outdoor high resolution and high brightness.
2.Ingress protection being IP65, weather proof and dust proof.
3.High brightness uniformity and color uniformity.
5. Quick installation and removal with facile connection lock
SC outdoor full-color technology parameters
| Unit Module | Item | Parameter |
| Model Number | SC-P4(1921) 80*40-4L 10S-V1.6 | |
| Module size | 320mm*160mm | |
| Pixel pitch | 4mm | |
| Pixels Density | 62500dot/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD1921 | |
| Pixel resolution | 80dots(W)*40dots(H) | |
| Max Power | 27.5W | |
| Module thickness | 16mm | |
| Weight | 0.58kg | |
| Drive type | Constant drive | |
| Scan mode | 1/10 | |
| Port type | HUB75 | |
| Brightness of white balance | ≥6000～6500cd/m2 | |
|
LED Cabinet
|
Dimension | 960*960 |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/60A*3 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 960mm*960mm | |
| Best viewing distance | 4M～10M | |
| Best viewing angle | 110°(W) 110°(H) | |
| Temperature |
working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 100mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 325W/㎡ | |
| Max .Power consumption | ≤975W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥100000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
1, IP65 weather rating, ensures great quality outputs in every condition.
2,Wide color range, excellent color uniformity
3, Stable performance:superior anti UV, sulfide resistant ability, can be long-term used in outdoor
4, SMD LEDs ensure large viewing angle, up to 110° horizontally and 110° vertically.
Image no distortion, no color cast in any angle within this range, reaches to more audiences.
5, Three anti-protection: anti-corrosion, anti-static, moisture, shock, greatly improving the reliability of the product.
6.Perfect uniformity and no mosaic.

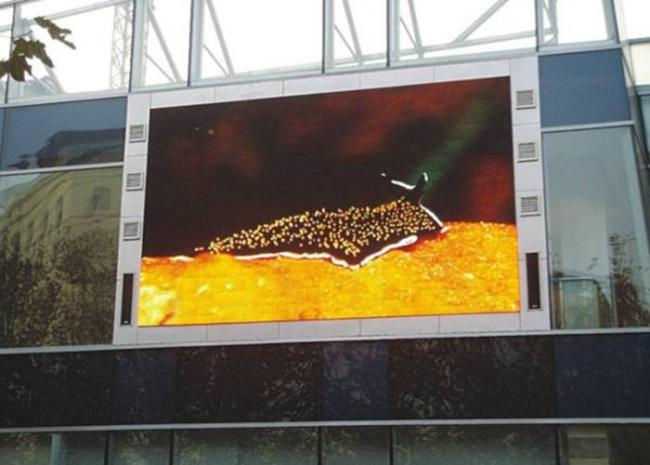

Project Show:
