70-75 Hardness 0.69 Density Epoxy Tooling Board Heat Resistant up to 110°C for CNC Machining
For over twenty years, we have been dedicated to developing innovative machinable sheets for model making, mold manufacturing, and tooling, with products meticulously designed in Guangzhou. Our LH-TOOL® solutions combine efficiency, outstanding performance, and sustainability: available in density ranges from 0.08–1.7 g/cm³, featuring fine surfaces, high dimensional stability, ease of processing, and perfectly matched adhesives and repair fillers. Tooling and models—efficient, robust, and sustainable. We also offer heat-resistant sheet materials for customer selection, with dimensions customizable according to specific requirements.

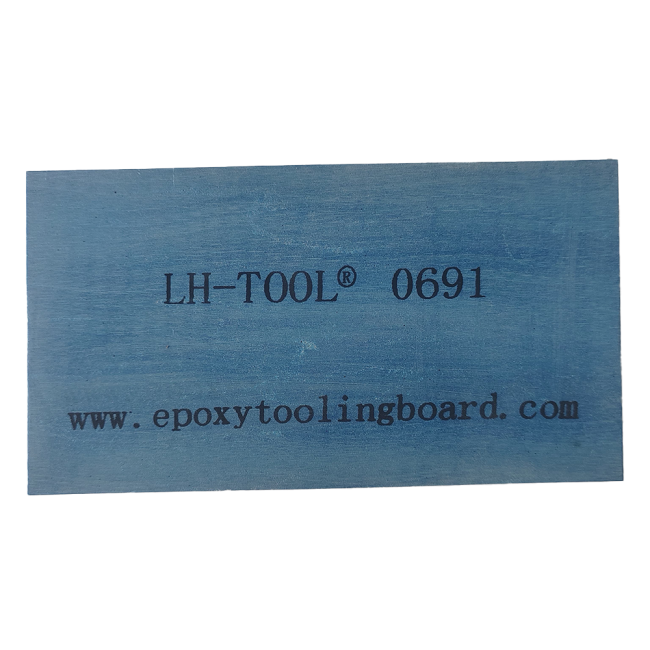

LH TOOL WB-0691 is a product of density 0.69g/cm3 Epoxy resin tooling board , It can be processed by CNC machine and is suitable for master models, styling prototypes..
Key Properties
Applications:
1 Lay-up tools for low temperature tooling prepregs
2 Vacuum forming molds
3 Medium temperature applications
MECHANICAL PROPERTIES:
Type:WB-0691
Density (ISO 1183):0.69g/cm3
Color:Blue
Shore Hardness D (ISO868):70-75
Coefficient of thermal expansion ISO11359 -10C~50C:45X10-6(1/K)
Temperature resistance HDT(ISO 75):100-110
Compressive strength (ISO604):50-60Mpa
Flexural strength (ISO178 ):25-35Mpa
Tensile strength:15-20Mpa
Dimensions:
1500 x 500 x 50mm
1500 x 500 x 75mm
1500 x 500 x100mm
1500 x 500 x150mm
1500 x 500 x200mm
