Electronic SMT PCB Assembly 1-20L Layers Counts 8% Thickness Tolerance CE Approval
Shenzhen OEM electronic PCBA production SMT pcb assembly service
Main business
1.Supply the ATM machines ,spare parts, modules and consumable parts for Wincor Nixdorf ,NCR, Diebold, GRG, Hitachi and Other Brands with new original , new generic, refurbished and used condition.
2.Do OEM according to customers’ requirement.
3.Repair and fixed service
4. Technical support and solutions
5.After-sales support
Our production capacity
|
PCB Item |
Manufacture Capacity |
|
Layer Counts |
1--20L |
|
Base Material |
FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
|
Material Thickness(mm) |
0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
|
Max board size(mm) |
1200x400mm |
|
Board Outline Tolerance |
±0.15mm |
|
Board Thickness |
0.4mm--3.2mm |
|
Thickness Tolerance |
±8% |
|
Minimum line/space |
0.1mm |
|
Min Annular Ring |
0.1mm |
|
SMD Pitch |
0.3mm |
|
Holes |
|
|
Min Hole Size(mechanical) |
0.2mm |
|
Min Hole Size(laser hole) |
0.1mm |
|
Hole Size Tol (+/-) |
PTH:±0.075mm;NPTH: ±0.05mm |
|
Hole Position Tol |
±0.075mm |
|
Plating |
|
|
HASL/LF HAL |
2.5um |
|
Immersion Gold |
Nickel 3-7um Au:1-5u'' |
|
Surface Finish |
HAL,ENIG,Plated Gold,Immersion Gold,OSP |
|
Copper |
|
|
Copper Weight |
0.5--6oz |
|
Color |
|
|
Solder mask |
Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
|
Silk screen |
White, Black, Blue,Yellow |
|
Acceptable File Format |
Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
|
Certificate |
ROSH,ISO9001,UL |
Key Specifications
· P/N: PCBA
· MOQ: 1pcs
· Price: competitive
· Prompt delivery
· High hardness
· ATM machinery parts
· Supplying many brands with ATM parts
· Design and production as per customer's requirement

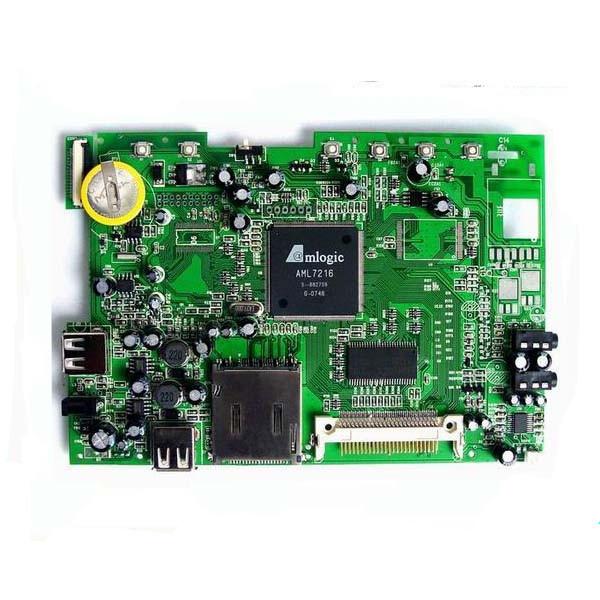

PCBA Picture
