0.1mm Tolerance PCB Prototype 2 Layers HASL Surface Treatment 2 Years Guarantee
ShenZhen 2 layer PCB reliable OEM PCB Prototype manufacturer in China
Our Company
Shinelink is a professional Hi-tech PCB manufacturer, Founded in 2004, Located in Southern China
After years of continuous efforts Shinelink has growth with the rapid of Chinas economy
Shinelink PCB Group has two professional PCB manufacturing factories:
Production range: 1-18 layer PCB, HDI PCB, Al base, Teflin, FPCB, PCBA
Production capability: 500,000 square meters per month
Our Service
PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,CEM-1 )
PCB FPC design Service.
PCB Assembly Service. (SMT, BGA, DIP)
PCBA Housing assembly serivce.
PCBA Final Functional Testing.
PCB PCBA Copy Service.
Electronic Components Purchasing & BOM List Purchasing Services.
PCB SMT Stencil. (Laser cut & Etching)
Our Capacity
Item | Capability---Technology |
Standard | IPC-A-610 E Class II-III |
Laminate/Base Material | FR-4 / PI (FPC) / High TG FR-4 / Halogen Free material/Rogers/Arlon/ |
Layers | 1-22 |
Finised inner/outer copper thickness | 1-6 OZ |
Board Thinkness | 0.2-5.0mm |
| Mechanical hole: 0.15mm |
Laser hole: 0.1mm | |
Min line width/space | 0.075mm/0.075mm |
Min line Gap | +/-10% |
Aspect Ratio | 12:1 |
Controlled Impedance | <= +/-10% |
Solder Mask Color | Green,Blue,Black,White,Yellow,Red,Grey,Purple etc.. |
Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
Surface treatment | HASL, HASL lead free, Immersion Gold,ENEPIG, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP... |
Tolerance of dimension size | +/-0.1mm |
Capacity | 35000sq/Month |
CAM Capability | 40 item |

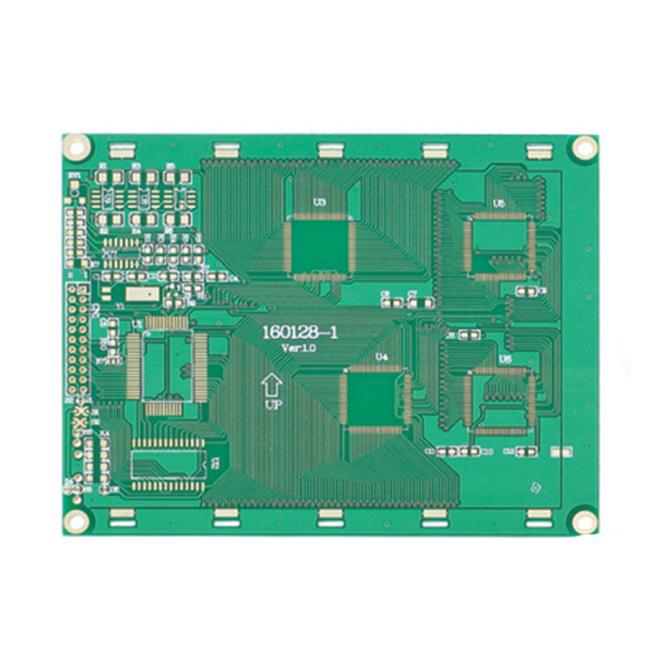

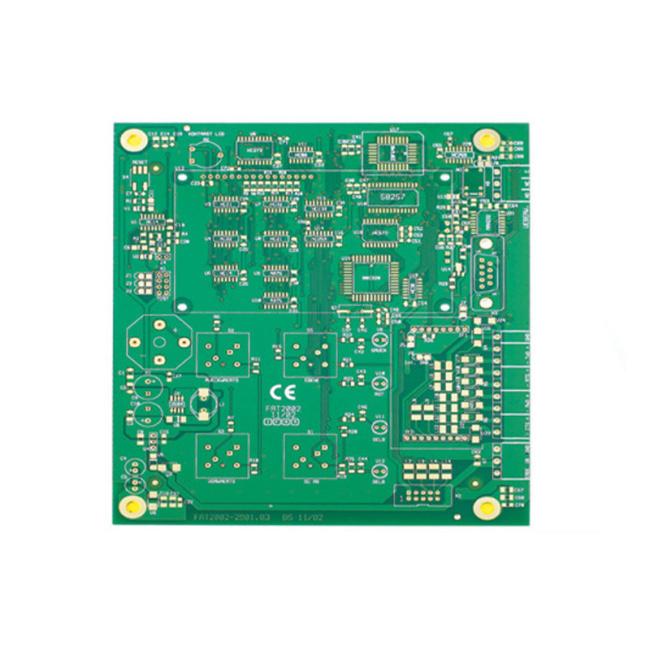

PCB Photos
