FR4 PCB Surface Mount Prototype Board 94V-0 Blue Soldermask RoHS Certificated
FR4 PCB Prototype HASL 94V-0 RoHS PCB board OEM in China Shenzhen
Specifications
FR4 94V-0 RoHS PCB board
Manufacturer Specifications
Layer: 2 layers
Base Material: FR4
Copper Thickness: 35um
Board Thickness: 1.0mm
Min. Hole Size: 0.22mm
Min. Line Width: 0.18mm
Min. Line Spacing: 0.17mm
Our Service
PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,CEM-1 )
PCB FPC design Service.
PCB Assembly Service. (SMT, BGA, DIP)
PCBA Housing assembly serivce.
PCBA Final Functional Testing.
PCB PCBA Copy Service.
Electronic Components Purchasing & BOM List Purchasing Services.
PCB SMT Stencil. (Laser cut & Etching)
Product Description
High Quality LED Electronic PCB Manufacturer, Customized led pcb
Customized Circuit Board
100% E-testing
Accept Sample and Bulk Order
PCB Capacity
|
Item
|
Capability---Technology
|
|
Standard
|
IPC-A-610 E Class II-III
|
|
Laminate/Base Material
|
FR-4 / PI (FPC) / High TG FR-4 / Halogen Free material/Rogers/Arlon/
Taconic/Teflon/CEM-3/PTFE/Aluminum /BT
|
|
Layers
|
1-18
|
|
Finised inner/outer copper thickness
|
1-6 OZ
|
|
Board Thinkness
|
0.2-5.0mm
|
|
Min hole size
|
Mechanical hole: 0.15mm
|
|
Laser hole: 0.1mm
|
|
|
Min line width/space
|
0.075mm/0.075mm
|
|
Min line Gap
|
+/-10%
|
|
Aspect Ratio
|
12:1
|
|
Controlled Impedance
|
<= +/-10%
|
|
Solder Mask Color
|
Green,Blue,Black,White,Yellow,Red,Grey,Purple etc..
|
|
Outline profile
|
Rout/ V-cut/ Bridge/ Stamp hole
|
|
Surface treatment
|
HASL, HASL lead free, Immersion Gold,ENEPIG, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP...
|
|
Tolerance of dimension size
|
+/-0.1mm
|
|
Capacity
|
35000sq/Month
|
|
CAM Capability
|
40 item
|

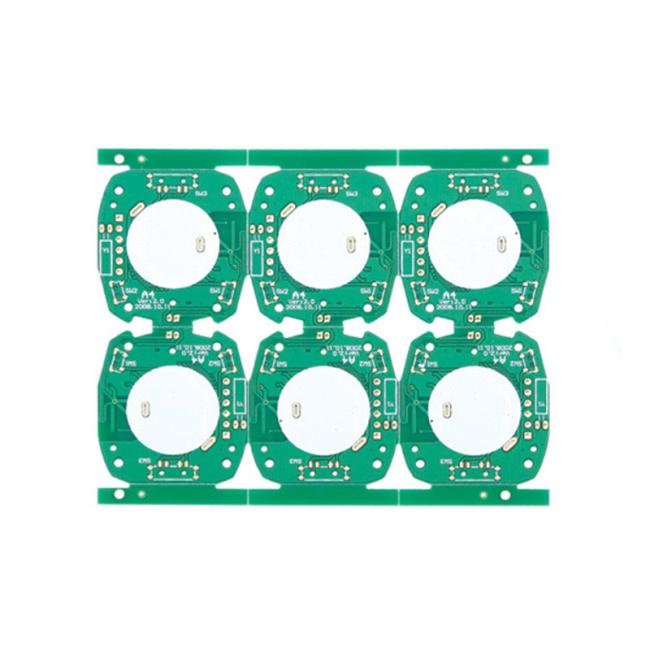

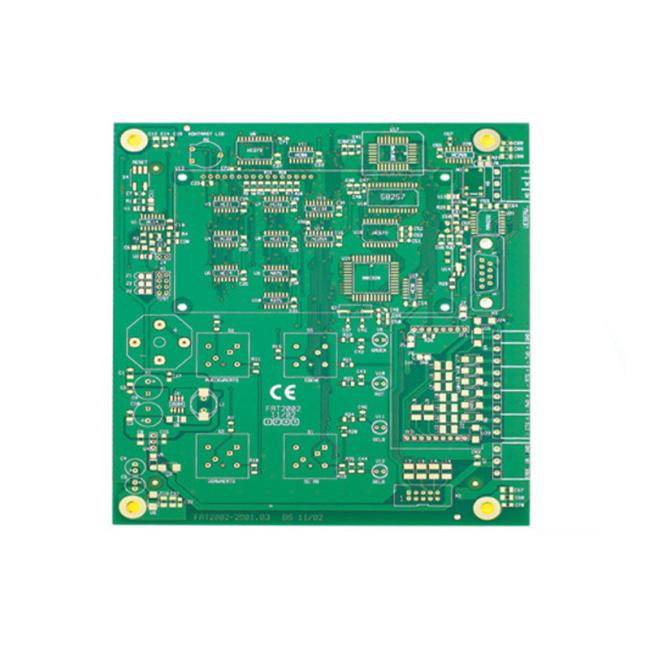

PCB Photos
