Copper Base PCB Prototype Circuit Board 0.2-4.0mm Thickness Good Thermal Conductivity
Copper base PCB Prototype good thermal conductivity PCB circuit board
Product Description
Base Material: FR1, 22F, CEM-1, CEM-3, FR4, High TG, Aluminum, Ceramic, Rogers
Board Thicness: 0.20mm-4.0mm
Copper Thickness: 0.5oz-6oz
Surface Finishing: Immersion Gold/Silver/Tin, Gold Finger, OSP, HASL, Lead Free HASL, Gold Planting
Solder Mask Color: Green, Blue, White, Black, Yellow
Silk Screen Color: White, Black
Other Technique: High Density, HighFrequency, High Precision, BGA, Buried & Blind Vias, Slot PCB
Packaging
Inner Packing: Vacuum Package + Dryer
Outer Packing: Standard Carton Box + Bulb Package
Our Service
PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,CEM-1 )
PCB FPC design Service.
PCB Assembly Service. (SMT, BGA, DIP)
PCBA Housing assembly serivce.
PCBA Final Functional Testing.
PCB PCBA Copy Service.
Electronic Components Purchasing & BOM List Purchasing Services.
PCB SMT Stencil. (Laser cut & Etching)
Product Description
High Quality LED Electronic PCB Manufacturer, Customized led pcb
Customized Circuit Board
100% E-testing
Accept Sample and Bulk Order
PCB Capacity
|
Item
|
Capability---Technology
|
|
Standard
|
IPC-A-610 E Class II-III
|
|
Laminate/Base Material
|
FR-4 / PI (FPC) / High TG FR-4 / Halogen Free material/Rogers/Arlon/
Taconic/Teflon/CEM-3/PTFE/Aluminum /BT
|
|
Layers
|
1-18
|
|
Finised inner/outer copper thickness
|
1-6 OZ
|
|
Board Thinkness
|
0.2-5.0mm
|
|
Min hole size
|
Mechanical hole: 0.15mm
|
|
Laser hole: 0.1mm
|
|
|
Min line width/space
|
0.075mm/0.075mm
|
|
Min line Gap
|
+/-10%
|
|
Aspect Ratio
|
12:1
|
|
Controlled Impedance
|
<= +/-10%
|
|
Solder Mask Color
|
Green,Blue,Black,White,Yellow,Red,Grey,Purple etc..
|
|
Outline profile
|
Rout/ V-cut/ Bridge/ Stamp hole
|
|
Surface treatment
|
HASL, HASL lead free, Immersion Gold,ENEPIG, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP...
|
|
Tolerance of dimension size
|
+/-0.1mm
|
|
Capacity
|
35000sq/Month
|
|
CAM Capability
|
40 item
|

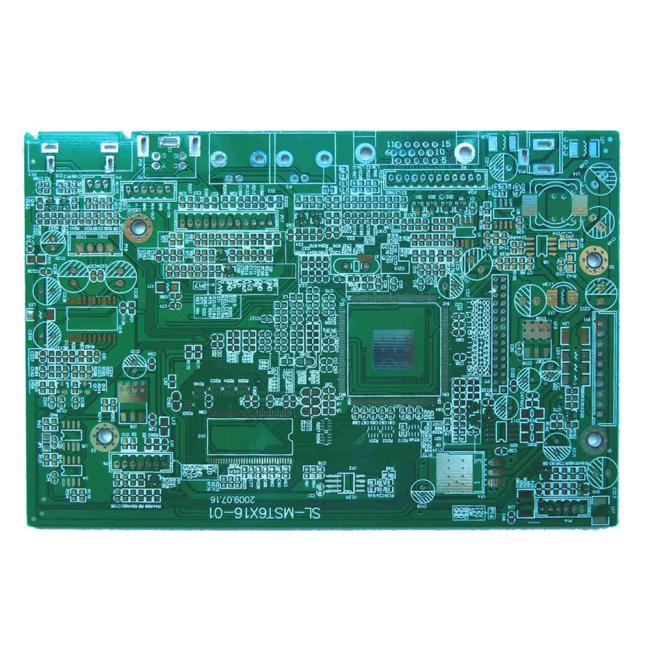

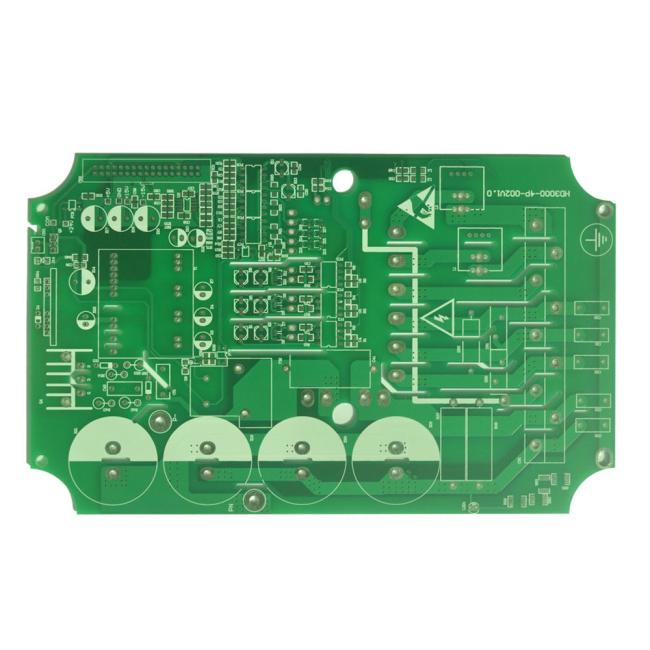

PCB Photos
