2x1300mm Slitting Line
2*1300mm Slitting Line
The Slitter Line is used to slit the thin steel strip in coil into several narrow strips of certain size. The slit strips are then rewound into coils, for which welded pipes, cold-formed sections and presswork are manufactured.
The lines are composed of high-precision slitters with quick tooling change for slitter, tensioning device and recoiler. High-capacity recoilless . Extraction from coils without banding. Scrap baller or scrap choppers. Moving tensioning devices with incorporated leveling.
Working Process:

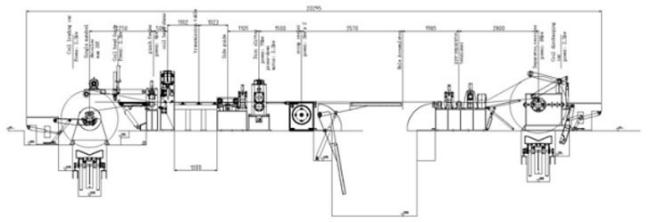

Coil car→ Uncoiler → Coil peeler and leveler→ Crop shear → Passing bridge→ Guide unit→ Slitting machine→ Scrap baller→ Pit accumulator→ Pre-separator→ Tension unit, overarm separator→ Re-coiler→ Coil discharging car→ (Turnstile). The hydraulic Unit and PLC Control.
SPECIFICATIONS:
| - Material to be processed | : Hot rolled, cold rolled steel. |
| - Yield strength | : Max. 460Mpa |
| - Material thickness | : 0.4~2.0mm |
| - Slitting width | : 500~1300mm |
| - Slitting piece | Max.20 strips |
| - Line Speed | : Max.120m/min |
| - Raw coil weight | : 15,000kg |
| - Min. slit width | : 40mm |
| - Total power | : 110kW |
We always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content line from us.
For more information about coil slitting machine, please send us inquiry.
