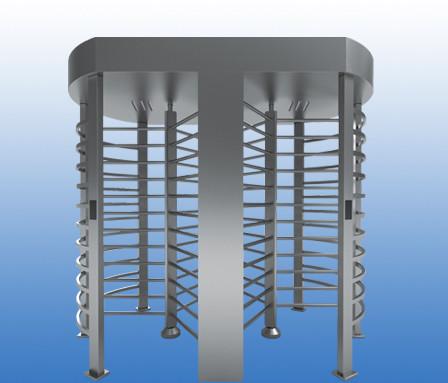

Full Height Turnstile

Full Automatic Type

KT503 Double-Lane

……

Product Descriptons:
◆ Full Height Turnstile developed by Koten is available for any area which needs a high level of security without persons to monitor.
◆ The machine is well designed to be rustproof, durable and able to resist external destroy.

◆ Full Height Turnstile with 4-arm obstacle: the center rotor rotates 90 degrees per time, and it offers a higher level of security but less

space for users.

Full-Automatic Type:

◆ The center rotor will be set free (default) or locked (optional) automatically when the power is off.
◆ Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be

remote-controlled whether the power is on or not.
◆ The structure has motor.

◆ The rotors rotates automatically after pushing a little angle while opening signal is received.

◆ Anti-reverse function is available.

Function Specifications:
◆ Both directions can be set as controlled mode or free mode.
◆ NO mode & NC mode can be switched over by users easily & freely.
◆ Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
◆ With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
◆ Each machine can be set by Physical Address (Optional).

◆ Unlock for free-access while power off


Framework Specifications:
◆ Framework: 316 grade stainless steel or customized material

◆ Dimension:
◆ Thickness of Ply: 1.5mm (Standard) / 2.0mm
◆ Finishing: Brushed surface
◆ Arm Length: 610mm
◆ Arm Diameter: 38mm
◆ Max Tolerance of Arm: 30kg
◆ Driving Force of Arm: 3kg


Electric Specifications:
◆ Power Voltage: AC220V 50Hz(Standard) / AC85~240V 50or60Hz
◆ Operation Voltage: DC24V
◆ Operation Current: 3A / 5A (Max)
◆ Driving Motor: Brush DC24V motor
◆ Communication Interface: RS485 / RS232;

• Control I/O: Relay Out / Level Input
  ◆ Transit Speed: 20~35 passage / minute
  ◆ Temperature: -20℃~60℃
  ◆ Work Environment: Indoor/ Outdoor (Shelter)
  ◆ With Traffic-light Indication(Red cross, green arrow)


  Customized Features:
  ◆ Alternative Materials, Finishes and Custom Design
  ◆ Access control System Integration
  ◆ Ticket System Integration
  ◆ Camera System Integration
  ◆ Thermostat System Integration
  ◆ Remote-Controlled Button
  ◆ Usage Counters
  ◆ Waterproof and Dustproof Design: IP65

  Applications:
  ◆ Prison
  ◆ Office building
  ◆ Government
  ◆ School
  ◆ Hotel
  ◆ Super market
  ◆ Bank
  ◆ Park
