12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck
1. Classified by appearance:
Single axle dump trucks, double axle dump trucks, flat end dump trucks, pointed dump trucks, front
four rear eight dump trucks, double axle semi trailer dump trucks, and three axle semi trailer dump
trucks.
2. Classified by the link form between the lifting hydraulic cylinder and the carriage:
Direct push tilt mechanism; Linkage type tilt mechanism.
3. Classified by purpose:
Agricultural dump trucks, mining dump trucks, garbage dump trucks, coal transportation dump trucks,
construction machinery dump trucks, and sludge dump trucks.
4. According to the different driving modes, it can also be divided into 6x4, 8x4 dump trucks, and semi
trailer dump trucks.
5. According to different uses, it can also be divided into mining dump trucks, used for transporting coal
mines, sand and gravel; Sanitation and greening dump trucks, used for transporting garbage, etc.
6. There are also front lift and side flip dump trucks based on the direction of the car's overturning. At
present, there are also two-way rollover dump trucks, mainly used in construction projects.

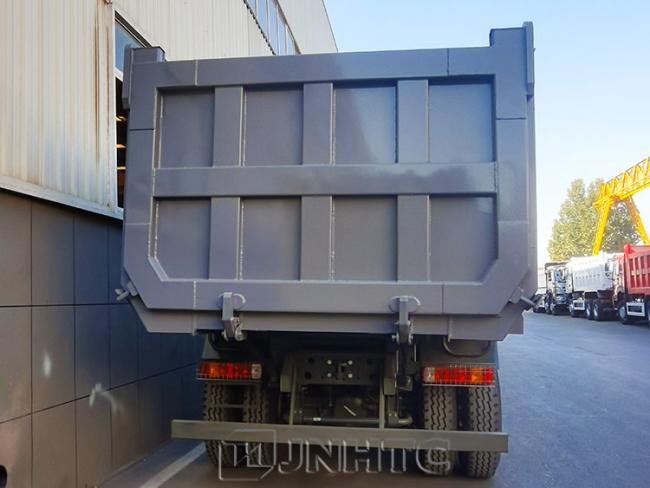

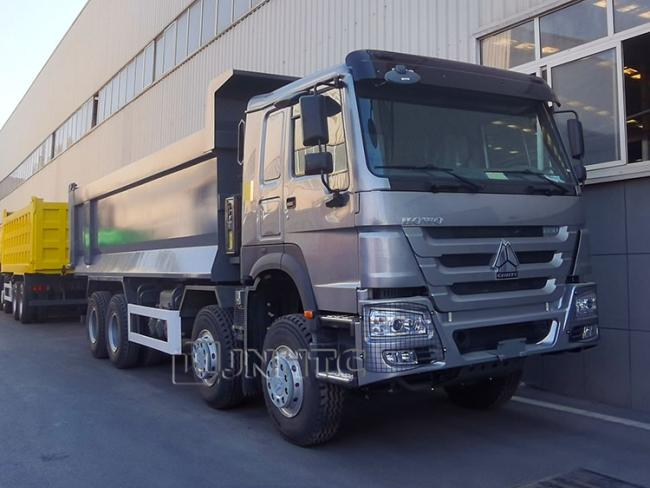

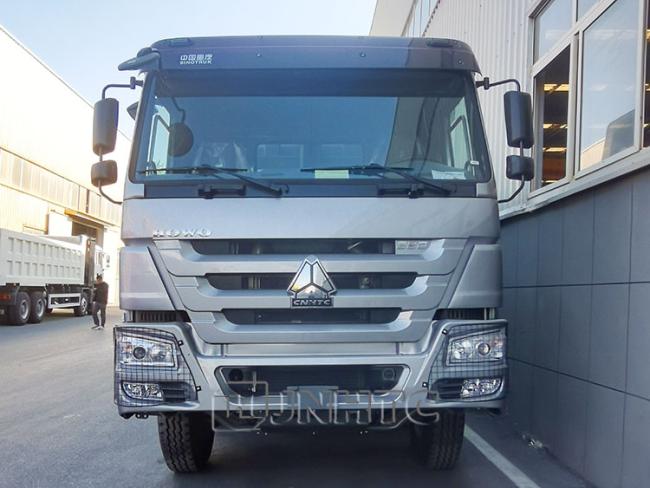

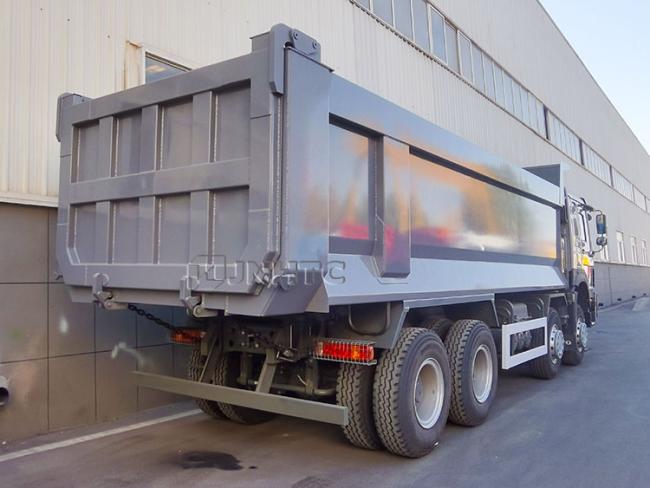

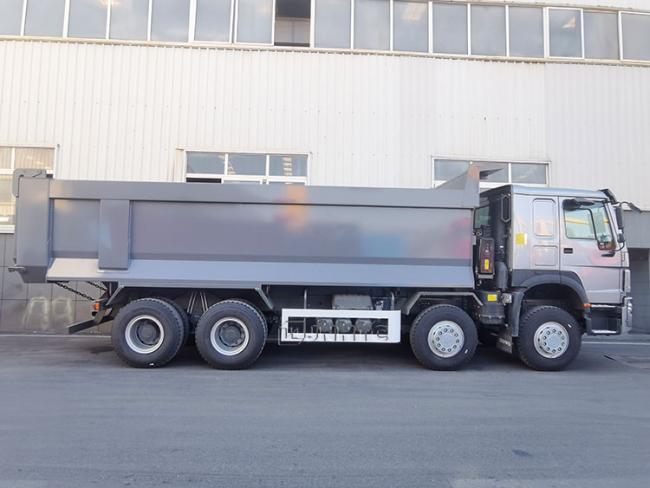

HOWO 8×4 dump truck
| Howo 8*4 dump truck | |||
| Cabin | HW70(NO BED);HW76(SINGLE BED；air -conditioning as standard | ||
| engine | Model | Wd615.69 | Wd615.47 |
| Fuel | Diesel | ||
| Displacement | 9.726L | ||
|
Emission Standard |
EURII | ||
| Power | 247(336)/2200 | 273(380)/2200 | |
| torque | 1350/1100-1600 | 1500/1100-1600 | |
| transmission | model | HW19710 10 forward and 2 reverse | |
| Control model | MT | ||
| Front axle | HF9 drum-type rated load of 9tons | ||
| Rear axle | HC16 16tons speed ratio:3.93 4.42 4.8 5.73 | ||
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance | ||
| steering | ZF8118 left | ||
| Suspension | Leaf spring suspension | ||
| Fuel tank | 300L | ||
| tyres |
12.00R20tube Option:11.00-20tube 12R22.5tubless 315/80R22.5tubless |
||
| Wheel base(MM) | 1800+3800+1350 | ||
| Box sizes | 7800*2300*1500 | ||
| Box thickness | Bottom 8mm and side 6mm | ||
Advantage:
Due to the automatic tilting of the loading carriage at a certain angle for unloading, it greatly saves unloading
time and labor, shortens transportation cycles, improves production efficiency, and reduces transportation
costs. It is a commonly used specialized transportation vehicle.
