Selection of chassis and top mounting for dump trucks

The dump truck mainly consists of a hydraulic dumping mechanism, carriage, frame, and its accessories.

Among them, hydraulic dumping machine

The structure and carriage structure vary from manufacturer to manufacturer, and the following are two

aspects based on the type of carriage and lifting mechanism:

The structure of the dump truck.

​

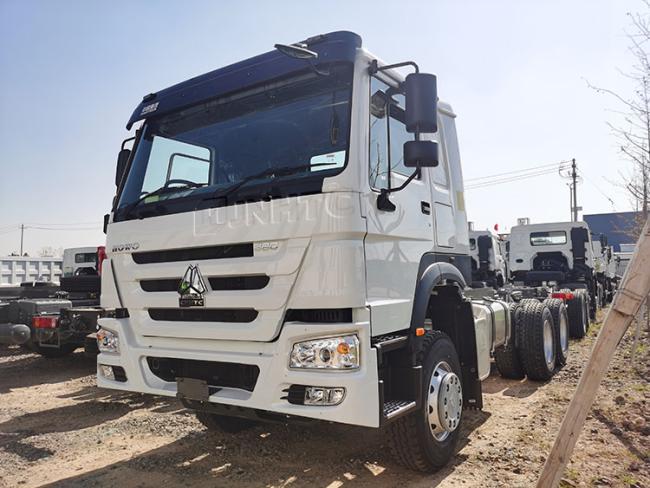

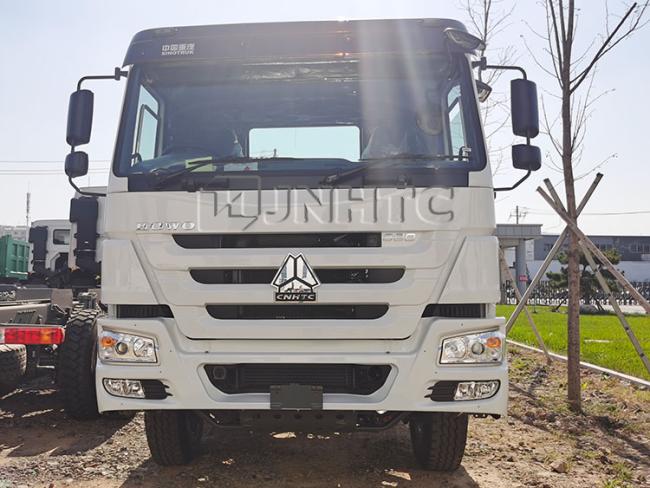

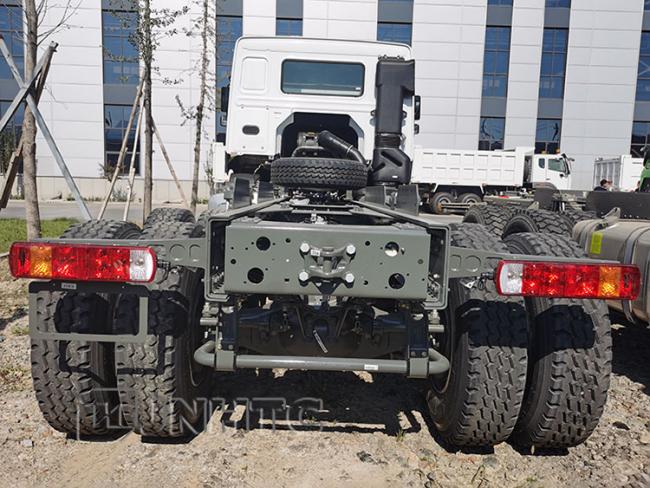

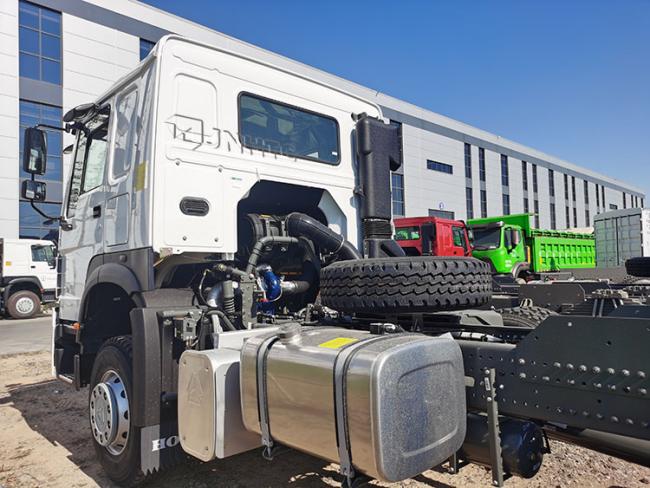

Howo 6*4 Dump Truck Chassis

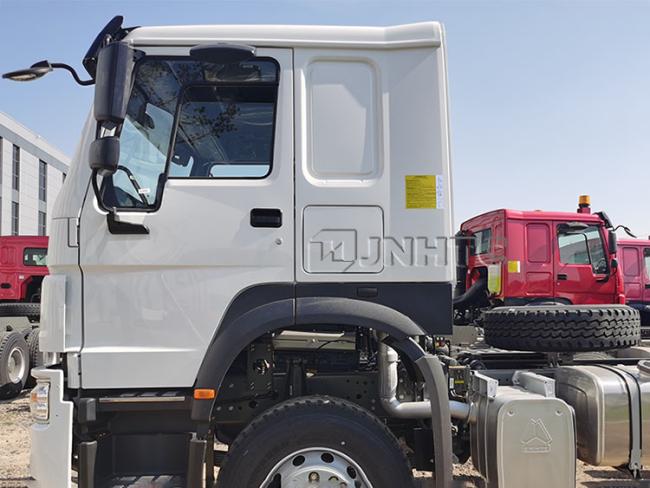

Cabin		HW70(NO BED);HW76(SINGLE BED)
engine	Model	Wd615.62		Wd615.87		Wd615.69
	Fuel	Diesel
	Displacement	9.726L
	Emission Standard	EURII
	Power	196(266)/2200		213(290)/2200		247(336)/2200
	torque	1100/1100-1600		1160/1160-1600		1350/1100-1600
transmission	model	HW19710
	Control model	MT
Front axle		HF9 drum-type rated load of 9tons
Rear axle		St16 16tons speed ratio:3.93 4.42 4.8
Clutch		Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance
steering		ZF8098
Suspension		Leaf spring suspension
Fuel tank		300L
tyres		12.00R20

​

Car type

The configuration of the carriage structure can be roughly divided into ordinary rectangular carriages and

mining bucket carriages according to their different purposes

(As shown in the right figure).

(1) Ordinary rectangular carriages are used for the transportation of bulk goods. The rear panel is equipped

with an automatic opening and closing mechanism to ensure the goods are delivered

The object was unloaded smoothly. The thickness of the ordinary rectangular carriage plate is: front plate

4-6, side plate 4-8, rear plate 5-8, and bottom plate 6-12.

For example, the standard configuration plate thickness for a regular rectangular carriage of a Shaanxi

Automobile brand dump truck is: 8 on the bottom and 4 on the sides.

(2) The mining bucket carriage is suitable for transporting goods with larger particle sizes such as large

stones. Considering the cargo's

Impact and collision, the design shape of the mining bucket carriage is complex and the materials used are

thick. For example, Shaanxi Automobile brand dump truck

The standard configuration of the mining bucket carriage has a plate thickness of 10 sides and 6 sides at

the bottom, and some models have some corners welded on the bottom plate

Steel to increase the stiffness and impact resistance of the carriage.
