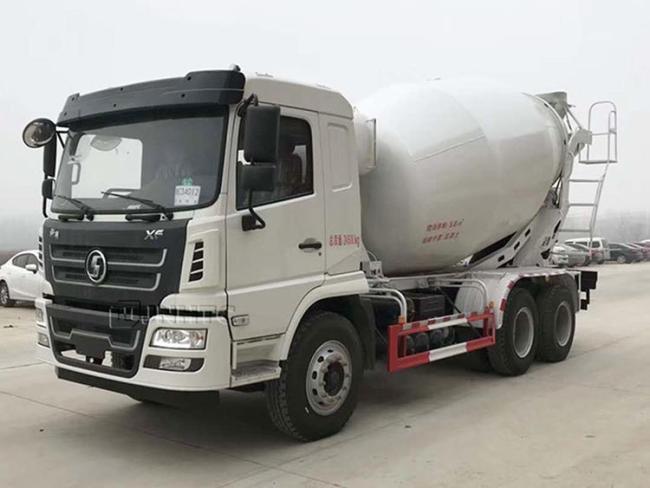

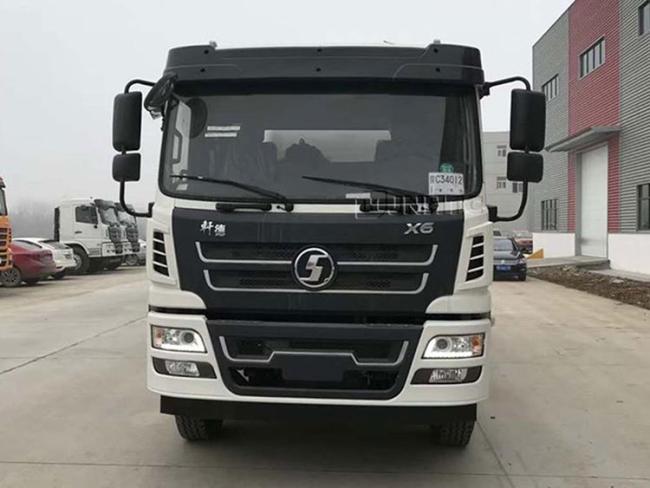

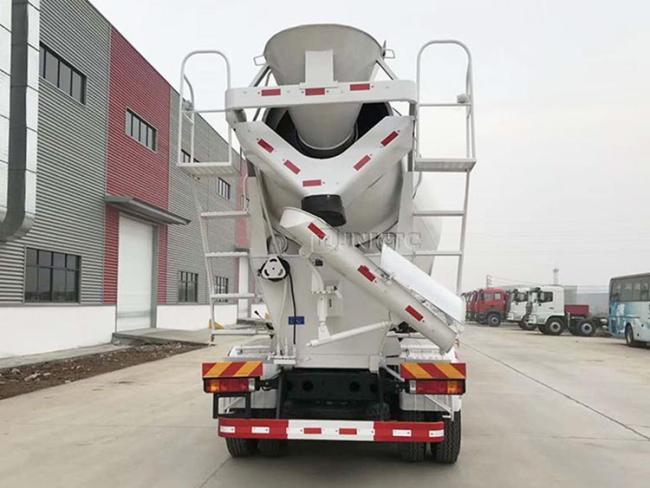

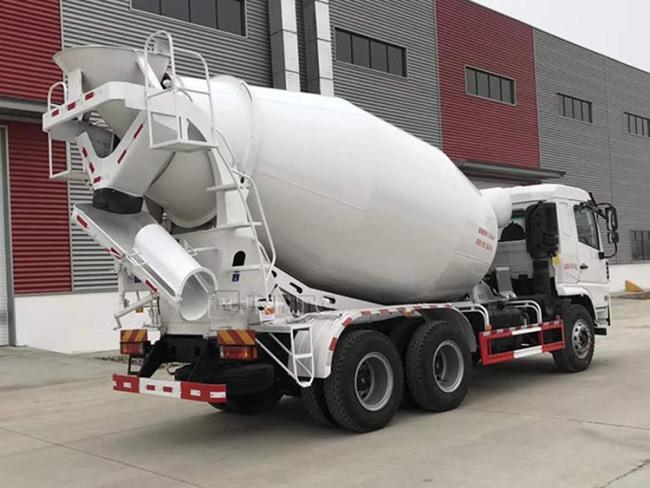

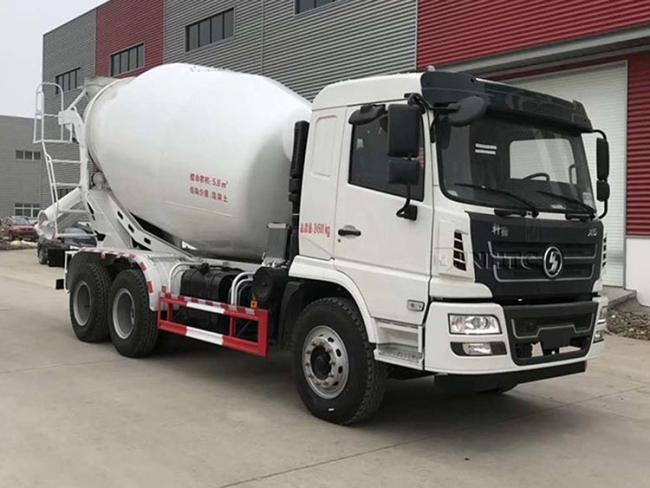

Shacman Concrete Mixer Truck 6X4 10wheels X6 LNG CNG Truck-Mounted Mixer Agitating
Shacman Concrete Mixer Truck 6X4 10wheels X6 LNG CNG Truck-Mounted Mixer Agitating
| Model | SX5255GJBK1Y24B3640 | ||
| Basic Configuration | Driving Type | 6×4 | |
| Vehicle Body(mm) | X6半高项/2220 | ||
| Engine | Engine Power | 240 | |
| Emissions | EuroⅢ-EuroⅥ | ||
| Wheelbases(mm) | 3600＋1300 | ||
| Chassis(mm) | 280/8+4 double | ||
| shifting | 8Forward GearMT+2Reverse Gear | ||
| Front Axle | 5 T | ||
| Rear Axle | 10 T/5.571 | ||
| Leaf Spring | 9/1 0 | ||
| Tyres | 10.00R20/18PR | ||
| Tank volume | 6m³ | ||
| Oil Tank | 280L iron | ||
| Functional configuration | Power Steering | ● | |
| Clutch Booster | ● | ||
| Electric Power Windows and Doors + Central Lock | ● | ||
| Remote Control Key | ● | ||
| Air Conditioner | ● | ||
| ABS | ● | ||
| Multimedia | ○ | ||
| Metallic Paint | ○ | ||
| ●Standard Configuration○Optional/No such Configuration | |||
The concrete mixing and transportation vehicle is composed of a car chassis and a specialized device for
concrete mixing and transportation. The chassis of concrete mixing transport vehicles produced in China
mostly adopts the Class II universal chassis provided by the vehicle manufacturer. Its specialized mechanisms
mainly include power take-off, front and rear brackets of the mixing drum, reducer, hydraulic system, mixing
drum, control mechanism, cleaning system, etc. The working principle is to extract the power from the car
chassis through a power take-off device and drive the variable displacement pump of the hydraulic system
to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then
drives the reducer, which drives the mixing device to mix concrete.
