Howo High Altitude Operation Truck 4x2 Light Truck With 16M Aerial Working Platform

Price Negotiable
Price: $21000
MOQ: 1
Delivery Time: 35 days
Brand: Howo Aerial Brand
Product Description

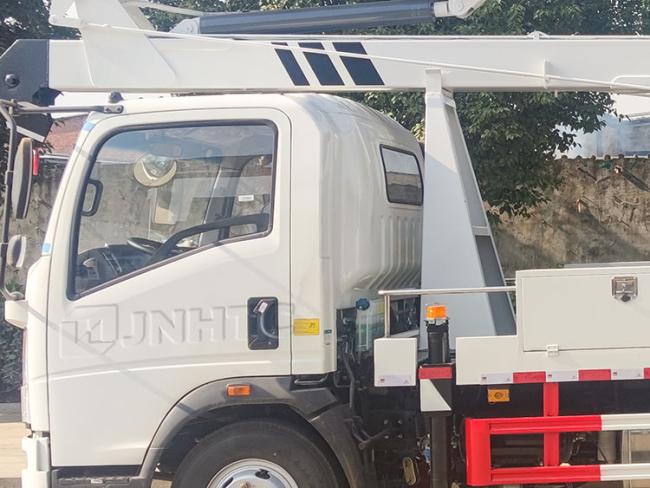

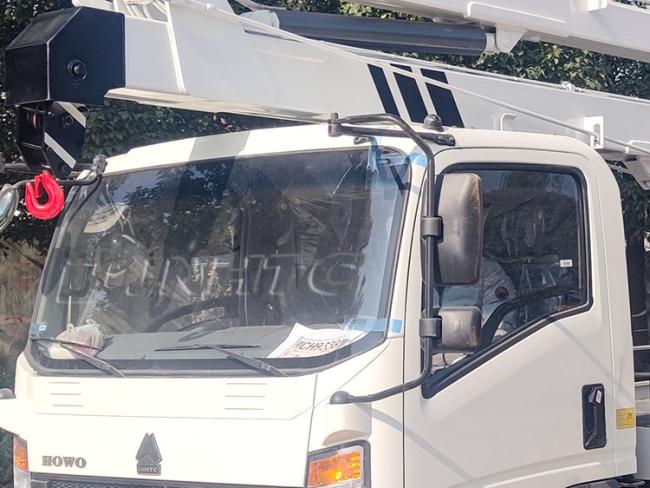

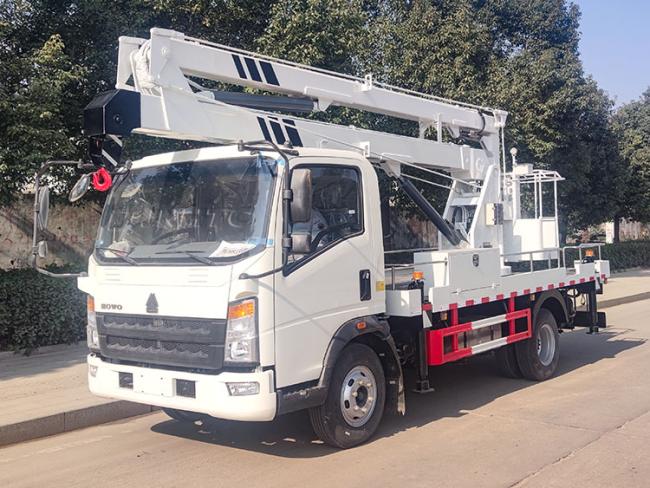

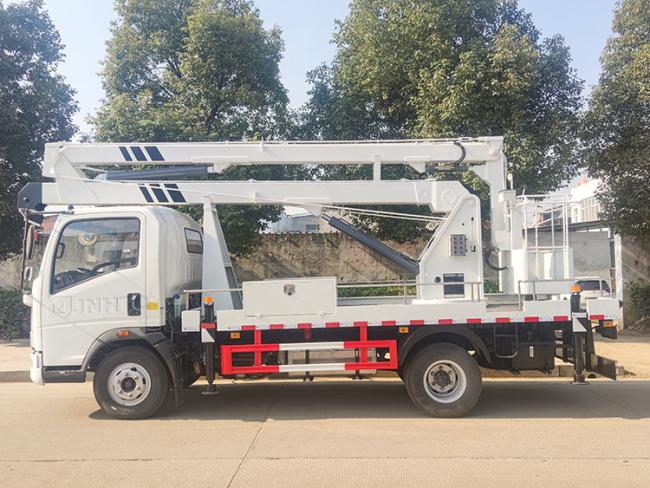

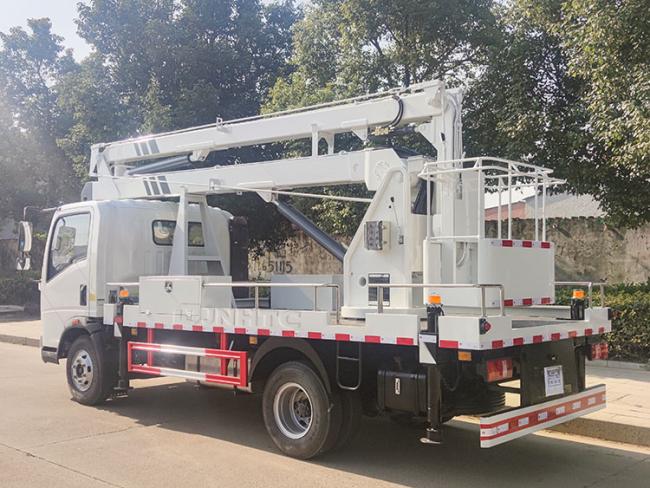

Howo High Altitude Operation Truck 4x2 Light Truck With 16M Aerial Working Platform



HOWO 4×2 LIGHT TRUCK WITH 18M AERIAL WORKING PLATFORM

Model
ZZ1127G471CD1
Engine
MC05.18-40 180HP, EURO IV
Cab
2080 Half cab,With Air Conditioner,
Transmssion
WLY6T50C ,6 forward,1 reverse;
Wheelbase
4700mm
Front Axle
3.6TONS
Rear Axle
8.0TONS
RATIO
4.333
Tires
9.00R20 , with one spare tire
Fuel tank
300L
Color
White
With ABS

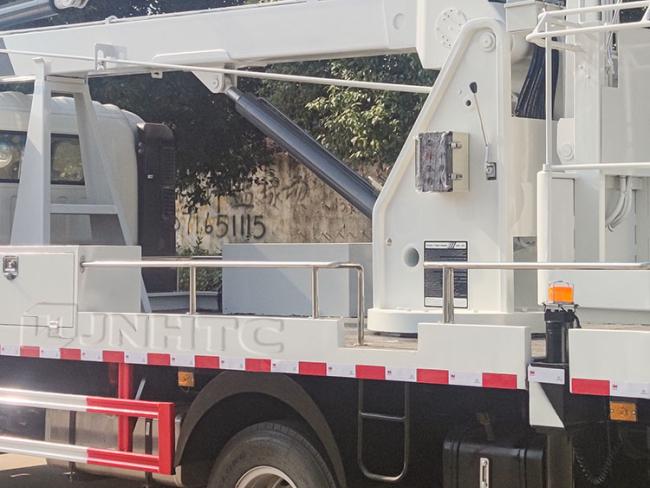

Aerial working platform

three-section folding arm,

Maximum operating radius
7m,
Maximum working height
16m.
360°rotation.

The maximum lifting quality is 1000kg,

The maximum lifting height is 6.4m.

Outrigger span vertical X horizontal (mm)
3300X3380.
The rated load of hanging blue is ≤200kg.

Hanging blue size
1080X610X1100mm,
External pull rod mechanical leveling, with oil cylinder locking function, two-position operation of

turntable and crane. Electro-hydraulic operation, all four legs stretch out horizontally, and all

balance rods are solid.




Aerial work vehicle is a special vehicle specially used for aerial work. It has the following characteristics:
Mobility: The ability to move flexibly from one workplace to another.
Lifting function: Through the mechanical structure to achieve the lifting of the platform, so that the staff to

reach the height.
Work platform: Provide a safe working position for the staff.
Safety protection: equipped with safety devices, such as guardrail, safety belt, etc. Its main uses include:
Building maintenance: such as cleaning exterior walls, installing billboards, etc.
Power maintenance: overhauling transmission lines, etc.
Tree pruning: Pruning of trees on high ground.
Street lamp maintenance: replace the lamp, repair the circuit, etc. There are various types of aerial work

vehicles, common ones are:
Arm type aerial work vehicle: through the telescopic arm to achieve lifting.
Scissor fork aerial work vehicle: the use of scissor fork structure for lifting. When selecting a high-altitude

working vehicle, factors such as working height, load capacity and stability should be considered.
