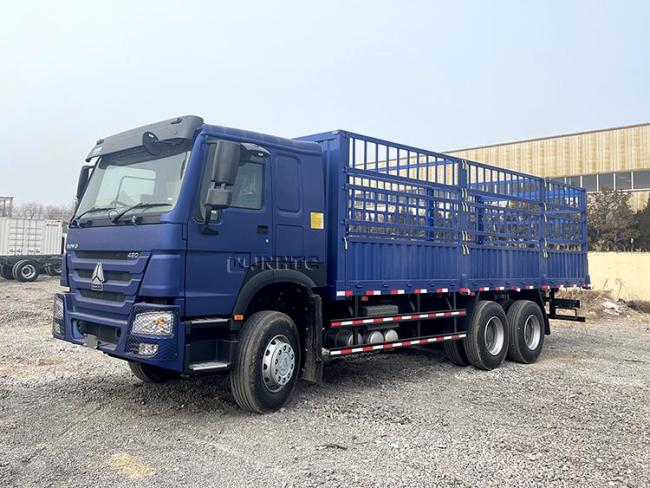

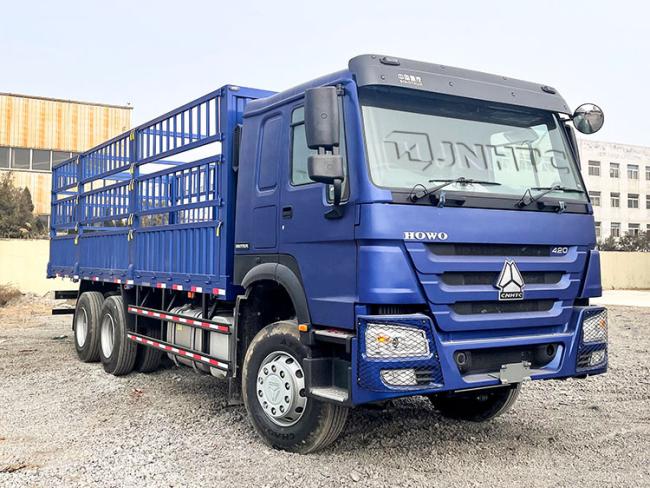

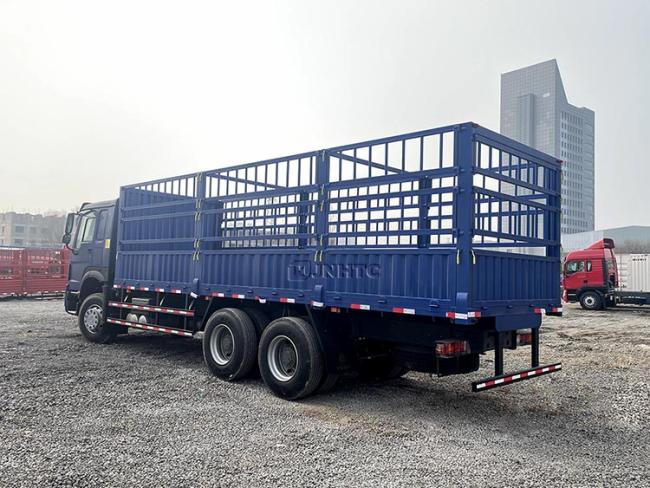

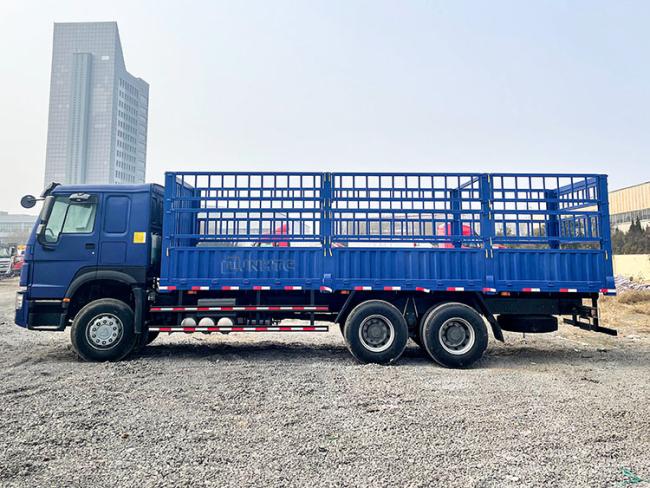

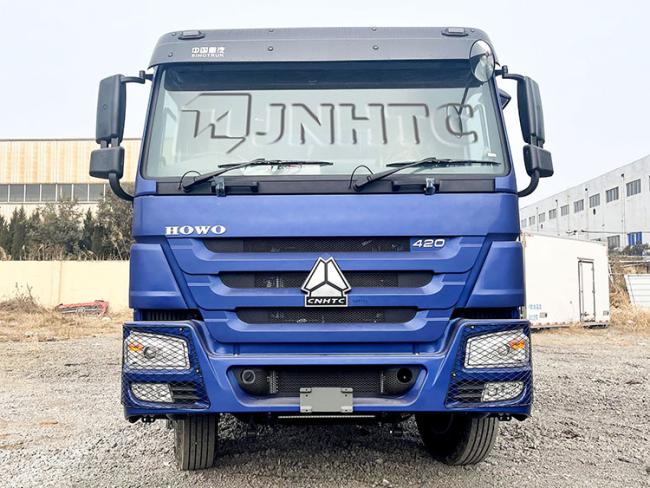

Best Howo Cargo Truck 6x4 10 Wheeler 420HP New Heavy Sinotruck Lorry Fence Cargo Trucks Hot Sale

Price Negotiable
Price: USD41000 for one unit
MOQ: 1
Delivery Time: 5 working days
Brand: SINOTRUK
Product Description



A fence cargo truck is a type of vehicle specifically designed for transporting goods that need to be

secured or contained within a fenced or enclosed area on the truck bed. This setup is ideal for

carrying materials like construction supplies, livestock, or equipment that might need protection or

containment during transit. Here are some key features and considerations:

  1. Fencing or Enclosure: The truck bed is equipped with fencing or mesh panels around the

  2. sides and often the rear. This fencing helps secure the cargo and prevent it from falling off

  3. or shifting during transport.

  4. Cargo Security: The fence or enclosure ensures that items remain in place and are less

  5. likely to be damaged or lost. It also helps in transporting items that might be hazardous or

  6. require special handling.

  7. Types of Fencing: The fencing can vary depending on the cargo being transported. It could

  8. be made of metal mesh, solid panels, or a combination of materials. Some designs may

  9. include a tailgate or rear door for easy loading and unloading.

  10. Loading and Unloading: The truck may be equipped with features like a hydraulic lift gate

  11. or ramps to facilitate the loading and unloading of cargo.

  12. Applications: Fence cargo trucks are commonly used in industries such as agriculture (for

  13. transporting livestock), construction (for transporting tools and materials), and logistics (for

  14. carrying goods that need to be secured).





Model ZZ1257N4341W

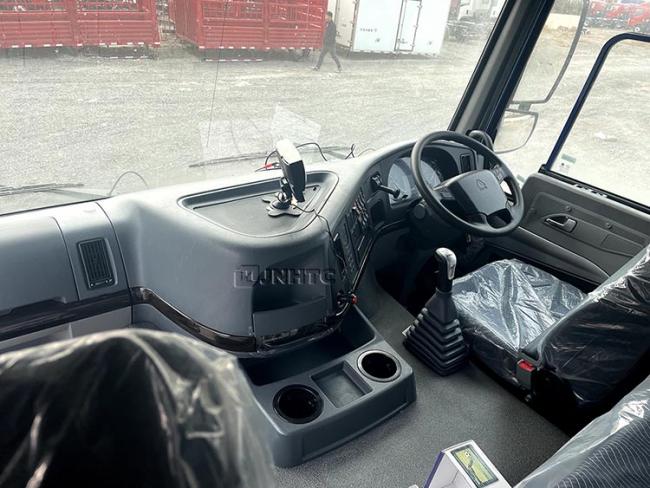

Cabin HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating
and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse
stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler

Engine
Model WD615.47
  Horse Power (Hp/rpm) 400/2200
  Max.Toruqe(Nm/rpm) 1820/1100-1500
  Displacement (L) 9.726
  Type DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic
controlled diesel engine
Clutch Φ430 Diaphragm spring clutch, hydraulic operating with air assistance
Transmission HW19712, 12 speeds forward and 2 speeds reverse.
Front Axle HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.
Driving Axle HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42,
4.8)
Suspension Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs,
bogie spring and stabilizer
Steering System ZF power steering, model ZF8118, hydraulic steering with power assistance
Brake System Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating;
Auxiliary brake: Engine exhaust brake
Electrics Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah
Tire 12.00R20
Fuel Tank(Gas Tank) Capacity (L) 400L Diesel Tank
Dead Weight (kg) 12530
Gross Vehicle Weight (kg) 33000
Gross Combination Weight (kg) 80000
Overall Dimension(L*W*H)(mm) 8145×2560×3450
Wheelbase(mm) 5000+1350
Front/Rear Overhang( mm) 1500/725
Wheel Track(Front/Rear)(mm) 2022/1850
Min. Ground Clearance(mm) 314
Approach/Departure Angle( °) 16/70
Max. Speed (km/h) 92
Max. Gradebility (%) ≥40

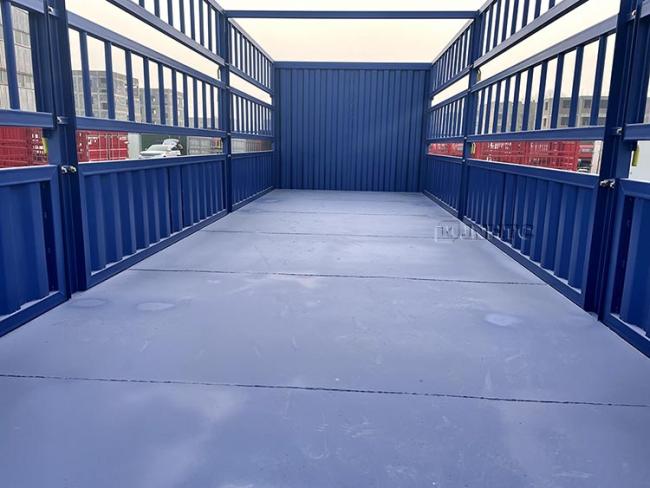

Bucket Size 7500*2300*1800mm
