Howo 4x2 Mounted High Altitude Operation Truck Bucket Truck Aerial Working Platform Truck For Street Light Maintenance
Technical Specifications of the HLW5050GJKE Aerial Work Truck
| Chassis parameters | |||||
| Chassis model | EQ1060TJ20D3 | Chassis brand | DONGFENG | ||
| Overall dimensions | 5860X1900X2080mm | Wheel base | 3300mm | ||
| Front/rear wheel track | 1750/1586mm | Front/rear suspension | 1180/1590mm | ||
| Approach/departure angle | 22/23° | Maximum speed | 80km/h | ||
| Chassis Manufacturer | Dongfeng Automobile Co., Ltd | ||||
| Cab | Configuration |
Cab width: 1730mm, single cab,power-assisted steering, camel battery (24V maintenance free), pneumatic brake system |
|||
| Color | Yellow, other color is optional | ||||
| Engine | Model | CY4100Q | |||
| Emission | Euro 2 | ||||
| Type | in-line, 4-stroke, water-cooled, natural inspiratory, diesel engine | ||||
| Rated power | 69KW/95hp,rated power speed 3200rpm | ||||
| Displacement | 3707ml | ||||
| Bore x stroke | 100x118mm | ||||
| Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | ||||
| Tire | Size | 7.00R16 Steel wire | |||
| Number | 6+1 nos | ||||
| Frame | 188mm | ||||
| Front axle | 2.0T | ||||
| Rear axle | 4.0T | ||||
| Drive form | 4X2 | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | 5 speed forward 1 reverse. | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | Air conditioner | ||||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
| Aerial work truck structure parameters | ||||
| Max operation height | 12.0m | Max working platform height | 10.0m | |
| Max rotation angle | 360° | Working platform rated loading | 200kg | |
| Color and Logo | Optional | |||
| Standard configuration | ||||
Aerial Work Platform (AWP) Overview:
An Aerial Work Platform (AWP), also known as a Mobile Elevating Work Platform (MEWP), is a versatile
piece of equipment designed to safely lift operators to high elevations for various types of work. These
platforms are typically used in industries such as construction, maintenance, and repair, allowing workers
to access difficult-to-reach areas.
AWPs come in different forms, such as boom lifts, scissor lifts, and articulated lifts, each suited for specific
types of tasks. They are equipped with safety features like guardrails and harness points to ensure worker
safety during elevated operations. AWPs are essential for tasks like installing signage, cleaning windows,
conducting building inspections, and electrical work, offering both height and mobility to improve work
efficiency and safety.

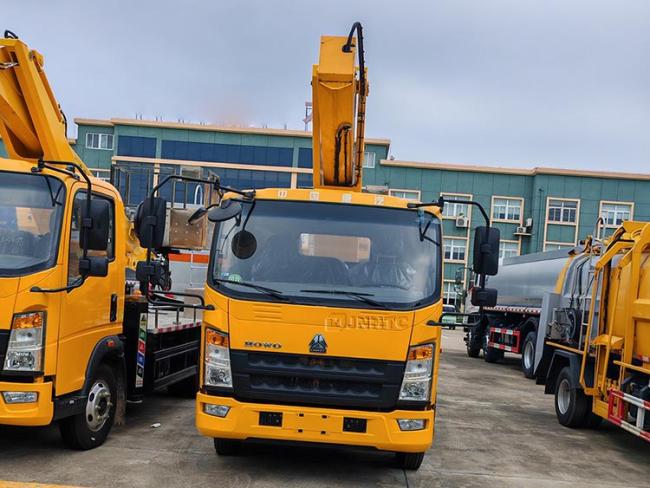

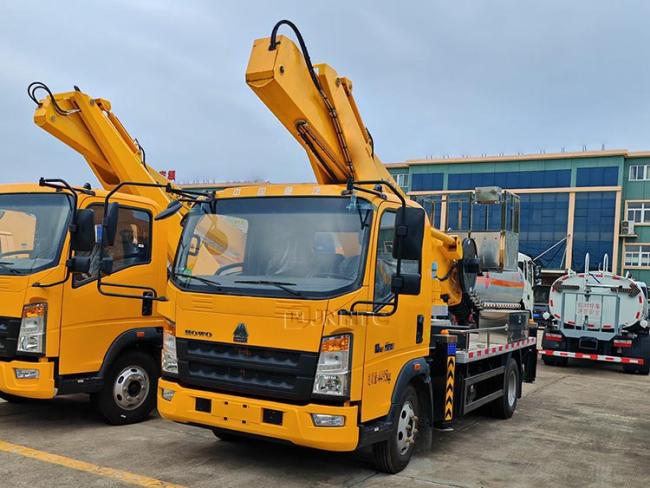

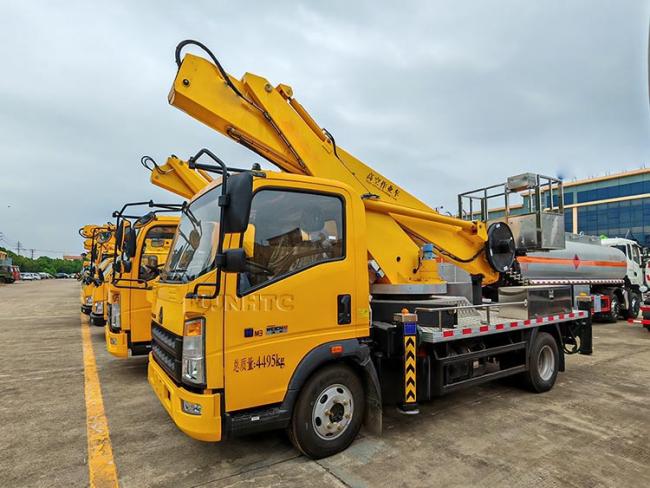

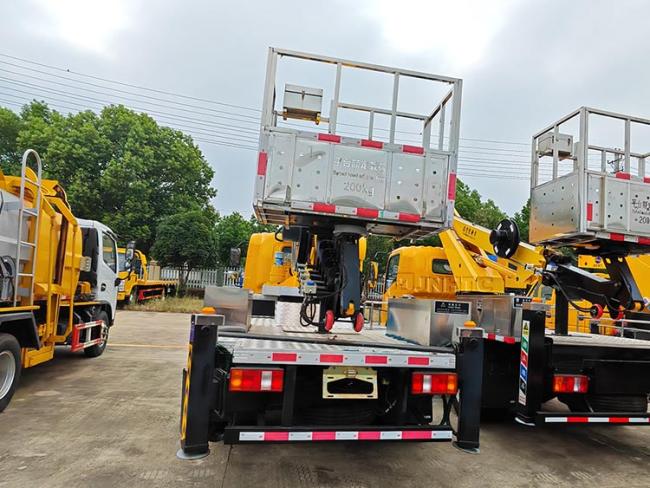

Truck Pictures
