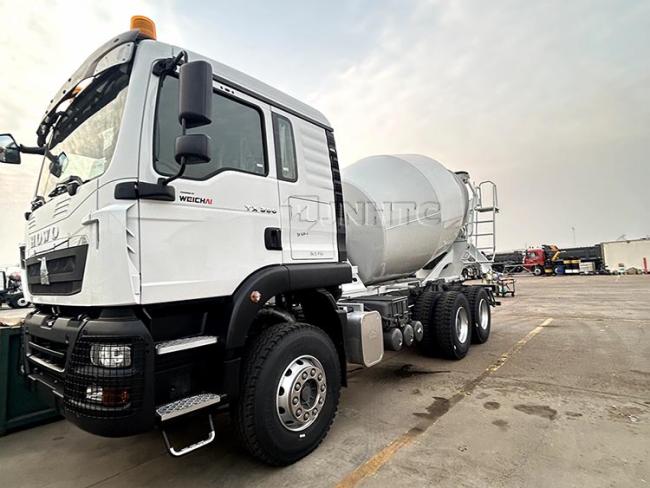

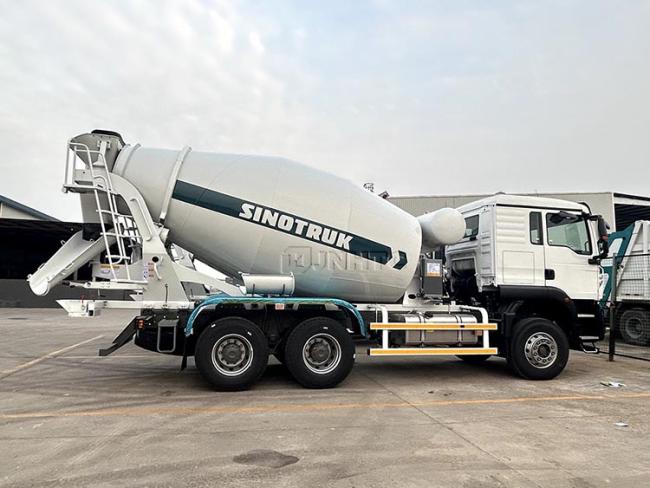

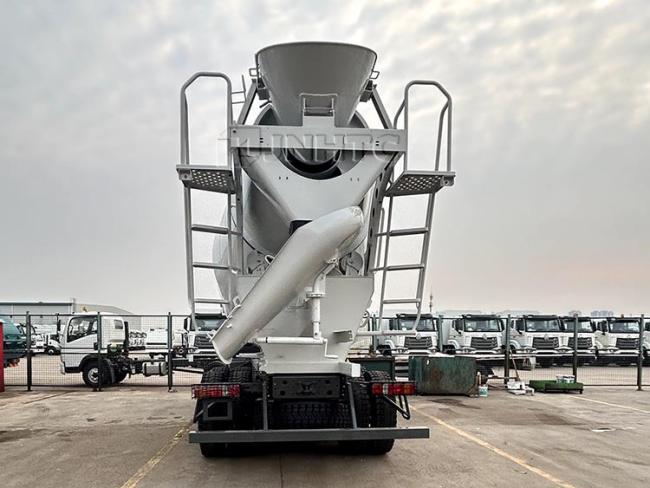

HOWO TX Concrete Mixing Truck 6x4 10 Wheels Concrete Mixer Truck

Name: HOWO TX Concrete Mixing Truck 6x4 10 Wheels Concrete Mixer Truck
Brand: Jinan Heavy Truck Import & Export Co., Ltd.

Price Negotiable

Price: $46500 unit

MOQ: 1 unit

Delivery Time: 30days

Brand: Sinotruk Howo

Product Description

1. products description

Product Parameter		More parameters
Brand Name	SINOTRUK –HOWO	more
Truck Model	ZZ1257N3841W	/
Geometric Volume	12 CBM	6,8,9,10,12,14,16,18
color	option	option
Water Tank Volume(L)	400	Water Tank Volume(L)
Engine	WD615.47, Euro 2	Euro 3 ,Euro 4,Euro 5
Wheel base (mm)	3800+1350	customization
Overall Dimension (mm)	8560x2496x3048	customization
Clutch	SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission	HW19710, 10 forward and 2 reverse Ratio: 4.42 4.8 5.73
Front Axle	New HF9 series, with drum brake system
Rear Axle	HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering	ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
Wheels&Tyres	Rims: 8.5-20,10 hole-steel Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab	HW76 (one sleeper) all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner
Cargo body	American Eaton pump and motor, Italian Bonfeili reducer, water tank 400L, head 8mm, tank 5mm, blade 4mm, vehicle spray wax, color consistent with the cab, front and rear lamp cover, other standard
