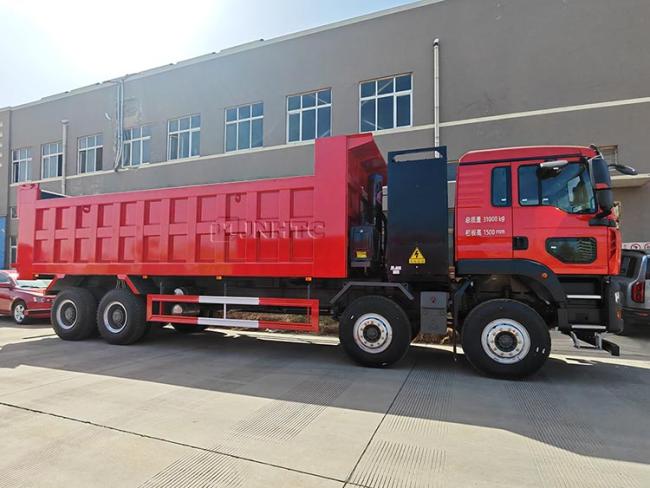

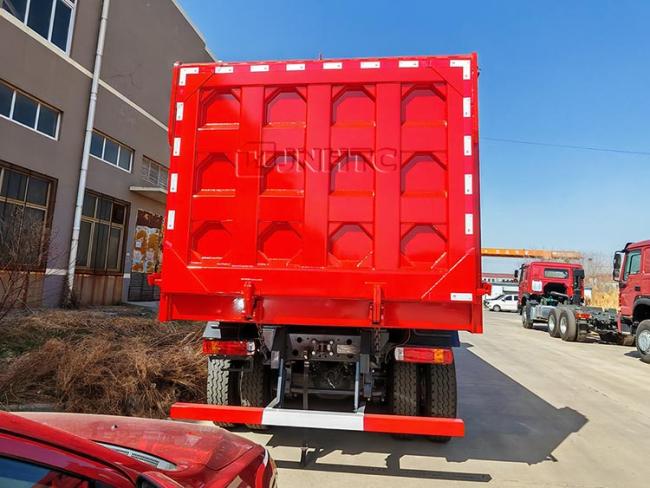

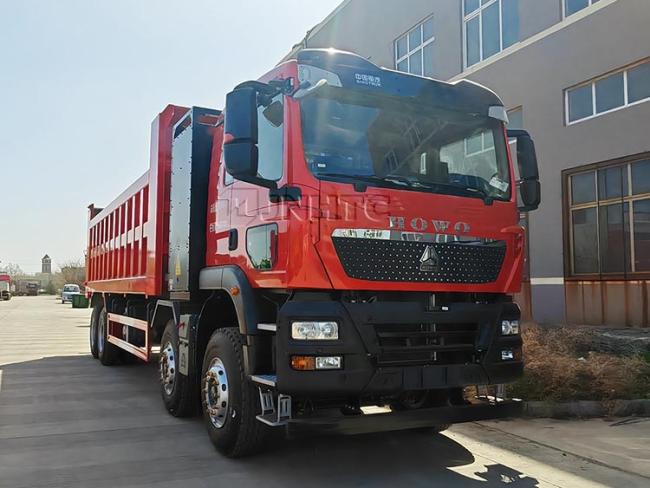

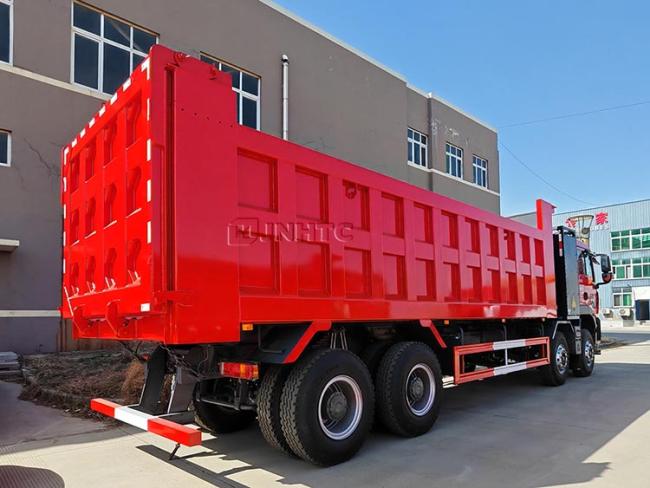

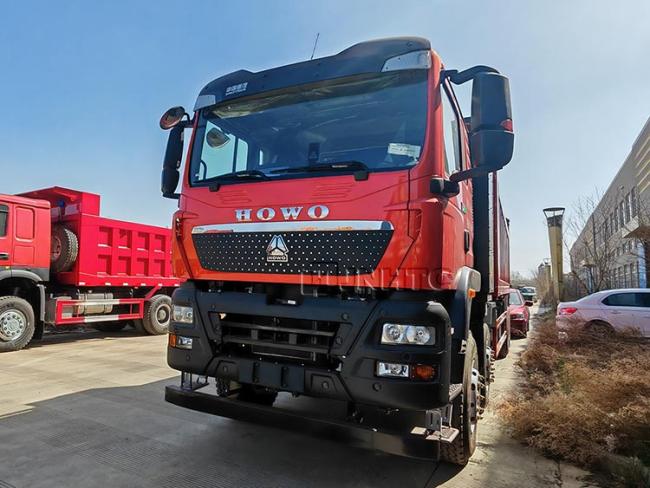

HOWO TX Electric Dump Truck 30 Ton 20 Cubic 8X4 Dump Truck
Price:
USD 35000~45000 Unit
MOQ:
1 Unit
Delivery Time:
35 working days
Brand:
SINOTRUK HOWO Heavy Duty Dump Truck
Product Description
HOWO TX Electric Dump Truck 30 Ton 20 Cubic 8X4 Dump Truck
Detailed parameters
| Model | ZZ3257N3847A | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons*2 | |||
| Steering | ZF8118 hydraulic steering with power assistance.(ZF8098 for RHD) | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
| Rim/ Tire | 12R22.5/11.00R20/12.00R20/13R22.5 | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8475×2496×3450(mm) | |||
| Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12500(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 85km/h | |||
| Color | White, red, green, golden and so on. |
