China Chinese Howo TX Mixer Puming Truck Cost 25m 38m 42m 6X4 440HP Concrete Pump Truck for sale

Chinese Howo TX Mixer Puming Truck Cost 25m 38m 42m 6X4 440HP Concrete Pump Truck

Name: Chinese Howo TX Mixer Puming Truck Cost 25m 38m 42m 6X4 440HP Concrete Pump Truck
Brand: Jinan Heavy Truck Import & Export Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 30days

Brand: sinotruk

Product Description

Chinese Howo TX Mixer Puming Truck Cost 25m 38m 42m 6X4 440HP Concrete Pump Truck

Concrete pump trucks are widely used in various construction scenarios, from residential buildings and commercial complexes to infrastructure projects like highways, tunnels, and dams. They are particularly valuable in projects where concrete needs to be placed in hard-to-reach areas, such as high-rise structures or narrow spaces, as the boom can be maneuvered with precision to deliver concrete exactly where it is needed.

In summary, the concrete pump truck has revolutionized concrete placement in construction, offering mobility, precision, and efficiency that contribute to safer, faster, and more cost-effective building processes.

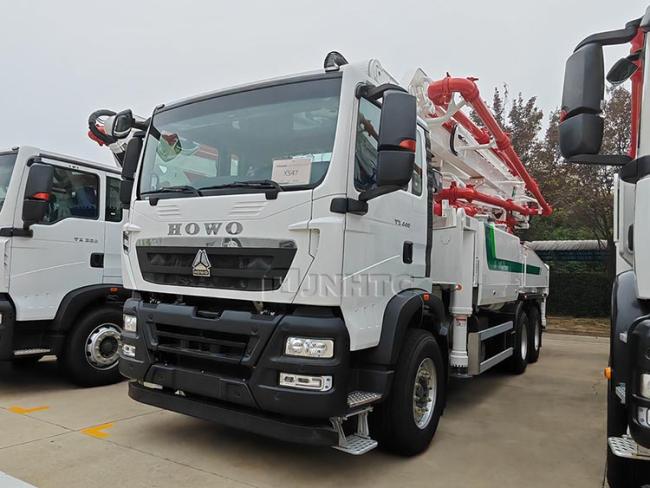

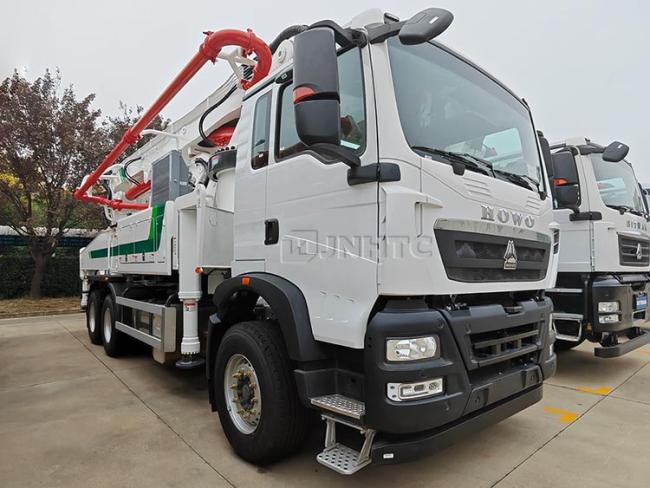

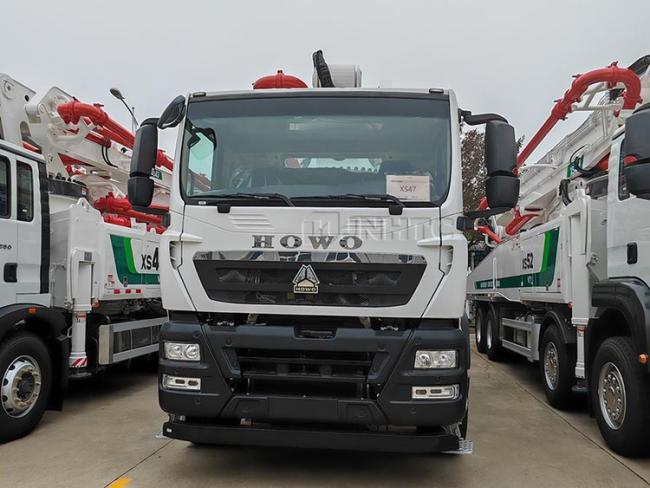

SINOTRUK HOWO A7 38M Mounted Concrete Pump Truck ZZ1257N4647P1
Cab	A7-W cabin, with one sleeper berth, with air conditioner
Engine	D10.38-40, 380hp, Euro 4 emission (Euro 2 emission engine is also available )
Transmission	HW19710T, 10F+2R speed, manual type, with HW70 PTO
Front axle	HF9 *1, 9 tons loading, drum type
Rear axle	HC16*2,32 tons loading, 4.8/5.73 speed ratio
Wheelbase	4600+1400mm
Steering	ZF steering, with power assistance
Bumper	High position, ,metal material
ABS:	Without ABS
Tire	12.00R20 radial tire, 11 pcs
Others	With cable PTO, BBM control module

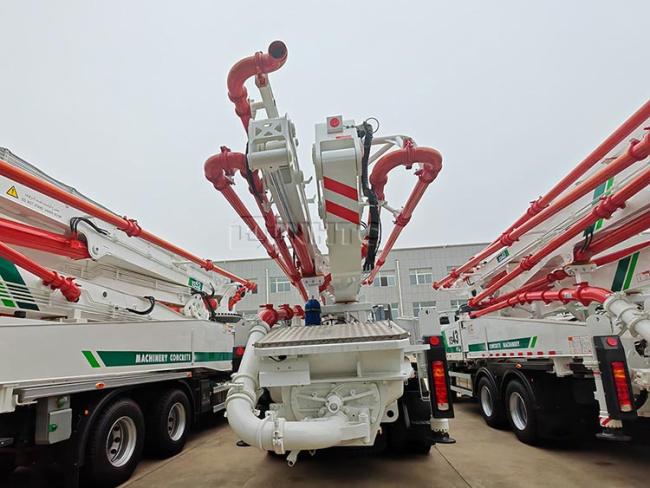

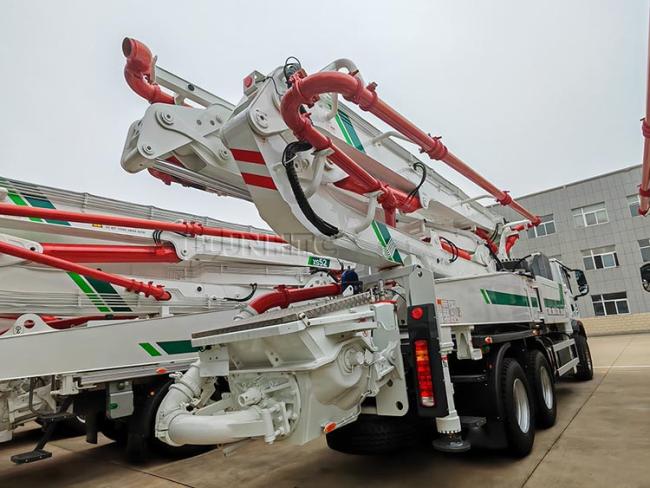

Boom system	1. 38M CONCRETE PUMP TRUCK; 2. Max. Vertical height: 38M 3. Max. Horizontal Concrete Placing radius: 34M 4. Concrete placing depth: 25M 5. Control mode: Electric proportion 6. Folding type of boom:RZ type 7. Folding type of boom: 360° 8. Length of end hose : 3000MM 9. Concrete delivery pipe dia. :125
Pump system	1. Form of concrete distribution valve:S Valve 2. concrete cylinder: 230 3. Maximum feeding height: 1500 MM 4. Hopper capacity: 0.65 M3 5. Slump of pumped concrete: 160-220 6. Dimension of allowable maximum aggregate : 40MM
