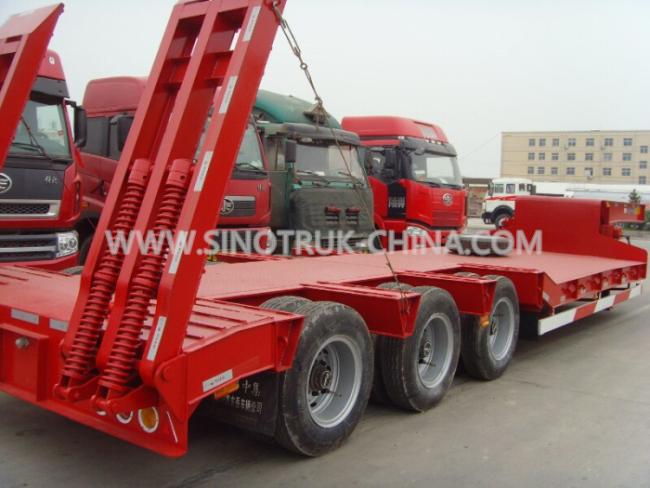

low bed trailer 3 axles BPW brand 12.00R20 tyres ABS Optional JOST support leg
low bed trailer 3 axles BPW brand 12.00R20 tyres ABS Optional JOST support leg
Specification:
| Name | 3 Axles 13.5M Low-bed Semi-trailer |
| Chassis |
chassis made of Q345 steel. Strengthened “I” section main beams are welded automatically by submerged welding machine Flatdeck 3mm checkered plate
|
| Kingpin | 2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type |
| Brake system |
Double circuit brake system. The rear axle with T30/30 spring brake chamber and the first 2 axles with T30 service brake chamber. WABCO, SEALCO or equivalent brand.
|
| Enhanced Features Options |
- Self-steering axles. - Hydraulic ramps -Extendable low-bed -Concave center deck -Ohter dimensions available -Special designed with hydraulic system
|
| Electric system | 24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand. |
| Landing gear |
Single side operation, 2 speeds, telescopic type. JOST, Holland or equivalent brand.
|
| Tyres |
12 R22.5 or 385/65 R22.5 or 315/80 R22.5. Triangle, Bridgestone, Goodyear, Continental.
|
| Axle and suspension |
13T load capacity, 150 x 150 square axle. BPW, FUWA, JMCG. Mechanical suspension or air suspension
|
| Accessories |
2pcs Spare wheel carries 1 pc tool box Reflector
|
| ABS Optional | |
Advantages:
Low Bed Trailer is commonly used for transporting construction Machinery such as bulldozers,excavators and overheight equiprment
Such as transformer,generator and high vehicles. The capacity of Star Trailer low bed series can be range from 20T to 120T with 2 axles to 10 axles per customer requirement. Self-steering axles and auto hydraulic Ramp can be equipped as options for performance enhancing.
