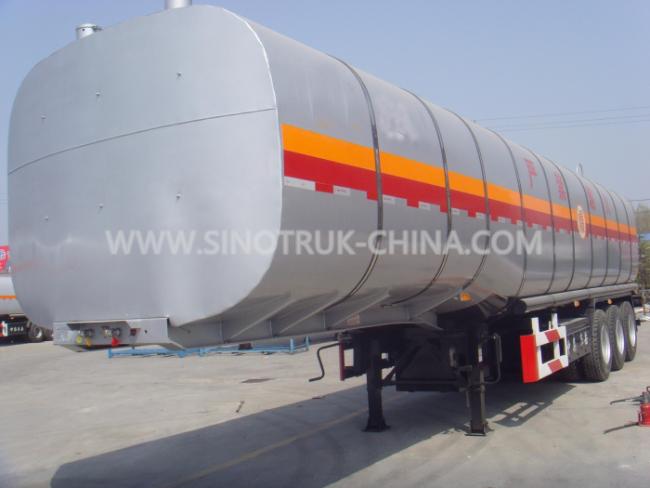

28 Tons Heavy Duty Semi Trailers / Fuel Tank Trailer 12.00R20 Triangle Tyre
28 Tons 3 axles Oil Tank Semi-Trailer JOST landing gear 12.00R20 Triangel tyre ABS Optional
Specification:
| Name | 3 Axles Aluminum Alloy Tanker Semi-trailer |
| Chassis | chassis made of Q345 steel or 6061 aluminium. Strengthened “I” section main beams are welded automatically by submerged welding machine. |
| Tank Body | Hydrostatic test to 0.3Mpa on each compartment. |
| Manhole Cover | Safety manhole cover with breath valve. |
| Kingpin | 2’’ or 3,5’’ king pin detachable from below made by SAE standards bolted type |
| Brake system | Double circuit brake system. The rear axle with T30/30 spring brake chamber and the first 2 axles with T30 service brake chamber. WABCO, SEALCO or equivalent brand. |
| Enhanced Features Options |
- Tank material can be carbon aluminium. - Pneumatically automatic folding handrail - Other volume and loading capacity available - Air Suspension with 1st axle lifting.
|
| Electric system | 24 Volt lighting installation with 7 pin plug socket. Philip or equivalent brand. |
| Landing gear |
Mechanical landing gear, 2 speeds, telescopic type. JOST, Holland or equivalent brand. |
| Tyres |
12 R22.5 or 385/65 R22.5 or 13 R22,5 or 315/80 R22.5. Triangle, Bridgestone, Goodyear, Continental.
|
| Axle and suspension |
13T load capacity, 150 x 150 square axle. BPW, FUWA, JMCG. Mechanical suspension or air suspension
|
| ABS Optional | |
Advantages:
Liquid tanks are used for transporting liquids such as fuel,water,chemicals, acids and alcohol etc. The tank material can be fiberglass, carbon steel, stainless steel,aluminum per customer requirement.
