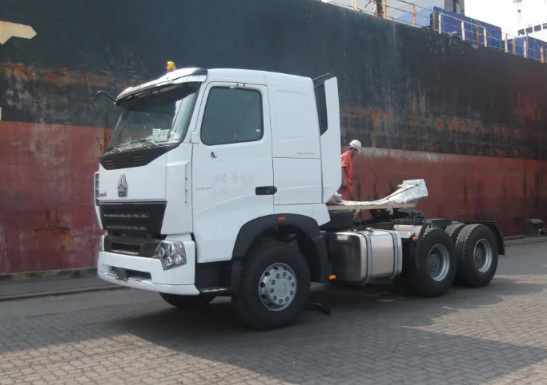

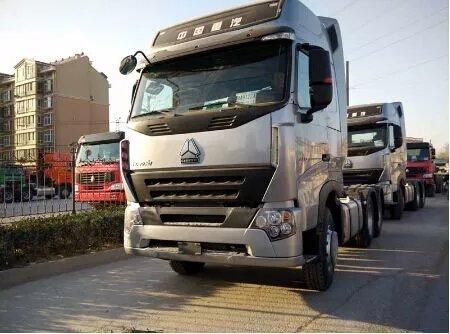

420hp Sinotruk Howo7 Tractor Truck 6x4 10 Wheels HW76 Cabin For Tow 50T
420hp Sinotruk Howo7 Tractor Truck 6x4 10 Wheels HW76 Cabin For Tow 50T
According to clients' requirements, we can customize different horse power and drive wheel.
The popular truck head models include:SINOTRUCK HOWO 336hp 6*4 tractor truck, HOWO 371HP 6*4 tractor truck, HOWO 420hp 6*4 truck head, HOWO 336hp 4*2 trailer head, HOWO 371HP 4*2 tractor.
According to the different brand, we can provide both SINOTRUK and Shacman and Dongfeng and Beiben to meet customer brand requirement.
Our tractor truck price is really good with high quality ensured.
Come to Chengda, you can customized the trucks you like.
| Truck Model | ZZ4257S3241 | ||||
| Truck Brand | SINOTRUK-HOWO | ||||
| Driving Style | Left/Right Hand Driving | ||||
|
Dimension(Lx W xH)(unloaded) (mm) |
6800x2496x2958 | ||||
|
Approaching angle/Departure angle(°) (°) |
16/70 | ||||
| Overhang(front/rear) (mm) | 1500/725 | ||||
| Wheel base (mm) | 3225+1350 | ||||
| Front track/ Rear track(mm) | 2022/1830/1830mm | ||||
| Max speed(km/h) | 101 | ||||
| Curb weight(kg) | 9180 | ||||
| Loading Weight(kg) | 25000 | ||||
|
Engine (Steyr technology, made in China) |
Brand | SINOTRUK | |||
| Model |
WD615.47, water-cooled,four strokes,6 cylinders in line, turbocharged, directly injection |
||||
| Fuel type | Diesel | ||||
| Horse Power, max(kw/rpm) | 371HP | ||||
| Emission | EURO II | ||||
| Fuel tanker capacity (L) | 400L | ||||
| Clutch | Φ430 pull-type diaphragm spring clutch | ||||
| Transmission | Model | HW19710 10 forwards and 2 reverse | |||
|
Brake system
|
Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | Engine exhaust brake | ||||
|
Steering system
|
Model | ZF8098 hydraulic steering with power assistance | |||
| Front axle | HF9 | ||||
| Rear axle | HC16 | ||||
| Color | White, optional | ||||
| Tire | 1200R20, 10+1pcs | ||||
|
Electrical system
|
Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab |
HW76 cab one sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc. |
||||
Related products:Sinotruk HowoA7 tractor truck Prime mover.
