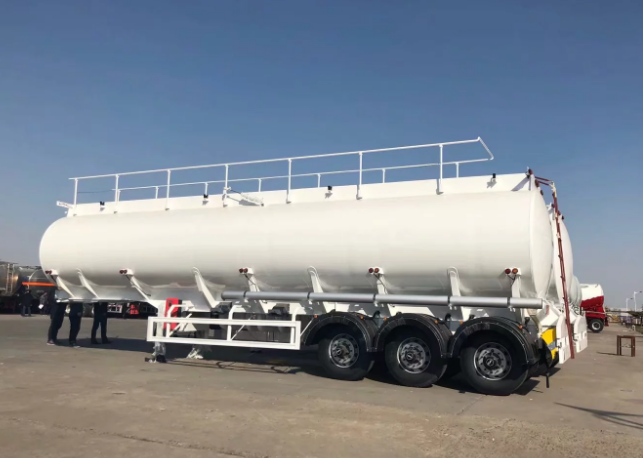

3 Axles 12 Wheels White Color Heavy Duty Semi Trailers 45000L Oil Tank Trailer
Price:
Negotiable
MOQ:
1unit
Delivery Time:
20days
Brand:
Sinotruk Heavy Duty Semi Trailers
Product Description
3 Axles 12 Wheels White Color Heavy Duty Semi Trailers 45000L Oil Tank Trailer
Product Description
| Main Dimension Heavy Duty Semi Trailers | |
| Tank Body | |
| shape | Optional (Round or Suare) |
| dimension | 12000mm*2490mm*3990mm(Exact size depends on the final design) |
| Tare weight | About 8000KGS-12800KGS |
| Total Volume(m3) | 25m3-60m3 |
| Tsnker Body Meterial | 5mm or 6mm/Q235carbon steelof Aluminum alloy |
| End Plate | 5mm or 6mm/Q235carbon steel of Aluminum alloy |
| Manhole Cover | Carbon steel or Aluminum alloy API manhole cover, 500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4" rubber hose ,2 pcs, 6m/each inch |
| Cat Walk | With (Commen model or special design) |
| Chassis | |
| Main Beam | Weldding Design or Special design I beam, connected by bolts and nuts Q345 carbon steel material |
| Axle | 2 or 3 axles, 12T/13T/16,BPW/FUWA/HUAJING brand |
| Landing Gear | JOST(D200T) or CHINA BRAND 28T |
| King pin | Jost 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type/ Air Suspension |
| Leaf Spring | 90(w)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12/without |
| Pneumatic Braking System | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber (TKL brand) 2 pieces of 45L air tanks |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
| ABS | Optional |
| Paiting | Complete Chassis sand blasting to clean rust ,1coat of anticorrosive prime,2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo ,RORO or 40HQ Containers |
Related products: Fuel ,oil tank truck ,trailer ,mini trailer . Heavy Duty Semi Trailers
