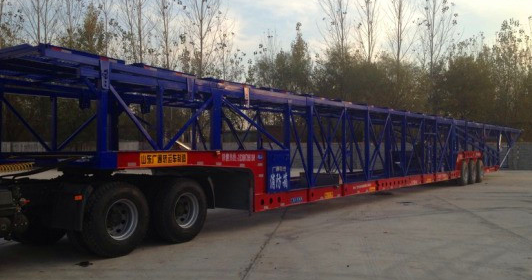

15m 18m Vehicle Transport Heavy Duty Semi Trailers 8-12 Cars Max Payload
15m 18m Vehicle Transport Heavy Duty Semi Trailers 8-12 Cars Max Payload
Quick Details
| Use: | Truck Trailer | Type: | Semi-Trailer | Material: | Steel |
| Certification: | BV/ISO/CCC/WMI | Size: | 15m*2.8m*3.6m | OEM No.: | car carrier semi trailer |
| Max Payload: | 8-12 cars | Place of Origin: | Shandong China (Mainland) | Brand Name: | Chengda |
| Model Number: | car carrier truck trailer | Trailer Model: | 2 Axles car/vehicle carrier semi trailer | Dimension: | 15m*2.8m*3.6m |
| Axle: | FUWA brand axles with 13T x2 | Tyre: | 1100R20 | ||
| Packaging Detail: | nude |
| Delivery Detail: | within 15 workdays after 30% contract value |
| Trailer Model | 2 Axles car/vehicle carrier semi trailer |
| Overall Dimension(Lx W x H)(mm) |
15m*2.8m*3.6m (the height is from the ground) |
| Function | For car/vehicle transportation |
| Main Frame |
300mm height I beam, Top Flange 10mm; Middle Flange 6mm; Bottom Flange 10mm |
| Floor | Floor is 5mm,side is 3mm |
| Axle | FUWA brand axles with 13T x2 |
| Suspension | Mechanical suspension |
| Landing gear | Standard 28T |
| Tyre | 1100R20 |
| Spare Wheel Carrier | One set of spare wheel & Tyre carrier including a riser. |
| Braking systerm |
Dual line-air brake, piggyback spring on all axles; four units of T30/30 spring brake chamber. four lifting hydro-cylinder. Three aircraft jump frames. |
| Electric System |
One unit of JAEGER POWAY, 24V 7-pin ISO1185 standard socket; Standard Tail lamp with turn signal, brake light & refletor, Side lamp etc. One set of 6-core standard Cable |
| Painting |
Sand blasting processing on rust-proof protection. One coat of anticorrosive primer, two coats of finish urethane paint, Color as customer choice. |
