SINOTRUK HOHAN HOWO N7B Dump Truck 6x4 371HP 20cbm HYVA Front Lifting Cylinder
New Model SINOTRUK HOHAN HOWO 6x4 371HP 20cbm HYVA Front Lifting Cylinder Heavy Duty Dump Truck
Dump Truck
| Vehicle series | HOHAN N7B 6x4 Dump Truck | |
| Cab | H77L | |
| Engine | Model | Euro 2:WD615.47 |
| Power(Ps/rpm) | 273/2200 | |
| Maximum torque(Nm/rpm) | 1500 | |
| Displacement(L) | 9.726 | |
| Transmission | SINOTRUK HW19710 series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. | |
| Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted. | |
| Front axle | HF9 drum-type, rated load of 9t | |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8 | |
| Steering system | ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa | |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air | |
| Auxiliary brake | Engine exhaust braking. | |
| Electric system | Voltage | 24V |
| Generator | 2240W | |
| Batteries | 12V/165Ah,2 pieces | |
| Starter Power | 24V,7.5kW | |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 12.00R24,12.00-24 | |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 12170/8630;12290/8660;12450/8690;12270/8710 |
| Gross Vehicle Weight | 25000 | |
| Rated load | 12420~12700 | |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (7545~8545)×2496×3170/3450 |
| Wheelbase | (3225~3825)+1350 | |
| Front/rear overhang(vehicle/chassis) | 1500/(1470/715);1500/(1670/740);1500/(1870/900) | |
| Wheel track of front axle | 2041 | |
| Wheel track of rear axle | 1830/1850 | |
| Performance | Maximum speed(km/h) | 79/83 |
| Maximum gradeability(%) | 20 | |
| Minimum turning diameter(m) | 15/16/17 | |

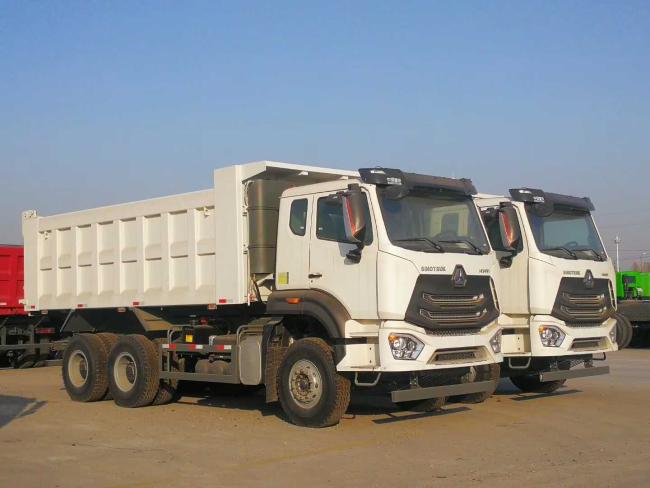

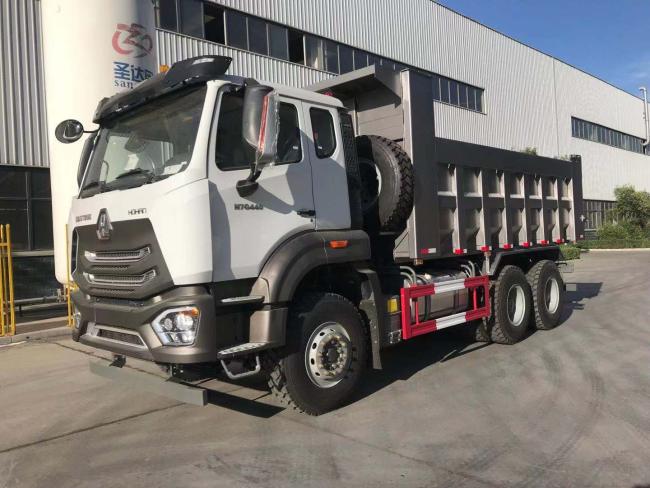

Picture of Heavy Duty Dump Truck
Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency

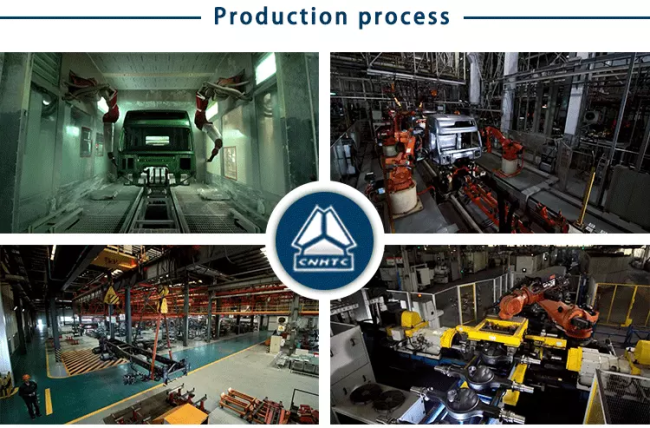

Production Process
About Company
Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts.
As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and HOVA brand series trucks, including Head tractor trucks (Prime movers), Heavy Duty Dump trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company is located in Jinan City, the capital of Shandong Province. Jinan is an old base of China's industry and an old industrial base, which means that there are many industrial manufacturers in Jinan, forming a chain of production, without transportation costs. Adhering to the principle of "honest and trustworthy", we promise to try our best to provide the most efficient services for worldwide customers.
