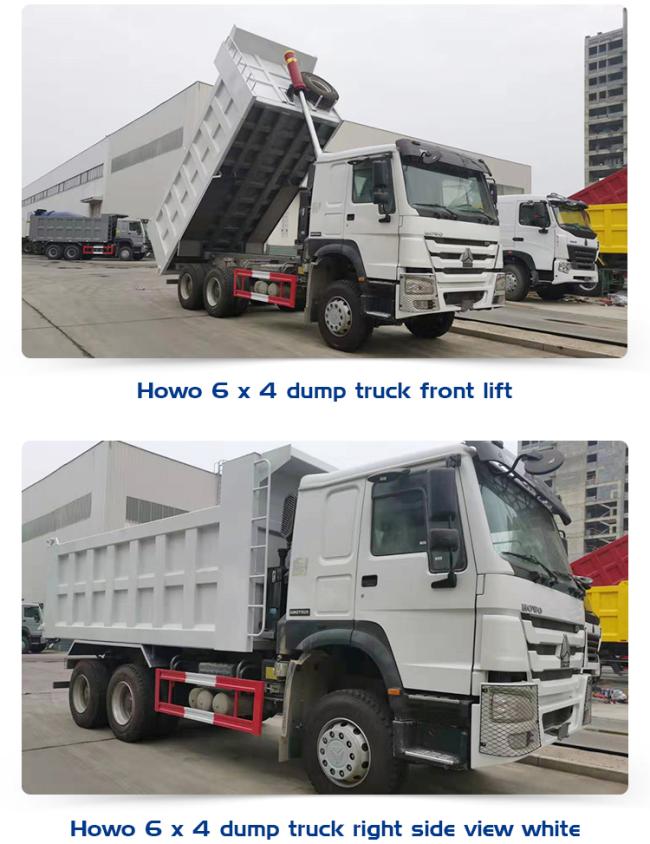

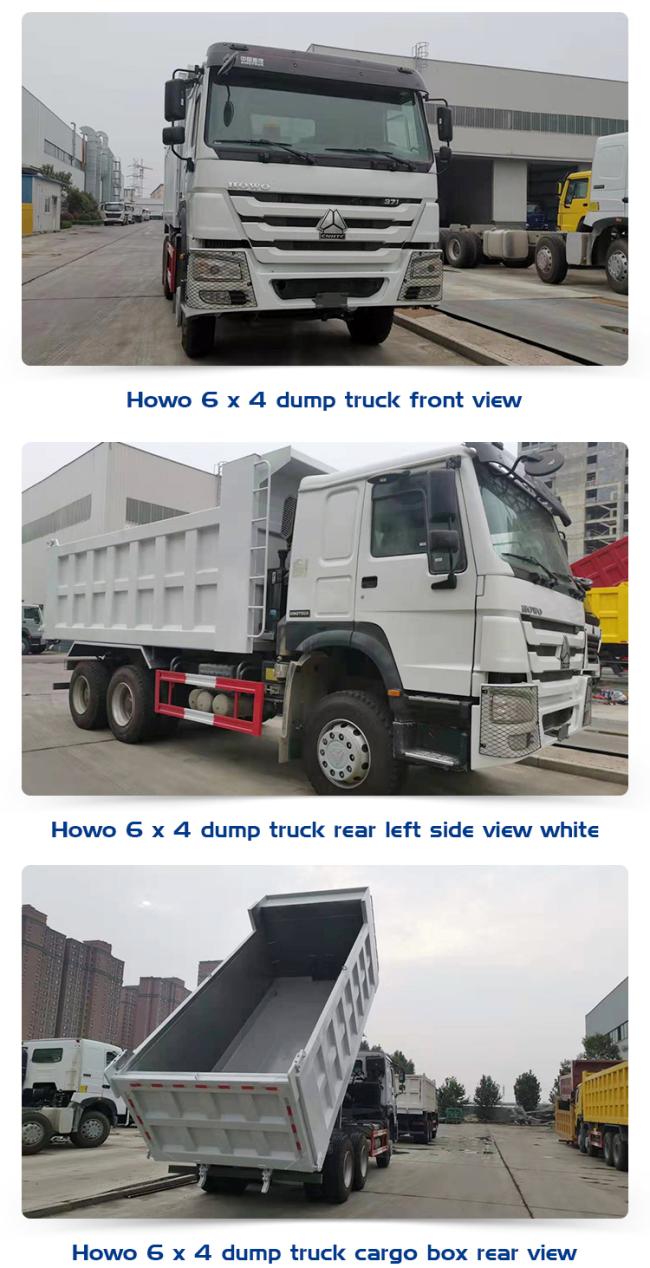

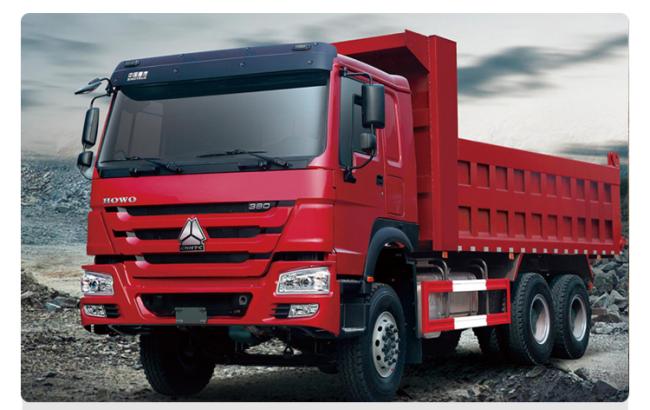

Sinotruk 6x4 10 Wheel Heavy Duty Dump Truck With Overturning Body Platform
Sinotruk 6x4 Dump Truck With The Overturning Body Platform Product Overviews
HOWO 6X4 10 wheels dump truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.
Delivery:
Jinan Heavy Truck Import & Export Co., Ltd. is a professional heavy duty truck manufacturer in China. We focus on the export and service of all kinds of heavy duty trucks, machinery and original spare parts.
As a member of SINOTRUK, our main products are SINOTRUK HOWO, HOWO A7,T7H, STEYR, STEYR KING, GOLDEN PRINCE (SWZ10), HOKA, HOHAN and HOVA brand series trucks, including Head tractor trucks (Prime movers), Dump trucks (Tippers), Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks, Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and so on.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines,Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company is located in Jinan City, the capital of Shandong Province. Jinan is an old base of China's industry and an old industrial base, which means that there are many industrial manufacturers in Jinan, forming a chain of production, without transportation costs. Adhering to the principle of "honest and trustworthy", we promise to try our best to provide the most efficient services for worldwide customers.
| Model | ZZ3257N3447A1 GCW40000kgs Driving Type 6×4 | |

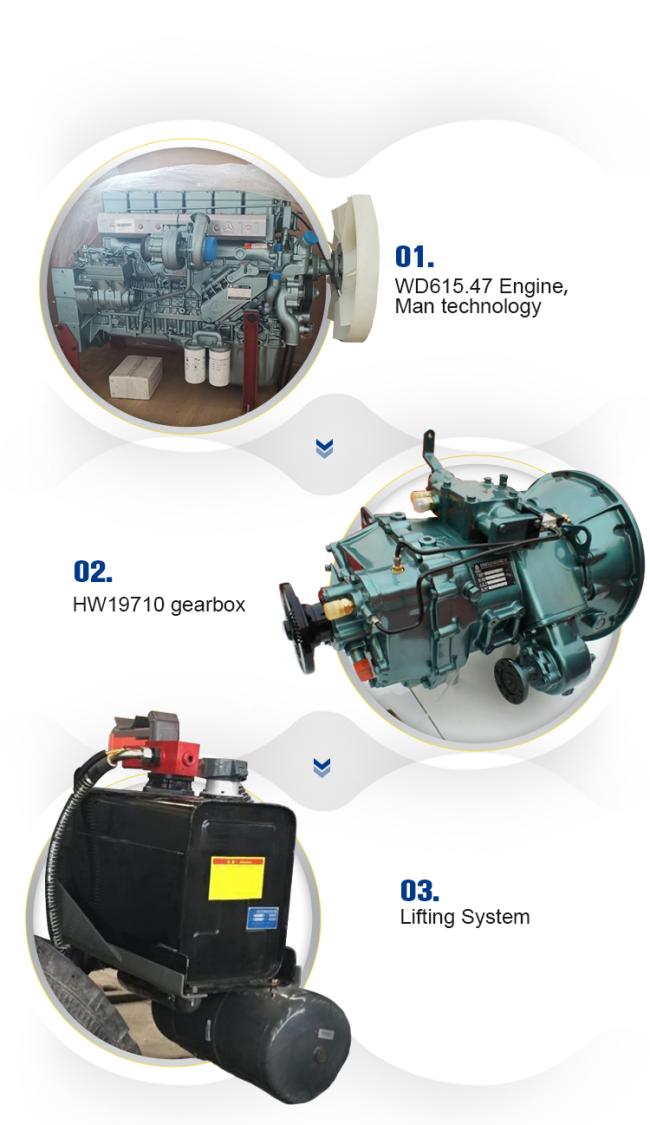

| Engine | Engine model | WD615.69, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system |
| Maximum output | 336PS (247kW) at 2200 rpm | |
| Maximum torque | 1350Nm at 1100-1600rpm | |
| Bore | 126mm Stroke: 130mm | |
| Displacement | 9.726L | |
| Compression ratio | 17.5:1 | |
| Specific fuel consumption | ≤198g/kWh | |
| Engine oil filling quantity | 23L | |
| Air compressors | WABCO Twin cylinders air compressors; | |
| Cooling system filling quantity (long-term filling) | 40L | |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance | |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | New HF9 series, with drum brake system Steering with double T-cross section beam | |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. Ratio: 5.73 | |
| Chassis | Frame: | High-strength U-profile frame, all cold riveted cross members and reinforced subframe |
| Front suspension: | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | |
| Rear suspension: | semi-elliptic leaf springs and bogie springs | |
| Spare wheel carrier: | with one spare wheel | |
Steering | ZF8098, hydraulic steering with power assistance Ratio: 22.2-26.2:1 | |
| Braking System | Front and rear drum brake, four-circuit protection valve | |
| Service brake | dual circuit compressed air brake | |
| Parking Brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | engine exhaust brake | |
| Wheel & Types | Rims | 8.5-20,10 hole-steel |
| Types | 12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20 | |
