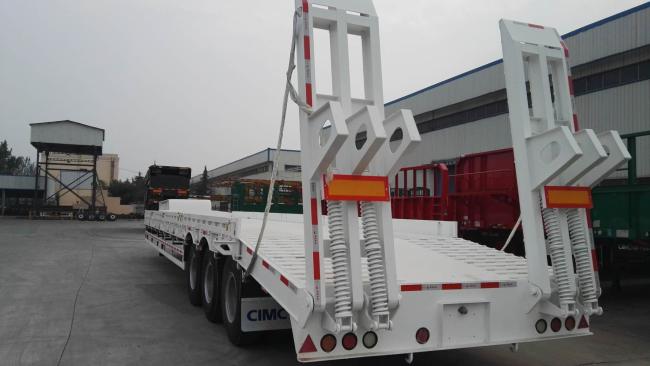

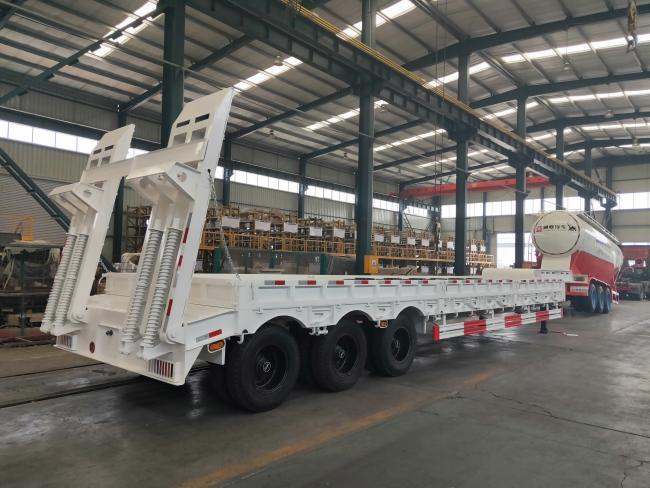

3 Axle Low Bed Semi Trailer Red Color With Self Steering Axles And Hydraulic Ramps
3 Axle Low Bed Semi Trailer Yellow Color with Self-Steering Axles and Hydraulic Ramps
Low Bed Semi Traile Technical Information:
Chassis High tensile steel with 350Mpa yield strength.Main beams are
welded automatically by submerged welding machine
Kingpin 2”or 3,5"king pin,SAE standard,bolted on or welding on type.
Brake system Duel line brake system.WABCO,SEALCO or equivalent brand.
Electric system 24 Volt lighting system with 7 pin socket,SAE standard.
.
Landing gear Telescopic type,2 speeds,manual operation.JOST or
equivalent brand.
Tyres 82520r7.20or12R22.5or380 R22.5.
Axle and suspension 13T load capacity,150 x 150 square axle,leaf spring.BPW,
FUWA,JMCG or equivalent brand
Floor 6 mm checkered steel plate
Side extensions Steel side extensions brackets(500 mm extensions)
Rear ramps 2 pieces,mechanic foldable ramps
Parametersof Low Bed Semi Traile:
| Type | Payload (kgs) | Tare Weight(kgs) | Length(mm) | Width (mm) | Height(mm) |
| 2 axles Low Bed Trailer | 30000 | 8600 | 12200 | 3000 | 1100 |
| 3 axles Low Bed Trailer | 40000 | 10000 | 13000 | 3000 | 1250 |
Above data can be customized per your local regulation and requirement
Enhanced Features Options
- Self-steering axles.
- Hydraulic ramps.
- Extendable low-bed.
- Concave center deck.
- Other dimensions available.
- Special designed with hydraulic system
