China HOWO 9.726L Heavy Duty Dump Truck 12 Wheeler Dumper For Mining Work for sale

HOWO 9.726L Heavy Duty Dump Truck 12 Wheeler Dumper For Mining Work

Price Negotiable

Price: USD45000 for one unit

MOQ: 1

Delivery Time: 5 working days

Brand: SINOTRUK

Product Description

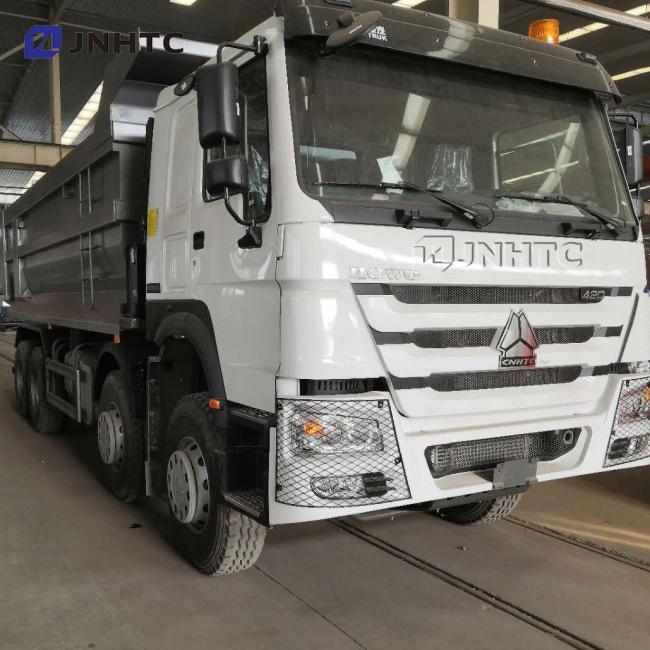

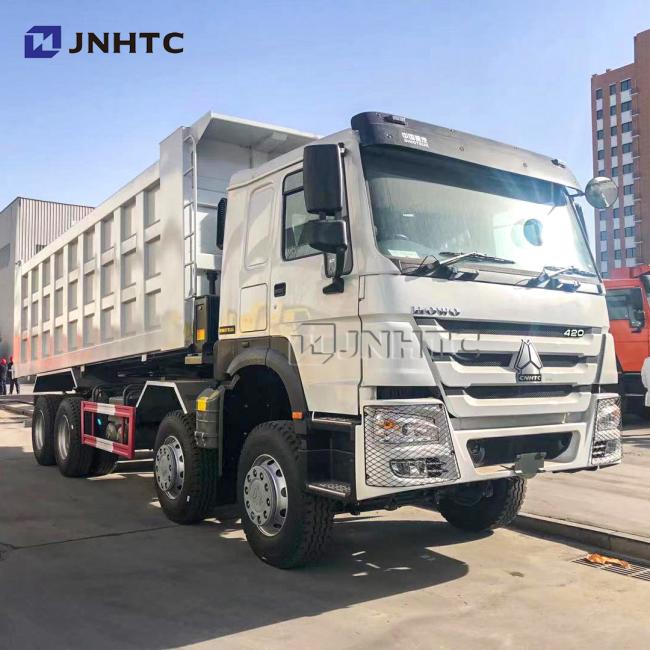

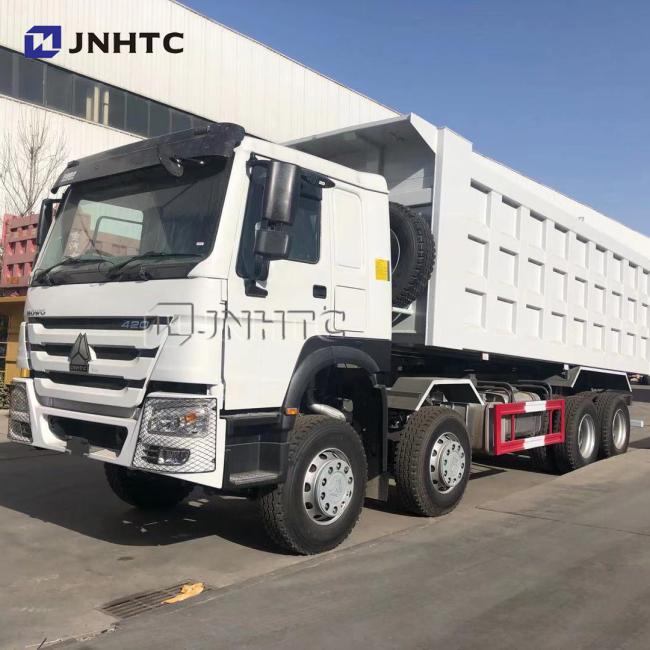

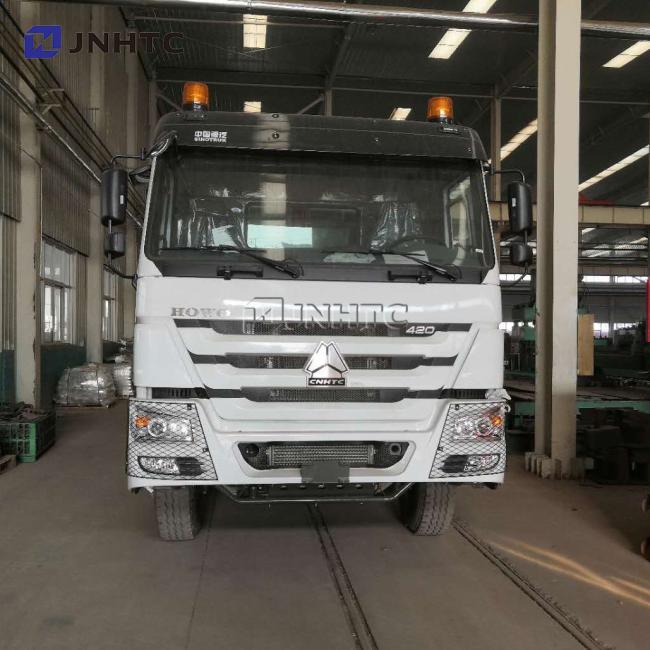

Brand New China SINOTRUK HOWO red 12 wheel dump truck for mining work

Model		ZZ3317N3647B
Cabin		HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler
Engine	Model	WD615.47
	Horse Power (Hp/rpm)	371/2200
	Max.Toruqe(Nm/rpm)	1820/1100-1500
	Displacement (L)	9.726
	Type	DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic controlled diesel engine
Clutch		Φ430 Diaphragm spring clutch, hydraulic operating with air assistance
Transmission		HW19712, 12 speeds forward and 2 speeds reverse.
Front Axle		HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.
Driving Axle		HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42, 4.8)
Suspension		Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Steering System		ZF power steering, model ZF8118, hydraulic steering with power assistance
Brake System		Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Electrics		Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah
Tire		12.00R20
Fuel Tank(Gas Tank) Capacity (L)		300L Diesel Tank
Dead Weight (kg)		12530
Gross Vehicle Weight (kg)		33000
Gross Combination Weight (kg)		80000
Overall Dimension(LWH)(mm)		9145×2560×3450
Wheelbase(mm)		3625+1350+1350
Front/Rear Overhang( mm)		1500/725
Wheel Track(Front/Rear)(mm)		2022/1850
Min. Ground Clearance(mm)		314
Approach/Departure Angle( °)		16/70
Max. Speed (km/h)		92
Max. Gradebility (%)		≥40
The carriage Size		700023001500mm
