Truck Mounted HOWO 38M Concrete Pump Truck With Three Axle

Price Negotiable
Price: USD90000-USD 150000
MOQ: 1 UNIT
Delivery Time: 30-40 workdays
Brand: SINOTRUK
Product Description

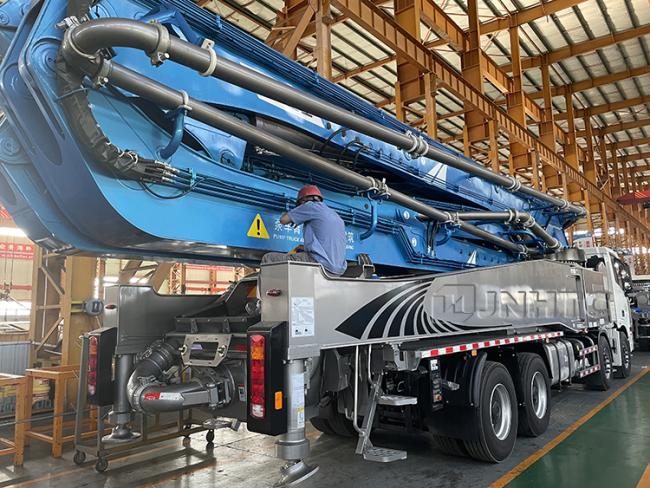

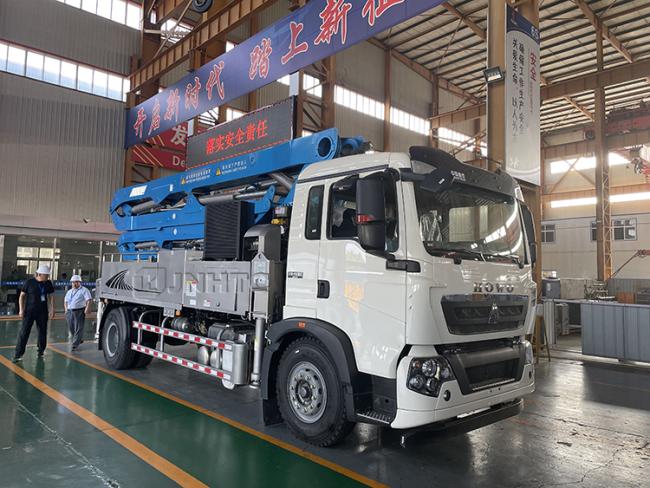

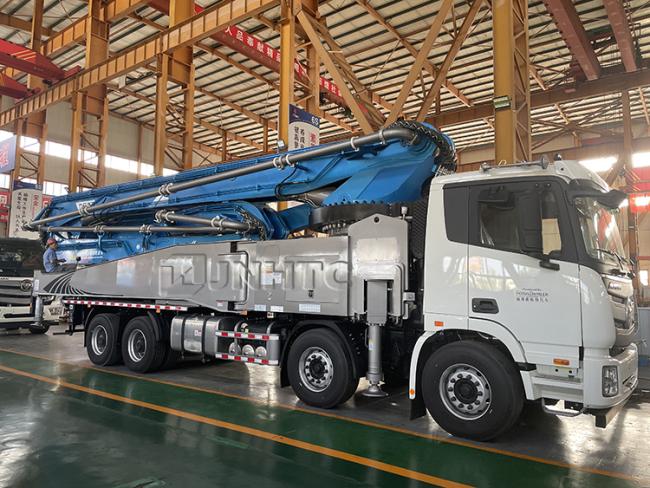

Chinese Best Truck Mounted HOWO 38M Concrete Pump Truck with Three-Axle



SINOTRUK HOWO A7 38M Mounted Concrete Pump Truck ZZ1257N4647P1
Cab
A7-W cabin, with one sleeper berth, with air conditioner
Engine
D10.38-40, 380hp, Euro 4 emission (Euro 2 emission engine is also available )
Transmission
HW19710T, 10F+2R speed, manual type, with HW70 PTO
Front axle
HF9 *1, 9 tons loading, drum type
Rear axle
HC16*2,32 tons loading, 4.8/5.73 speed ratio
Wheelbase
4600+1400mm
Steering
ZF steering, with power assistance
Bumper
High position, ,metal material
ABS:
Without ABS
Tire
12.00R20 radial tire, 11 pcs
Others
With cable PTO, BBM control module
Boom system
1. 38M CONCRETE PUMP TRUCK;
2. Max. Vertical height: 38M
3. Max. Horizontal Concrete Placing radius: 34M
4. Concrete placing depth: 25M
5. Control mode: Electric proportion
6. Folding type of boom:RZ type
7. Folding type of boom: 360°
8. Length of end hose : 3000MM
9. Concrete delivery pipe dia. :125
Pump system
1. Form of concrete distribution valve:S Valve
2. concrete cylinder: 230
3. Maximum feeding height: 1500 MM
4. Hopper capacity: 0.65 M3
5. Slump of pumped concrete: 160-220
6. Dimension of allowable maximum aggregate : 40MM
