3 Axles Tractor Dump Semi Trailer Truck 40t Air Suspension
Price:
$10000-$20000 unit
MOQ:
1 unit
Delivery Time:
30days
Brand:
Sinotruk howo
Product Description

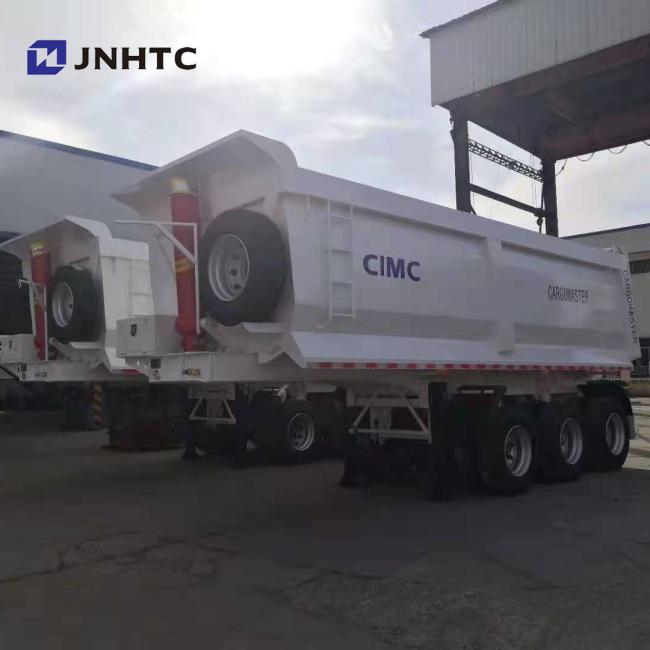

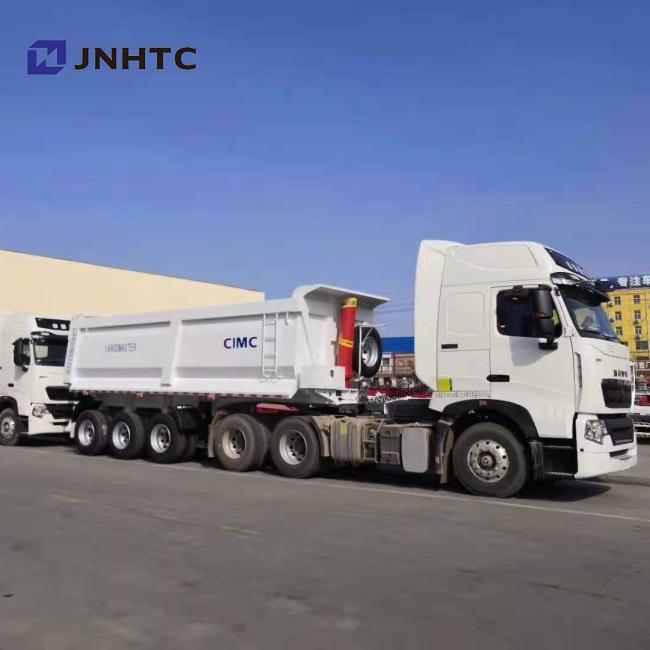

3 axle dump trailer
Chinese Very Good Quality hydraulic modular trailer
| Main specification | |
| Type | 3 axles dump trailer |
| Function | Heavy equipment,Container or other stuff |
| Overall dimension | 8500x2400x1000mm |
| Hydraulic cylinder | HYVA |
| Tare weight | 6500kg |
| Loading weight | 35000-40000kg |
| Main beam | The height of the beam is 500mm, upper plate is12mm, down plate is 12mm, middle plate is 6mm. |
| Side beam | 20 U shaped steel or I shaped steel |
| Chassis | |
| Traction pin | 2"or 3.5" |
| Land gear | Standard 28ton |
| Axle | 3x13ton FUWA Brand |
| Suspension type | Normal suspension |
| Leaf spring | 10/10/10 |
| Tire | 112R22.5 |
| Tire quantity | 12 units |
| Frame | |
| platform thickness | Bottom 8mm, side 6mm |
| Accessories | |
| Brake | 6 big chamber, WABCO emergency relay valve |
| Tool box | 1 unit |
| Spare wheel carrier | 2 units |
| Side marker lamp | LED type |
| Voltage | 24V |
| Receptacle | 7ways (7 wire harness) |
Our services
1) One year quality assurance for three key parts: axles, engine, transmission.
2) Other spare part could be supplied by OEM at coast prices.
3) Regularly callback to know the vehicle's working status.
4) The overseas engineers are always ready to deal with unexpected needs.
5) All trucks and trailers are new and be customized to meet all your requirement.
6) All trucks and trailers are with 12 months quality guarantee.
7) CKD and SKD are available.
8) Technical support are provided
