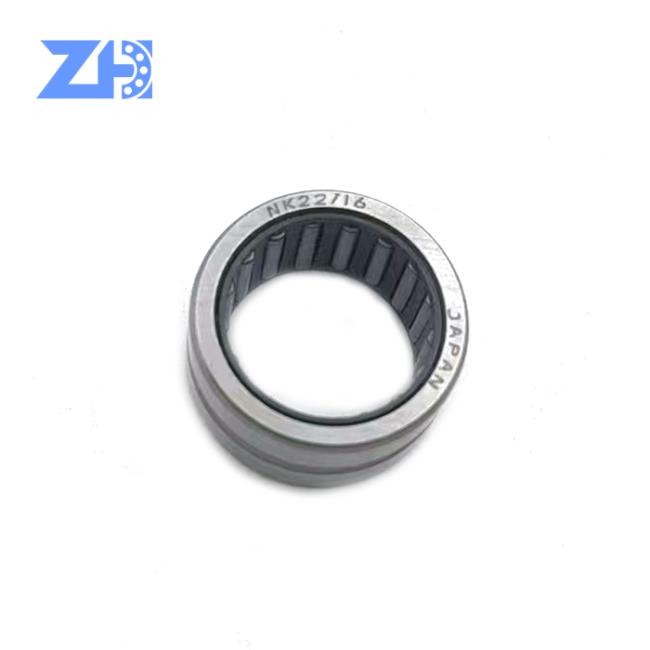

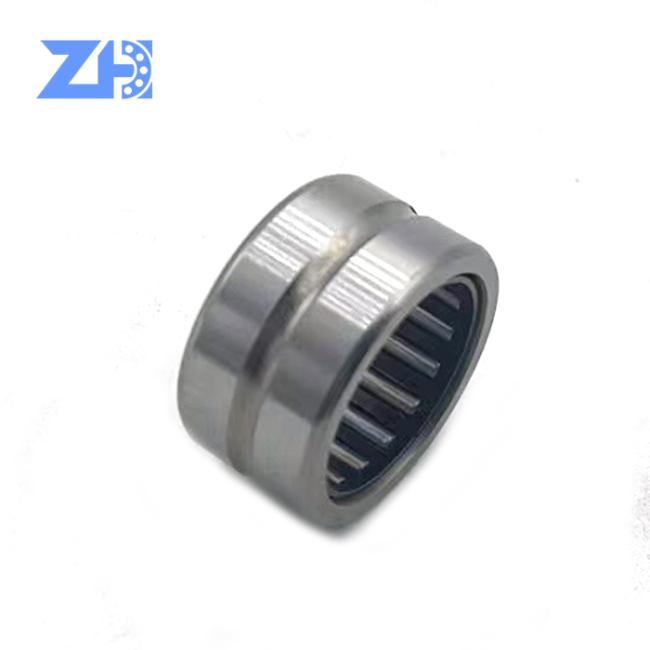

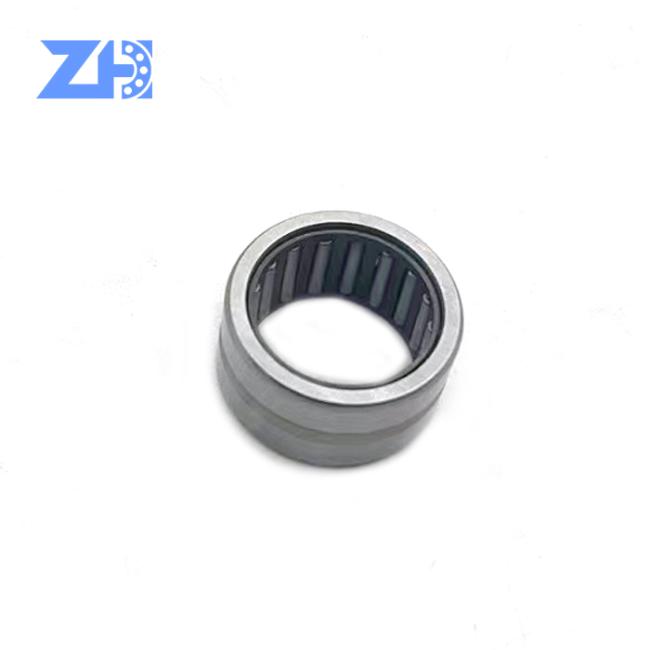

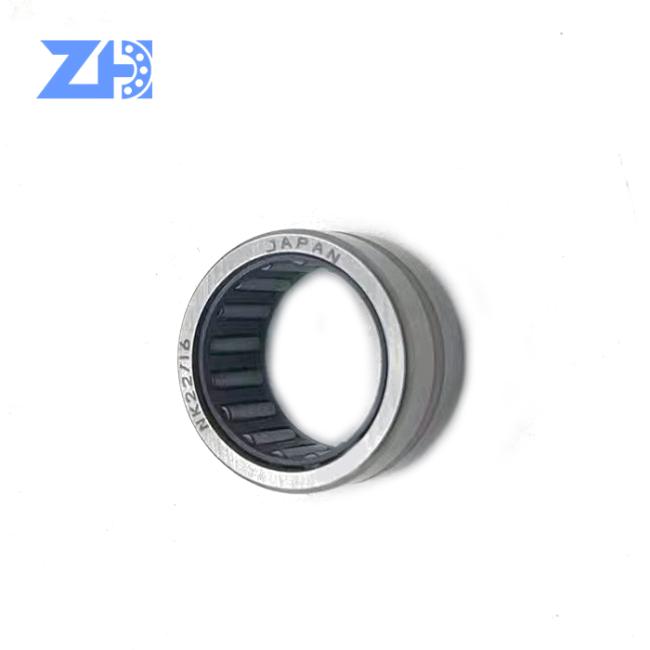

V1 P5 Needle Roller Bearing With Cylindrical NK22/16 Size 22X33X16Mm

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 5-8 work days

Brand: QIEAL ZH

Product Description

Needle Roller Bearings Bearings With Cylindrical NK22/16 Bearing Size 22X33X16 Mm

Product Description

Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. We supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and appliexcavatorions.

Technical parameter

Product name	NK22/16 needle roller bearing
Brand	Z H
FW(mm)	22
D(mm)	30
C(mm)	16
Weight(kg)	0.029
Material	Chrome steel
Precision rate	P0 P6 P4 P5
Delivery time	<5000,within 5 days after payment

Packaging & Shipping

Package	Plastic Tube for bearings, and carton package outside
Shipping	Express,air shipment, and sea shipment are available
Service	OEM Service, and can print your onw logo after authorization

Product Name	High Quality Needle Bearing
Brand	As Your Request
Model Number	NK20/16 0 NK22/16 NK25/16 NK30/20 NK35/20 NK40/20
Ring Material	Steel
Cage Material	Steel only
Precision	P0, P6, P5, P4, P2 or as requested
Vibration	ZV1, ZV2, ZV3, or as requested
Clearance	C0,C2,C3, or as requested
Type	We have all types
Features	Low friction ,Long service life ,Enhanced operational reliability ,Consistency of roller profiles and sizes ,Rigid bearing appliexcavatorion,Running-in period with reduced temperature peaks ,Separable and interchangeable With low and smoothly coefficient of friction and without stick-slip effects Suitable for dirty, corrosion, impact load and edge loading The base material provided a good shock-absorbing capacity Can be used over a large temperature range.
Quality standard	ISO9001:2000 / SGS / CE
Quality Control Process	1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging
Service	OEM or customer logo acceptable
Installation Guide	1. Clean bearings and related components; 2. Check the size of connected components; 3. Installation; 4. Inspection of the bearings after installed; 5. Supply lubricant periodically.
Appliexcavatorion	Used in Precision instrument,low noise machine,automobile,motorcycle,and the general machinery and so on,it is the most widely used bearing type in the machinery industry.

SOME BEARING MODELS

MODEL NO

d(mm)

D(mm)

B(mm)

NA4822	110	140	30
NA4824	120	150	30
NA4826	130	165	35
NA4828	140	175	35
NA4830	150	190	40
NA4832	160	200	40
NA4834	170	215	45
NA4836	180	225	45
NA4838	190	240	50
NA4840	200	250	50
NA4844	220	270	50
NA4848	240	300	60
NA4852	260	320	60
NA4856	280	350	69
NA4860	300	380	80
NA4864	320	400	80
NA4868	340	420	80
NA4872	360	440	80
NA49/22	22	39	17
NA49/28	28	45	17
NA49/32	32	52	20
NA49/5	5	13	10
NA49/6	6	15	10
NA49/7	7	17	10
NA49/8	8	19	11
NA49/9	9	20	11
NA4900	10	22	13
NA4901	12	24	13
NA4902	15	28	13
NA4903	17	30	13
NA4904	20	37	17
NA4905	25	42	17
NA4906	30	47	17
NA4907	35	55	20
NA4908	40	62	22
NA4909	45	68	22
NA4910	50	72	22
NA4911	55	80	25
NA4912	60	85	25
NA4913	65	90	25
NA4914	70	100	30
NA4915	75	105	30
NA4916	80	110	30
NA4917	85	120	35
NA4918	90	125	35
NA4919	95	130	35
NA4920	100	140	40
NA4922	110	150	40
NA4924	120	165	45
NA4926	130	180	50
NA4928	140	190	50
NA69/22	22	39	30
NA69/28	28	45	30
NA69/32	32	52	36
NA6901	12	24	22
NA6902	15	28	23
NA6903	17	30	23
NA6904	20	37	30
NA6905	25	42	30
NA6906	30	47	30
NA6907	35	55	36
NA6908	40	62	40
NA6909	45	68	40
NA6910	50	72	40
NA6911	55	80	45
NA6912	60	85	45
NA6913	65	90	45
NA6914	70	100	54
NA6915	75	105	54
NA6916	80	110	54
NA6917	85	120	63
NA6918	90	125	63
NA6919	95	130	63
NA6920	100	140	71
NK10/12	7	17	12
NK10/16	7	17	16
NK100/26	90	120	26
NK100/36	90	120	36
NK105/26	95	125	26
NK105/36	95	125	36
NK110/30	100	130	30
NK110/40	100	130	40
NK14/16	10	22	16
NK14/20	10	22	20
NK15/16	0	23	16
NK15/20	0	23	20
NK16/16	12	24	16
NK16/20	12	24	20
NK17/16	0	25	16
NK17/20	0	25	20
NK18/16	0	26	16
NK18/20	0	26	20
NK19/16	15	27	16
NK19/20	15	27	20
NK20/16	0	28	16
NK20/20	0	28	20
NK21/16	17	29	16
NK21/20	17	29	20
NK22/16	0	30	16
NK22/20	0	30	20
NK24/16	20	32	16
NK24/20	20	32	20
NK25/16	0	33	16
NK25/20	0	33	20
NK26/16	22	34	16
NK26/20	22	34	20
NK28/20	0	37	20
NK28/30	0	37	30
NK29/20	25	38	20
NK29/30	25	38	30
NK30/20	30	40	20
NK30/30	0	40	30
NK32/20	28	42	20
NK32/30	28	42	30
NK35/20	30	45	20
NK35/30	30	45	30
NK37/20	32	47	20
NK37/30	32	47	30
NK38/20	0	48	20
NK38/30	0	48	30
NK40/20	35	50	20
NK40/30	35	50	30
NK42/20	0	52	20
NK42/30	0	52	30
NK43/20	38	53	20
NK43/30	38	53	30
NK45/20	40	55	20
NK45/30	40	55	30
NK47/20	42	57	20
NK47/30	42	57	30
NK5/10	0	10	10
NK5/12	0	10	12
NK50/25	45	62	25
NK50/35	45	62	35
NK55/25	50	68	25
NK55/35	50	68	35
NK6/10	0	12	10
NK6/12	0	12	12
NK60/25	55	72	25
NK60/35	55	72	35
NK65/25	0	78	25
NK65/35	0	78	35
NK68/25	60	82	25
NK68/35	60	82	35
NK7/10	0	14	10
NK7/12	0	14	12
NK70/25	0	85	25
NK70/35	0	85	35
NK73/25	65	90	25
NK73/35	65	90	35
NK75/25	0	92	25
NK75/35	0	92	35
NK8/12	5	15	12
NK8/16	5	15	16
NK80/25	70	95	25
NK80/35	70	95	35
NK85/25	75	105	25
NK85/35	75	105	35
NK9/12	9	16	12
NK9/16	9	16	16
NK90/25	80	110	25
NK90/35	80	110	35
NK95/26	85	115	26
NK95/36	85	115	36
