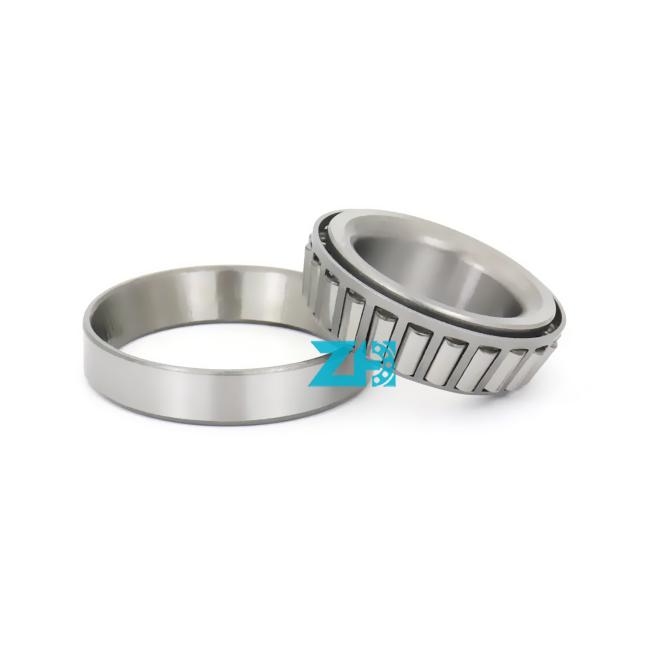

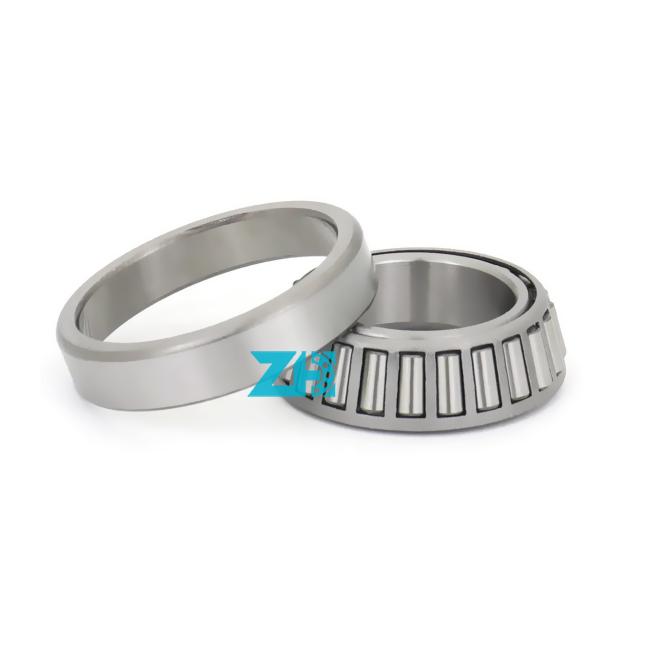

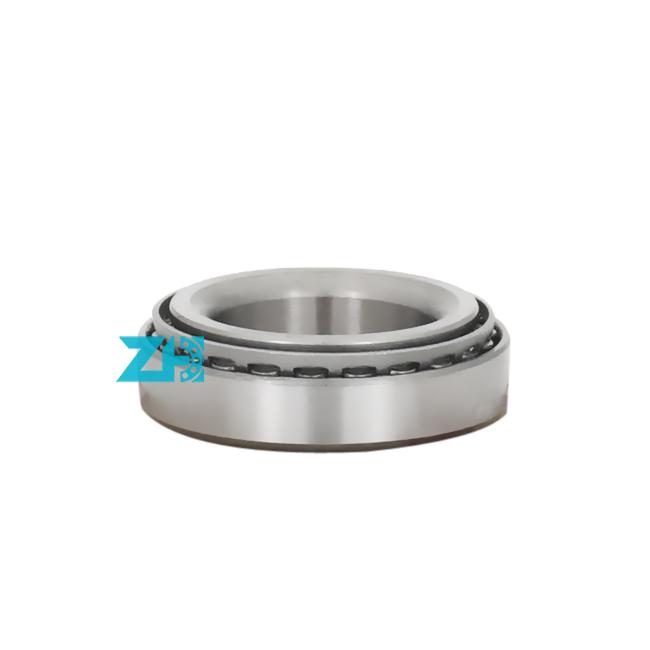

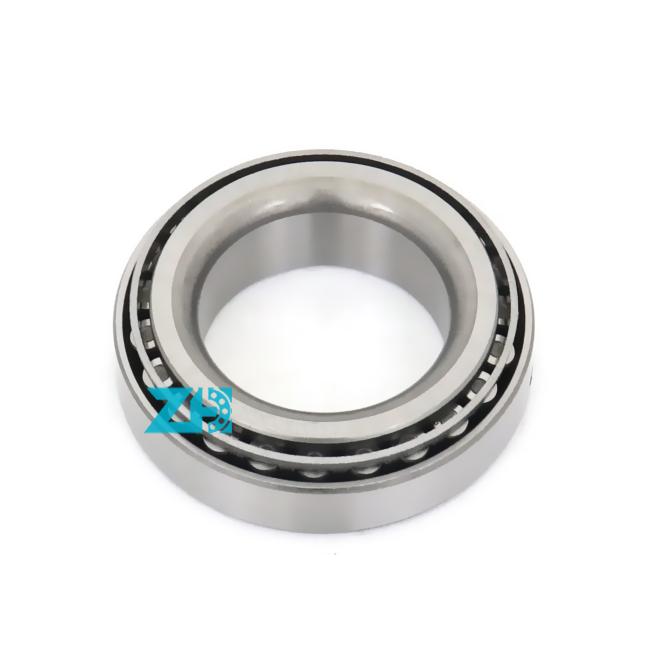

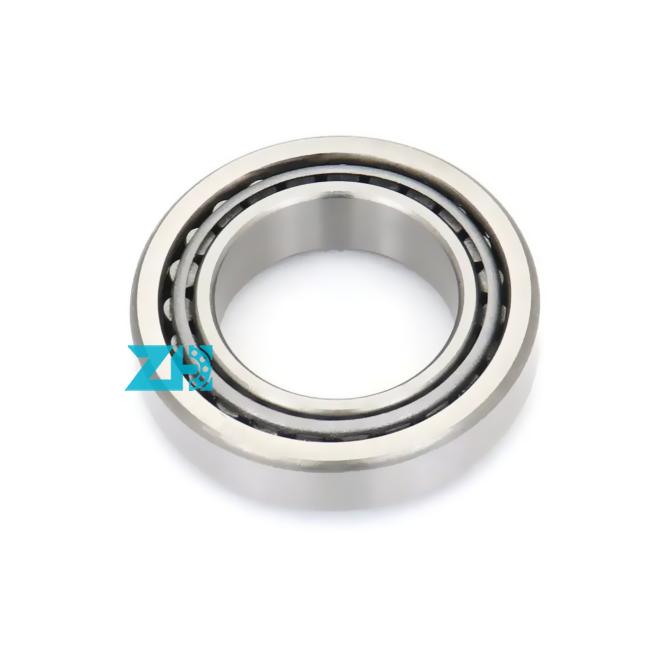

Super Finished Raceways Taper Roller Bearing LM68149/10 LM68149 LM68110
Super finished raceways Tapered Roller Bearings LM68149/10 LM68149 LM68110 single row tapered roller bearing
Tapered Roller Bearings LM68149/10 LM68149 LM68110 excavator walking tooth box bearing
Technical Parameters:
| model | LM68149/10 LM68149 LM68110 |
| Size(d*D*B) | Standard size |
| Type | Taper Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature |
Super finished raceways |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock |
Plentiful |
Product Description
Tapered roller bearings are a type of rolling element bearing commonly used in various applications, including automotive, industrial, and heavy machinery. They are designed to handle both radial and axial loads by utilizing tapered rolling elements (called rollers) that are guided by inner and outer raceways.
Tapered roller bearings consist of two main components: the inner ring (also called the cone) and the outer ring (known as the cup). The inner ring is mounted onto a shaft, while the outer ring is typically fitted into a housing or support structure. The tapered rollers are positioned between the cone and cup, allowing for smooth rolling motion.
Contact Angle: Tapered roller bearings have a specific contact angle between the roller and raceway surfaces. This angle determines the distribution of the load between the rollers and affects the bearing's load-carrying capacity and performance characteristics. The contact angle is typically between 10 and 30 degrees, with larger angles providing higher axial load capacity.
Excavator Bearings Catalog:
| Cone Bearing | Cup Bearing | d(mm) | D(mm) | T(mm) |
| EE107060 | 107105CD | 152.4 | 268.3 | 160.3 |
| EE450601 | 451215CD | 152.4 | 308.0 | 200.0 |
| HH234048 | HH234011CD | 152.4 | 308.0 | 200.0 |
| HH234049 | HH234011CD | 152.4 | 308.0 | 200.0 |
| 81606 | 81963CD | 154.0 | 244.5 | 108.0 |
| 46780 | 46720CD | 158.8 | 225.4 | 85.7 |
| 81629 | 81963CD | 160.0 | 244.5 | 108.0 |
| 81630 | 81963CD | 160.0 | 244.5 | 108.0 |
| HM237532 | HM237510CD | 160.3 | 288.9 | 142.9 |
| 46790 | 46720CD | 165.1 | 225.4 | 85.7 |
| 67780 | 67720CD | 165.1 | 247.7 | 103.2 |
| M235145 | M235113CD | 165.1 | 254.0 | 101.6 |
| 94649 | 94114CD | 165.1 | 288.9 | 142.9 |
| HM237535 | HM237510CD | 165.1 | 288.9 | 142.9 |
| 46792 | 46720CD | 166.7 | 225.4 | 85.7 |
| 67782 | 67720CD | 168.3 | 247.7 | 103.2 |
| M235149 | M235113CD | 170.0 | 254.0 | 101.6 |
| 94675 | 94114CD | 171.5 | 288.9 | 142.9 |
| 67786 | 67720CD | 174.6 | 247.7 | 103.2 |
| 67787 | 67720CD | 174.6 | 247.7 | 103.2 |
| 94687 | 94114CD | 174.6 | 288.9 | 142.9 |
| HM237542 | HM237510CD | 174.6 | 288.9 | 142.9 |
| 36990 | 36920CD | 177.8 | 227.0 | 66.7 |
| 67790 | 67720CD | 177.8 | 247.7 | 103.2 |
| 67791 | 67720CD | 177.8 | 247.7 | 103.2 |
| M238840 | M238810CD | 177.8 | 269.9 | 119.1 |
| 94700 | 94114CD | 177.8 | 288.9 | 142.9 |
| HM237545 | HM237510CD | 177.8 | 288.9 | 142.9 |
| HM237545H | HM237510CD | 177.8 | 288.9 | 142.9 |
| EE222070 | 222127CD | 177.8 | 320.7 | 185.7 |
| H239640 | H239612CD | 177.8 | 320.7 | 185.7 |
| 93708 | 93127CD | 180.0 | 317.5 | 146.1 |
| 67883 | 67820CD | 184.2 | 266.7 | 103.2 |
| 67884 | 67820CD | 187.3 | 266.7 | 103.2 |
| M238849 | M238810CD | 187.3 | 269.9 | 119.1 |
| H239649 | H239612CD | 187.3 | 320.7 | 185.7 |
| 67885 | 67820CD | 190.5 | 266.7 | 103.2 |
| 93750 | 93127CD | 190.5 | 317.5 | 146.1 |
| EE420751 | 421451CD | 190.5 | 368.3 | 193.7 |
| 67887 | 67820CD | 192.1 | 266.7 | 103.2 |
| LM739749 | LM739710CD | 196.9 | 257.2 | 85.7 |
