Cylinder bearing roller 544740A SIZE 24x38.7x17MM double row spherical roller bearing large roller bearings

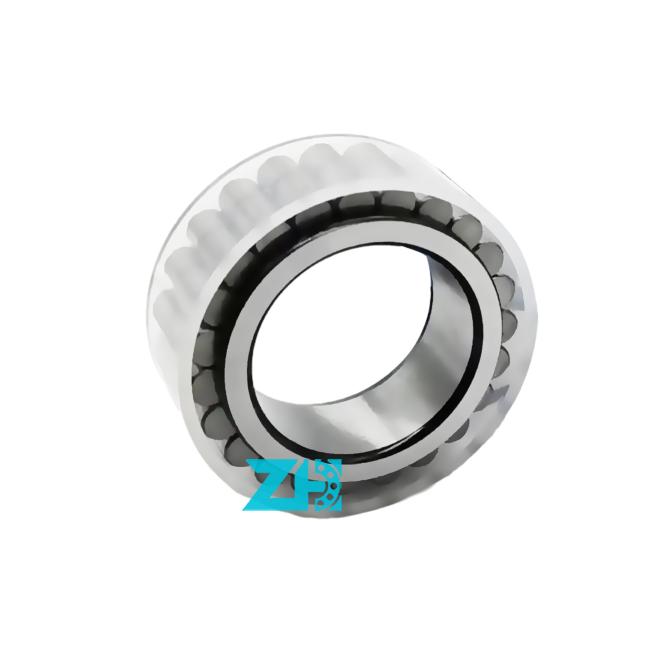

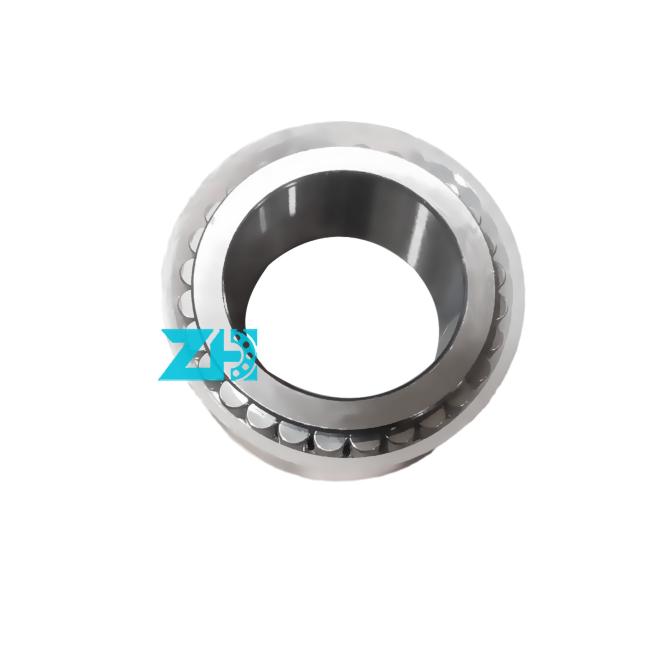

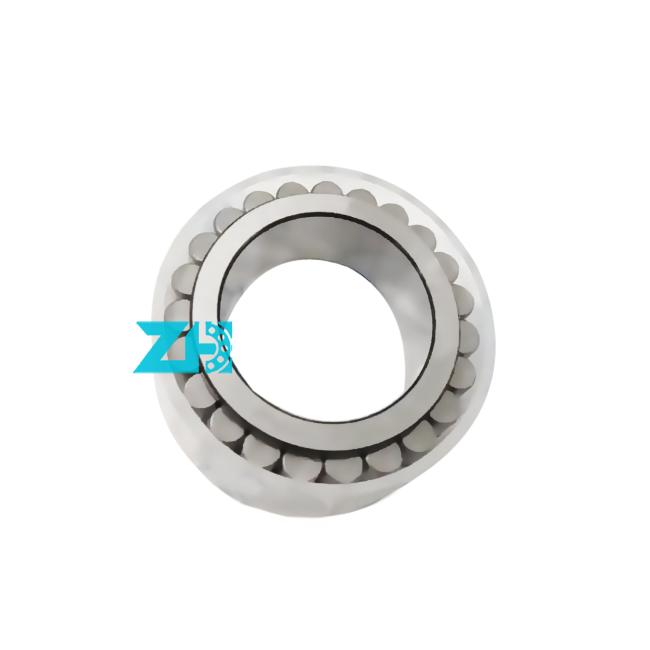

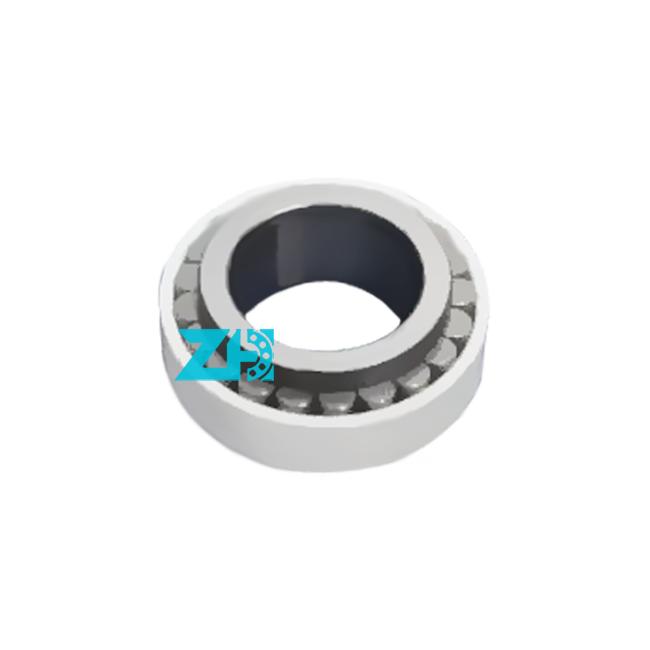

544740A Cylindrical Roller Bearing Size
Technical Parameters:
| model | 544740A |
| Size(d*D*B) |
24x38.7x17mm |
| Type | Cylindrical Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Precision And Load Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
A cylindrical roller bearing is a type of rolling element bearing that consists of cylindrical rollers held in place between inner and outer rings. These bearings are designed to handle high radial loads and moderate axial loads in both directions. They have a larger contact area compared to ball bearings, allowing them to distribute the load evenly and provide high radial stiffness.
When a cylindrical roller bearing fails prematurely, it is important to conduct a failure analysis to determine the root cause. Failure analysis may involve examining the bearing and its components, as well as reviewing operating conditions, lubrication practices, and installation procedures. Identifying the cause of failure helps in implementing corrective actions to prevent recurrence.
Cylindrical roller bearings have specific variations and designs to meet the unique requirements of certain applications. For example, in high-precision machine tool spindles, super-precision cylindrical roller bearings are employed to provide exceptional accuracy and rigidity. Similarly, in aerospace applications, specialized aerospace-grade cylindrical roller bearings are used to withstand extreme operating conditions.
Excavator Bearings Catalog:
| Model | Size (MM) | Weight (KG) | Model | Size (MM) |
Weight (KG) |
| F-202578 | 35.5*57*22 | 0.2 | F-56718 | 40*80*23 | 0.5 |
| F-202808 | 50-90*27 | 0.37 | 76-592708-M1 | 40*78*23 | 0.5 |
| F-202969 | 38*60*26 | 0.27 | BC1B320785 | 40*90*23 | 0.75 |
| F-202703 | 35*67*21 | 0.33 | BCB320784A | 40*80*23 | 0.5 |
| F-202577 | 30.77*48*18.5 | 0.1 | F-201381 | 38.6*68*30 | 0.5 |
| F-202626 | 20*28*14.5 | 0.03 | F-232169 | 38.1*67*21 | 0.3 |
| F-202168 | 28.6*44*17 | 0.1 | F-222094.2 | 70*125*36 | 1.68 |
| F-201872 | 45*85*25 | 0.6 | F-84874 | 35*62*20 | 0.3 |
| F-217041.1 | 38.2*63*27 | F-201209 | 35*73*23.7 | 0.52 | |
| F-217040.1 | 55*100*31 | F-205045 | 33*52*20 | 0.22 | |
| F-221321.1 | 49.55*80*32 | 0.6 | F-204864 | 31.8*52*22 | 0.27 |
| F-201346 | 50*90*23 | 0.5 | F-201380 | 30.4*52*22 | 0.2 |
| F-207813 | 52*106*35 | 1.2 | F-57063 | 29*47*20 | 0.15 |
| F-209285 | 48*98*34 | 1.24 | F-202965 | 38*60*26 | 0.27 |
| F-94480 | 60*110*128 | 1 | F-203740 | 25*54*21 | 0.25 |
| F-207407 | 65*120*33 | 1.5 | F-202972 | 24.8*39*17 | 0.07 |
| F-22094.2 | 70*125*36 | 1.68 | F-58787 | 24.83*41*17 | 0.1 |
| F-94196 | 60*130*31.06 | 2.1 | F-57491 | 22.3*36*17 | 0.1 |
| F-204781 | 52*106*35 | 1.2 | 10-5319 | 26.7*43*18.4 | 0.1 |
| F-235793 | 41.28*66*27 | 0.4 | PLC44-203 SH | 25*54*21 | 0.25 |
| F-204754 | 41.8*72*30 | 0.5 | PLC55-200-1 | 50*72.1*31 | 0.4 |
| F-205526 | 41.36*67*27 | 0.35 | BC1B320784A | 40*80*23 | 0.5 |
| 10-8032 | 40*64*27 | 0.32 | BC1B320785 | 40*90*23 | 0.75 |
| F-224580 | 42*80*23 | 0.55 | 103-2560 | 40*64*27 | 0.33 |
| 10-8032 | 40*64*27 | 0.32 | 76-592708-M1 | 40*78*23 | 0.5 |
| RNUP709V | 35*72*19 | 0.4 |
Support and Services:
Technical Support and Service for Tapered Roller Bearings We are committed to providing our customers with the best technical support and service for their tapered roller bearing needs. We have a variety of parts and consumable supply options to meet the needs of any specific application. We are committed to providing the highest quality customer service and satisfaction. If you have any questions or need assistance with tapered roller bearings, please feel free to contact us.
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port.
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! !
- All products undergo quality inspection before entering the market;
- All product packaging and MOQ will try our best to meet the actual requirements and needs of customers;
- All kinds of express delivery as you choose, whatever by sea, Fed Express, DHL, TNT, EMS or others.
